Solar PV Analysis of Garland, United States
Located at a latitude of 32.9569 and longitude of -96.6746, the city of Garland in the United States is well-suited for solar photovoltaic (PV) energy generation, with considerable sunlight exposure throughout the year. The summer season is particularly productive, yielding an average of 6.86 kWh per day per kW of installed solar capacity due to extended daylight hours and elevated temperatures which intensify the sun's rays.
The autumn season sees a reduction in solar output to an average of 4.96 kWh per day per kW installed, owing to shorter daylight hours and lower sun intensity as compared to summer. Winter months produce even less power averaging around 3.06 kWh per day per kW installed, due to decreased daylight hours and weaker sunlight intensity caused by the sun's lower position in the sky.
In contrast, spring brings about a rise in solar production with an average yield of 5.34 kWh/day/kW installed as daylight hours increase and temperatures start climbing again after winter.
At this location, for fixed panel installations without tracking systems, tilting panels at an angle of approximately 29 degrees towards South optimizes their exposure to direct sunlight throughout different seasons ensuring optimal energy production.
Despite these favorable conditions for solar power generation in Garland city overall, it's important to consider potential environmental factors that may impede optimal performance such as extreme heat or heavy rainfall associated with its Northern Sub Tropics location; both can affect panel efficiency if they occur too frequently or intensively.
Preventative measures against these challenges could include installing cooling systems or protective coatings on panels against extreme heat while ensuring proper water drainage systems are put into place during installation can help mitigate effects from heavy rainfall periods by preventing water accumulation which could damage panels or reduce their efficiency over time.
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in the United States by location

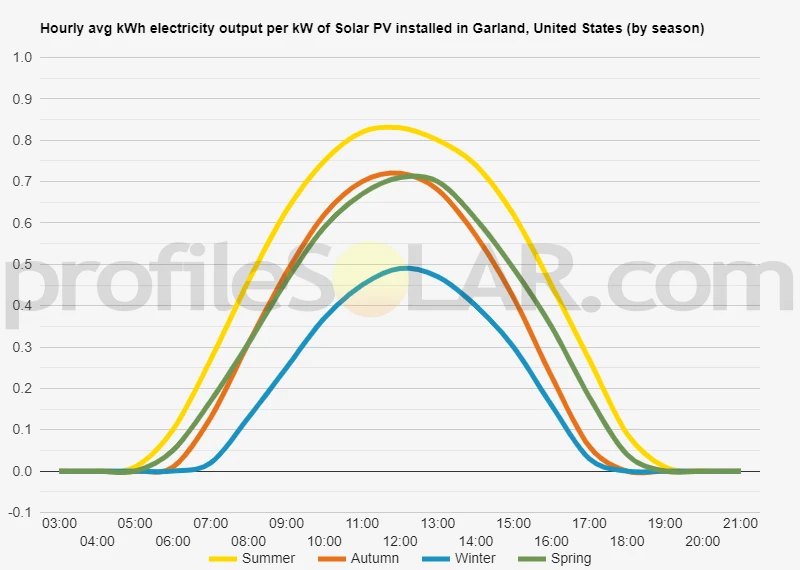

Solar output per kW of installed solar PV by season in Garland
Seasonal solar PV output for Latitude: 32.9569, Longitude: -96.6746 (Garland, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 29° South in Garland, United States
To maximize your solar PV system's energy output in Garland, United States (Lat/Long 32.9569, -96.6746) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Garland, United States
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Garland, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 17° South in Summer | 38° South in Autumn | 48° South in Winter | 27° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Garland, United States
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Garland, United States.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Garland, United States
The topography around Garland, United States is generally flat. Areas that would be most suited to large-scale solar PV are open fields and rooftops with unobstructed access to direct sunlight. The nearby areas of Rowlett, Mesquite, Sachse, and Wylie have plenty of open land and rooftops that could be used for solar PV installations.
United States solar PV Stats as a country
United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United States?
Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
