Solar Energy Potential in Gibsonia, Pennsylvania

Gibsonia, Pennsylvania, located in the Northern Temperate Zone, offers moderate potential for solar energy generation through photovoltaic (PV) systems, though with significant seasonal variations. This location experiences distinct energy production patterns throughout the year that potential solar adopters should consider.

Seasonal Solar Production

The solar energy output in Gibsonia varies considerably across seasons:

• Summer: 6.07 kWh per day per kW installed capacity
• Spring: 5.19 kWh per day per kW installed capacity
• Autumn: 3.35 kWh per day per kW installed capacity
• Winter: 1.81 kWh per day per kW installed capacity

This pattern shows that summer months provide more than three times the energy generation compared to winter months. Spring offers the second-best production period, with autumn falling somewhere in the middle range.

Optimal Panel Installation

For a fixed panel installation in Gibsonia, the ideal angle to maximize year-round solar production is 35 degrees facing South. This tilt angle represents the best compromise to capture adequate sunlight across all seasons, accounting for the sun's changing position throughout the year.

Environmental and Weather Considerations

Several local factors in Gibsonia may impact solar energy production: Western Pennsylvania experiences significant snowfall during winter months, which can temporarily cover panels and reduce output during already low-production periods. Installing panels at the recommended 35-degree tilt helps with natural snow shedding, though manual clearing may occasionally be necessary. The region also experiences approximately 160 days of precipitation annually, including frequent cloud cover, particularly during winter. This contributes to the lower winter production figures and suggests that system sizing should account for these reduced-output periods. Tree coverage in suburban Gibsonia neighborhoods can cast shadows on potential installation sites. A thorough shade analysis before installation is recommended to identify optimal placement and potential trimming needs.

Maximizing Production

Despite these challenges, several strategies can enhance solar performance in Gibsonia: Regular panel cleaning, especially after winter storms or during pollen season, can maintain optimal efficiency. Consider snow-removal tools designed specifically for solar panels to avoid damage. Slightly oversizing the system can help compensate for the lower winter production while taking advantage of excellent summer conditions. Battery storage solutions are particularly valuable in this location to balance the significant seasonal production differences. The substantial difference between summer and winter production suggests that net metering programs (if available) would be especially beneficial for Gibsonia residents, allowing excess summer generation to offset winter utility costs.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

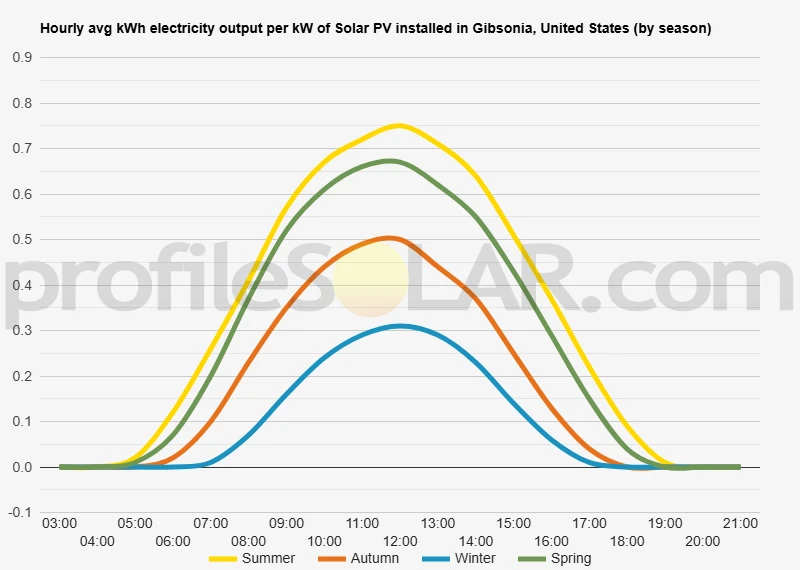

Solar output per kW of installed solar PV by season in Gibsonia

Seasonal solar PV output for Latitude: 40.6191, Longitude: -79.9617 (Gibsonia, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Gibsonia, United States

To maximize your solar PV system's energy output in Gibsonia, United States (Lat/Long 40.6191, -79.9617) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Gibsonia, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gibsonia, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	55° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gibsonia, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gibsonia, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gibsonia, United States

Gibsonia, located in western Pennsylvania, sits within the Allegheny Plateau region, characterized by a distinctly rolling landscape with moderate hills and shallow valleys. The terrain around this suburban community features elevation changes typically ranging between 1000 and 1400 feet above sea level, creating a gently undulating topography rather than dramatic relief. The area contains numerous small streams and drainage channels that have carved modest valleys throughout the region, contributing to the varied terrain. The landscape surrounding Gibsonia combines developed suburban areas with patches of woodland and small agricultural plots. Natural vegetation consists primarily of deciduous forest, though much of the original forest cover has been cleared for residential development and farming over the centuries. These human modifications have created a patchwork of open spaces, wooded areas, and developed land.

Potential Solar PV Development Areas

Several factors make certain areas around Gibsonia more suitable for large-scale solar photovoltaic development than others. The most promising locations include: The relatively flat hilltops and plateaus north and northwest of Gibsonia offer favorable conditions for solar installations. These elevated areas experience less shadowing from surrounding terrain and vegetation, maximizing potential solar exposure throughout the day. Additionally, some former agricultural lands in these areas provide already-cleared spaces that would require minimal site preparation. South-facing slopes throughout the region present particularly advantageous positions for solar arrays. These naturally angled surfaces receive more direct sunlight throughout the year compared to flat terrain, potentially increasing energy production efficiency. Several such slopes can be found in the rural areas surrounding Gibsonia, particularly in the less developed regions to the north. The terrain southwest of Gibsonia, extending toward Pittsburgh's northern suburbs, includes several broad, open areas where the topography levels out somewhat. These locations combine adequate drainage with minimal shadowing from surrounding features, creating practical conditions for large installations. When considering large-scale solar development in this region, the moderate hills present both challenges and opportunities. While some grading may be necessary to create suitable installation surfaces, the varied topography also allows for creative array positioning to maximize exposure. The mixed land use pattern means that careful site selection is essential, focusing on areas that minimize impacts on residential communities while utilizing land with limited alternative economic uses.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
