Gilbertsville, Pennsylvania, located in the Northern Temperate Zone, presents a moderately favorable location for year-round solar photovoltaic energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the strongest performance at 5.96 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 5.32 kWh per day per kW, offering nearly comparable output to summer months. Autumn shows a notable decline in solar production, dropping to 3.37 kWh per day per kW of installed capacity. Winter presents the most challenging conditions for solar generation, with output falling to just 2.11 kWh per day per kW, representing roughly one-third of summer production levels.

Optimal Installation Configuration

For maximum year-round solar energy production at Gilbertsville, fixed solar panels should be installed at a 35-degree tilt angle facing south. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year, determining optimal panel positioning for each day, and weighting these angles based on actual solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several environmental and weather factors in the Gilbertsville area can significantly impact solar energy production:

• Snow accumulation during winter months can completely block solar panels
• Ice formation creates both production barriers and safety hazards
• Deciduous tree leaf coverage increases substantially during spring and summer
• Regional humidity levels can reduce solar irradiance
• Frequent cloud cover during certain seasons limits direct sunlight

Preventative Installation Measures

Several strategic measures can help maximize solar energy production despite these environmental challenges. Installing panels at the recommended 35-degree tilt angle not only optimizes sun exposure but also promotes natural snow and ice shedding, reducing winter maintenance requirements. Careful site selection proves crucial for long-term performance. Solar installations should be positioned away from deciduous trees or areas where future tree growth might create shading issues. When complete tree avoidance isn't possible, strategic tree trimming or removal may be necessary to maintain optimal solar access. Panel mounting systems should be designed to handle local snow loads and ice formation. Higher-quality mounting hardware and proper structural engineering help ensure panels remain secure and functional throughout Pennsylvania's variable weather conditions. Regular maintenance scheduling becomes particularly important during autumn and winter months. Prompt snow removal after major storms and periodic cleaning to remove accumulated debris, leaves, and ice will help maintain energy production during the already challenging low-output winter season. Installing monitoring systems allows homeowners to quickly identify when panels aren't performing optimally, enabling faster response to weather-related production issues and ensuring maximum energy generation year-round.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

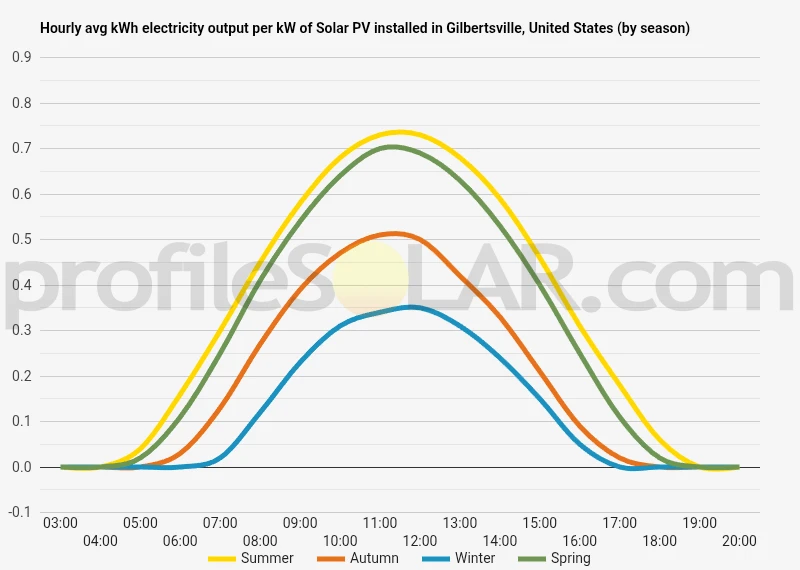

Solar output per kW of installed solar PV by season in Gilbertsville

Seasonal solar PV output for Latitude: 40.3201, Longitude: -75.6102 (Gilbertsville, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Gilbertsville, United States

To maximize your solar PV system's energy output in Gilbertsville, United States (Lat/Long 40.3201, -75.6102) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Gilbertsville, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gilbertsville, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gilbertsville, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gilbertsville, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gilbertsville, United States

Gilbertsville sits in the rolling hills of southeastern Pennsylvania, positioned within the northern reaches of Montgomery County near the Berks County border. The terrain in this region is characterized by gentle undulating hills and shallow valleys that are typical of the Piedmont physiographic province. The landscape represents a transitional zone between the flatter coastal plains to the southeast and the more rugged Appalachian foothills to the northwest. The immediate area around Gilbertsville features relatively modest elevation changes, with hills rarely exceeding 500 feet above sea level. The topography consists primarily of rounded ridges separated by broad, shallow valleys carved by small streams and tributaries. This gently rolling terrain creates a patchwork of slopes with varying orientations, though many areas maintain gradual gradients that are well-suited for development and agricultural use.

Drainage and Waterways

The region is drained by several small creeks and streams that flow generally in a southeastern direction toward the Schuylkill River. These waterways have created modest valleys throughout the area, resulting in a landscape of low ridges and gentle depressions. The drainage patterns have influenced the local topography, creating natural corridors and relatively flat bottomland areas alongside the watercourses.

Soil and Geological Characteristics

The underlying geology consists primarily of metamorphic rocks, including schist and gneiss formations that are common throughout this part of Pennsylvania. These geological foundations have weathered over time to create generally stable soils that support both agricultural activities and development. The terrain shows evidence of past glacial influence, though the area was not directly glaciated, resulting in a landscape that lacks the dramatic relief found in more mountainous regions.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Gilbertsville would be the broader hilltops and ridge areas that offer relatively flat to gently sloping terrain with southern exposures. These elevated areas typically provide the best combination of suitable grades for panel installation and minimal shading from surrounding topographic features. The ridge systems running in an east-west orientation would be particularly advantageous, as their southern-facing slopes naturally provide optimal positioning for solar collectors. Areas with slopes between 0 and 15 degrees would be most cost-effective for large installations, as steeper grades require more complex mounting systems and grading work. Agricultural fields on the broader valley floors and gentle hillsides also present excellent opportunities for solar development. These areas often feature relatively level terrain that has already been cleared and maintained, reducing preparation costs. The existing agricultural parcels tend to be of sufficient size to accommodate utility-scale solar arrays while maintaining efficient layouts. The areas immediately south and southwest of Gilbertsville appear particularly well-suited for solar development due to their combination of appropriate topography and existing land use patterns. These locations offer the dual advantages of suitable terrain and proximity to existing electrical infrastructure, which is crucial for connecting large solar installations to the power grid.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
