Glen Ellyn, Illinois, located in the Northern Temperate Zone, offers a moderate potential for solar energy generation throughout the year. The location's solar production varies significantly across seasons, with peak performance during summer months and reduced output in winter.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 6.25 kWh per day for each kilowatt of installed solar capacity. Spring follows closely, generating 5.29 kWh/day. Autumn sees a noticeable decline to 3.39 kWh/day, while winter experiences the lowest output at 2.35 kWh/day.

These figures indicate that Glen Ellyn's solar potential is strongest from late spring through early fall. During this period, longer days and higher sun angles contribute to increased energy production. However, the substantial drop in winter output suggests that supplementary energy sources may be necessary during colder months.

Optimal Panel Installation

To maximize year-round solar production in Glen Ellyn, fixed solar panels should be installed at a 36-degree tilt angle facing south. This orientation helps optimize energy capture across all seasons, balancing the high summer sun with lower winter sun angles.

Environmental and Weather Considerations

Several factors in Glen Ellyn can impact solar energy production:

• Snowfall: Winter accumulation can temporarily reduce panel efficiency.
• Cloud cover: The region experiences frequent cloudy days, particularly in winter.

To mitigate these issues, consider installing panels at a steeper angle to encourage snow sliding off. Additionally, use high-efficiency panels and micro-inverters to maximize production during cloudy periods. Regular panel cleaning and maintenance can also help ensure optimal performance year-round.

While Glen Ellyn may not be ideal for solar production compared to sunnier locations, it still offers substantial potential, especially during summer months. With proper installation and maintenance, solar energy can be a valuable component of a diversified energy strategy in this Illinois community.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

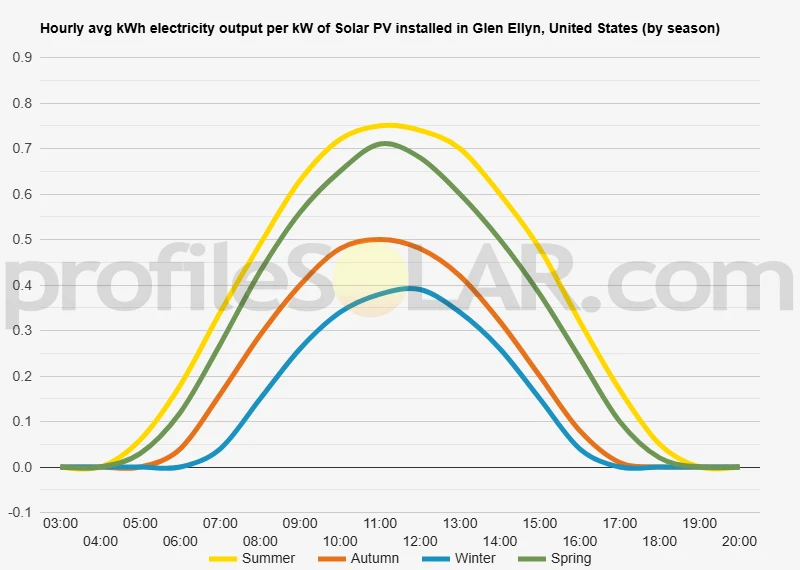

Solar output per kW of installed solar PV by season in Glen Ellyn

Seasonal solar PV output for Latitude: 41.864, Longitude: -88.0671 (Glen Ellyn, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Glen Ellyn, United States

To maximize your solar PV system's energy output in Glen Ellyn, United States (Lat/Long 41.864, -88.0671) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Glen Ellyn, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Glen Ellyn, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	45° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Glen Ellyn, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Glen Ellyn, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Glen Ellyn, United States

Glen Ellyn, located in DuPage County, Illinois, is situated in a region characterized by gently rolling terrain typical of the Midwest United States. The topography of the area surrounding Glen Ellyn is predominantly flat to slightly undulating, with subtle variations in elevation. This landscape is a result of glacial activity during the last ice age, which left behind a mix of glacial till and outwash plains. The area around Glen Ellyn features a combination of urban development, suburban neighborhoods, and pockets of natural areas. The terrain is punctuated by small hills and shallow depressions, with elevations generally ranging from about 700 to 800 feet above sea level. Several small creeks and streams meander through the region, contributing to the subtle variations in the landscape.

Potential for Large-Scale Solar PV

While the topography around Glen Ellyn is not particularly challenging for solar panel installation, the area's suitability for large-scale solar PV projects is somewhat limited due to its urban and suburban nature. However, there are a few areas nearby that could potentially accommodate such installations: Former agricultural lands to the west and southwest of Glen Ellyn, where open spaces are more abundant, might be suitable for solar farms. These areas tend to have flatter terrain and fewer obstructions, making them ideal for large arrays of solar panels. Brownfield sites or former industrial areas in neighboring communities could be repurposed for solar energy production. These locations often have the advantage of existing infrastructure and minimal environmental impact. Large commercial or institutional rooftops in the surrounding suburbs could be utilized for sizeable solar installations. While not technically "large-scale," these distributed solar projects could collectively contribute significant energy production. It's important to note that any large-scale solar PV project in this region would need to carefully consider factors such as local zoning regulations, proximity to power infrastructure, and potential impacts on residential areas. Additionally, the relatively modest solar resources in this part of Illinois compared to sunnier regions of the country may influence the economic viability of large-scale solar projects.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
