Graettinger, Iowa presents a moderately favorable location for solar energy generation, though it faces some typical challenges of the Northern Temperate Zone climate. The solar output varies significantly throughout the year, with summer being the most productive season and winter showing the lowest energy generation potential.

Seasonal Solar Performance

Summer months deliver the strongest solar performance at 6.93 kWh per day per kW of installed capacity, making this the ideal time for solar energy generation. Spring follows as the second-best season with 5.24 kWh per day per kW, while autumn drops to 3.48 kWh per day per kW. Winter presents the most challenging conditions with only 2.41 kWh per day per kW of production. For maximum year-round energy production from a fixed panel installation at this location, solar panels should be tilted at 37 degrees facing south. This angle optimizes the total annual solar output by accounting for the sun's changing position throughout the seasons.

Local Factors Affecting Solar Production

Several environmental and weather factors in Graettinger could impact solar energy generation:

• Snow accumulation during winter months can cover panels and block sunlight
• Ice formation on panels reduces efficiency and can cause temporary shading
• Frequent cloud cover and overcast skies, particularly during autumn and winter
• High humidity levels that can create haze and reduce solar irradiance
• Strong winds that may carry dust, pollen, or agricultural debris onto panel surfaces

Preventative Measures for Better Performance

Several installation strategies can help maximize solar production despite these challenges: Installing panels at the optimal 37-degree tilt angle not only maximizes energy capture but also helps snow slide off more easily. Ensuring adequate spacing between panel rows prevents snow buildup and allows for better air circulation. Regular maintenance becomes particularly important in this location. This includes periodic cleaning to remove dust, pollen, and agricultural debris that can accumulate on panel surfaces. Installing monitoring systems helps identify when panels need cleaning or when snow removal is necessary. Choosing high-quality panels with anti-reflective coatings can help maintain efficiency during overcast conditions. Additionally, selecting panels with good low-light performance characteristics will help capture more energy during the frequent cloudy periods common in Iowa's climate. Proper electrical system design with optimizers or microinverters can help minimize the impact of partial shading from snow or debris, ensuring that clean panels continue producing energy even when others are temporarily blocked.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

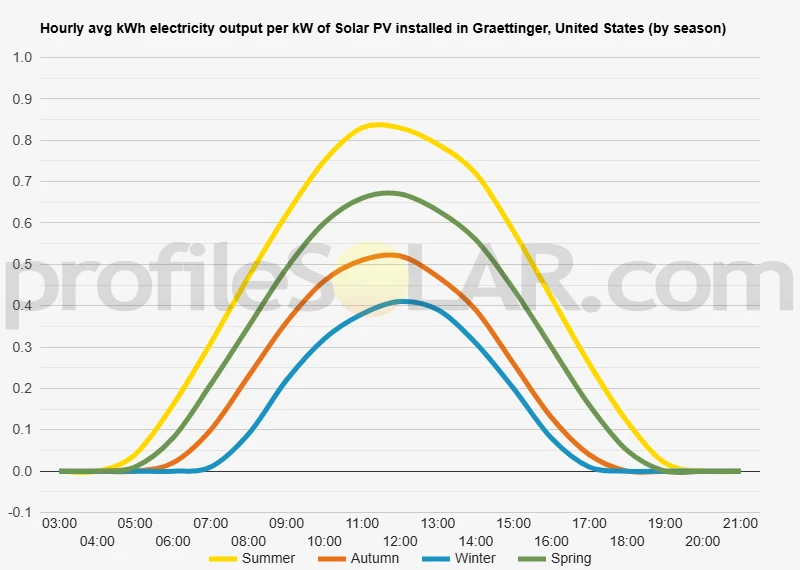

Solar output per kW of installed solar PV by season in Graettinger

Seasonal solar PV output for Latitude: 43.2377, Longitude: -94.7514 (Graettinger, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in Graettinger, United States

To maximize your solar PV system's energy output in Graettinger, United States (Lat/Long 43.2377, -94.7514) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Graettinger, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Graettinger, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	47° South in Autumn	57° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Graettinger, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Graettinger, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Graettinger, United States

Topographical Features of the Graettinger Region

The landscape surrounding Graettinger, Iowa is characterized by the gently rolling terrain typical of the upper Midwest prairie region. This area sits within the Des Moines Lobe, a geological formation created by glacial activity during the last ice age. The topography consists of relatively flat to moderately undulating farmland with subtle elevation changes that rarely exceed 50 to 100 feet across several miles. The region features numerous small lakes and wetlands scattered throughout the countryside, remnants of the glacial period that shaped this landscape. These water bodies are interspersed among agricultural fields and create a patchwork of farmland, grassland, and wetland areas. The overall elevation in the Graettinger vicinity ranges from approximately 1,200 to 1,400 feet above sea level, with gradual slopes rather than steep inclines.

Drainage and Water Features

The area's drainage patterns follow the natural contours of the land, with water flowing toward the numerous lakes and eventually into larger watershed systems. Small creeks and seasonal waterways meander through the agricultural landscape, creating minor variations in the otherwise consistent topography. The soil composition is predominantly rich glacial till, which has made this region highly productive for agriculture.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be the extensive flat to gently sloping agricultural areas that dominate the landscape south and west of Graettinger. These areas offer several advantages including minimal grading requirements, excellent accessibility for construction and maintenance equipment, and proximity to existing electrical infrastructure that serves the rural farming community. The slightly elevated areas with southern-facing slopes would be particularly well-suited for solar development, as they provide natural drainage and optimal positioning for solar panel arrays. The relatively open nature of the agricultural landscape means fewer obstacles such as trees or buildings that could create shading issues. Areas to avoid would include the immediate vicinity of the numerous lakes and wetlands, which may have environmental protections or present construction challenges due to saturated soils. The flat agricultural fields that stretch for miles in multiple directions from Graettinger represent ideal conditions for utility-scale solar installations, offering the large contiguous areas necessary for efficient solar farm development. The existing road network throughout the region provides good access to potential solar sites, and the agricultural nature of the land use means that large parcels are already consolidated under individual ownership, potentially simplifying land acquisition processes for solar development projects.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
