Grahamsville, New York presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations typical of its Northern Temperate Zone climate. The solar output data reveals distinct patterns that potential solar installers should carefully consider.

Seasonal Solar Performance

Summer represents the peak solar generation period at this location, producing 5.78 kWh per day per kW of installed solar capacity. This strong summer performance makes it an excellent time for maximizing energy production and potentially selling excess power back to the grid. Spring follows as the second-best season with 5.18 kWh per day per kW, making the period from late March through May highly productive for solar generation. The combination of increasing daylight and favorable weather conditions creates optimal generation circumstances during this time. Autumn shows a notable decline to 3.23 kWh per day per kW, reflecting shorter days and changing weather patterns as the region transitions toward winter. Winter presents the most challenging period with only 1.90 kWh per day per kW, representing less than one-third of summer production levels.

Optimal Panel Configuration

For fixed panel installations at Grahamsville, the ideal tilt angle is 36 degrees facing south to maximize total year-round solar production. This angle has been calculated based on the location's specific latitude and weighted solar irradiance data throughout the year, accounting for Earth's elliptical orbit and seasonal variations.

Environmental and Weather Challenges

Several local factors in the Grahamsville area can significantly impact solar production and require careful consideration during installation planning. Snow accumulation represents the most significant challenge during winter months. The Catskill Mountains region, where Grahamsville is located, receives substantial snowfall that can completely block solar panels for extended periods. When snow covers panels, energy production drops to nearly zero until the snow melts or is removed. To address snow-related issues, panels should be installed at the recommended 36-degree tilt angle, which helps snow slide off more easily than flatter installations. Additionally, leaving adequate spacing between panel rows prevents snow from one row blocking panels behind it. Some installers recommend slightly steeper angles in heavy snow regions, though this may reduce overall annual production. Tree coverage and forest shading pose another significant concern in this heavily wooded region of New York. Even partial shading can dramatically reduce panel output, making careful site selection and tree management essential. Before installation, conduct a thorough shade analysis throughout different seasons, as deciduous trees create varying shade patterns. Consider selective tree removal or trimming, focusing on trees to the south of the installation site. Installing panels on the highest suitable part of a property, such as rooftops rather than ground-mounted systems, often helps avoid ground-level obstructions.

Additional Installation Considerations

The region's variable weather patterns, including frequent cloud cover during certain seasons, contribute to the significant difference between summer and winter production levels. While this cannot be prevented, proper system sizing should account for these seasonal variations. Wind loading from storms common in the area requires robust mounting systems designed for local weather conditions. Ice formation can also affect panel performance and structural integrity, making quality mounting hardware and proper drainage essential for long-term system reliability. Regular maintenance becomes particularly important in this climate, including periodic cleaning and inspection for weather-related damage, especially after severe storms or heavy snow periods.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

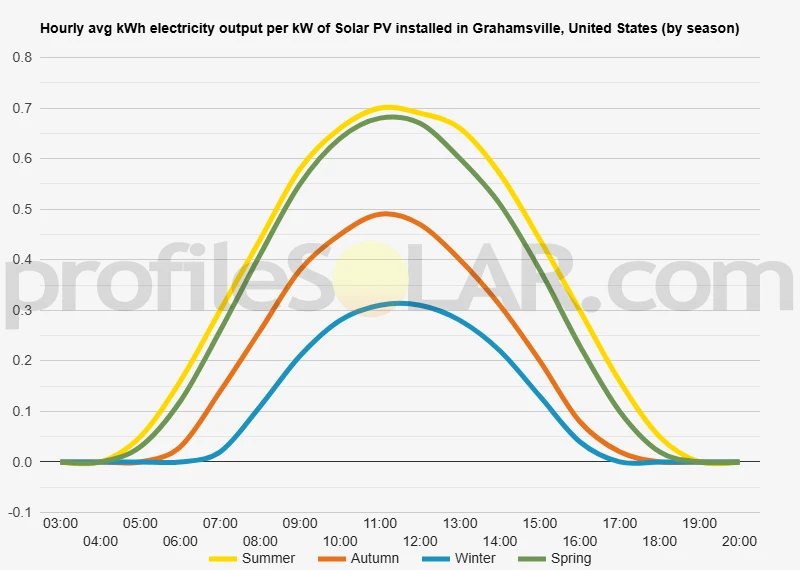

Solar output per kW of installed solar PV by season in Grahamsville

Seasonal solar PV output for Latitude: 41.8479, Longitude: -74.5479 (Grahamsville, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Grahamsville, United States

To maximize your solar PV system's energy output in Grahamsville, United States (Lat/Long 41.8479, -74.5479) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Grahamsville, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Grahamsville, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	46° South in Autumn	57° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Grahamsville, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Grahamsville, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Grahamsville, United States

Topographical Features of Grahamsville

Grahamsville sits in the scenic Hudson Valley region of southeastern New York State, nestled within Sullivan County in the foothills of the Catskill Mountains. The area is characterized by gently rolling hills and valleys, with elevations typically ranging from around 1,200 to 1,800 feet above sea level. The terrain consists of a mix of forested hillsides, open meadows, and agricultural land that has been shaped by glacial activity thousands of years ago. The landscape around Grahamsville features a combination of deciduous and coniferous forests, particularly on the steeper slopes and ridgelines. Many areas have been cleared for farming over the centuries, creating patchworks of open fields interspersed with wooded areas. The region's topography includes numerous small streams and seasonal waterways that flow through the valleys, eventually feeding into larger water bodies including the nearby Neversink Reservoir.

Terrain Characteristics for Solar Development

The rolling nature of the terrain around Grahamsville presents both opportunities and challenges for large-scale solar installations. The area's moderate slopes and varied elevation create microclimates and different exposure angles to the sun throughout the day. South-facing slopes are particularly well-positioned to capture solar radiation, while northern slopes and heavily forested areas would be less suitable for photovoltaic development. The soil composition in the region is generally well-drained, consisting primarily of glacial till and sedimentary deposits. This provides a stable foundation for solar mounting systems, though some areas may require additional geotechnical assessment due to seasonal frost penetration and potential bedrock considerations typical of the broader Catskill region.

Optimal Areas for Large-Scale Solar PV

The most promising locations for large-scale solar photovoltaic installations around Grahamsville would be the open agricultural fields and cleared areas with southern or southwestern exposure. These locations offer the dual advantages of minimal tree clearing requirements and optimal solar orientation. The gently sloping farmland that characterizes much of the valley floors and lower hillsides would be particularly well-suited for solar development. Areas with slopes between 5 and 15 degrees facing south would provide excellent conditions for fixed-tilt solar arrays, while flatter areas could accommodate tracking systems if desired. The cleared agricultural land southeast and southwest of the town center represents some of the most developable terrain, offering substantial acreage with minimal environmental impact. Former agricultural areas that have reverted to grassland also present good opportunities, as they typically have established access roads and electrical infrastructure nearby. These areas often have fewer regulatory constraints compared to forested land and can be developed with minimal site preparation.

Infrastructure and Access Considerations

The road network around Grahamsville consists primarily of state and county routes that wind through the valleys, following the natural contours of the land. This existing infrastructure provides reasonable access to many potential solar sites, though some locations may require new access roads or upgrades to existing farm roads to accommodate construction equipment and ongoing maintenance vehicles. The proximity to existing electrical transmission infrastructure varies throughout the region, with some areas having ready access to distribution lines while others may require significant electrical infrastructure investment. The relatively rural nature of the area means that large solar installations would likely need to consider transmission capacity and grid interconnection requirements carefully during the planning process.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
