Harlingen, Texas, located in the Northern Sub Tropics, offers a generally favorable environment for solar energy production throughout the year. With its geographical coordinates at 26.1966° N latitude and 97.6912° W longitude, this location receives substantial sunlight, making it a promising site for solar PV installations.

Seasonal Solar Performance

The solar energy output in Harlingen varies across seasons, with summer being the most productive period. During the summer months, one can expect an impressive 6.67 kWh per day for each kilowatt of installed solar capacity. Spring and autumn also show strong performance, with 5.40 kWh/day and 5.23 kWh/day respectively. Winter experiences a dip in production, yielding 3.70 kWh/day, which is still considerable compared to many other locations.

Optimal Times for Solar Generation

The most ideal time for solar energy generation in Harlingen is from late spring through early fall. This period, roughly from May to September, offers longer days and more direct sunlight, maximizing the potential of solar PV systems. However, the relatively high output in spring and autumn suggests that solar installations can be productive for a significant portion of the year.

Panel Tilt Angle

For fixed panel installations in Harlingen, the optimal tilt angle to maximize year-round solar production is 23 degrees facing south. This angle is calculated to capture the most sunlight throughout the year, considering the location's latitude and the sun's changing position across seasons.

Environmental and Weather Considerations

While Harlingen's climate is generally conducive to solar energy production, there are some factors to consider:

• Hurricane season: Harlingen's proximity to the Gulf of Mexico makes it vulnerable to hurricanes and tropical storms, typically from June to November. These events can potentially damage solar installations.
• High temperatures: The region's hot summers can slightly reduce solar panel efficiency, as panels tend to perform best in cooler temperatures.

To mitigate these challenges, solar installations in Harlingen should incorporate sturdy mounting systems designed to withstand high winds. Additionally, ensuring proper ventilation behind the panels can help maintain efficiency during hot periods. Regular cleaning may also be necessary to remove any salt spray or dust that could accumulate on the panels, especially given the area's coastal influence.

Overall, Harlingen's location proves to be quite favorable for solar PV energy production, with its abundant sunlight and relatively mild winters offering significant potential for year-round energy generation.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

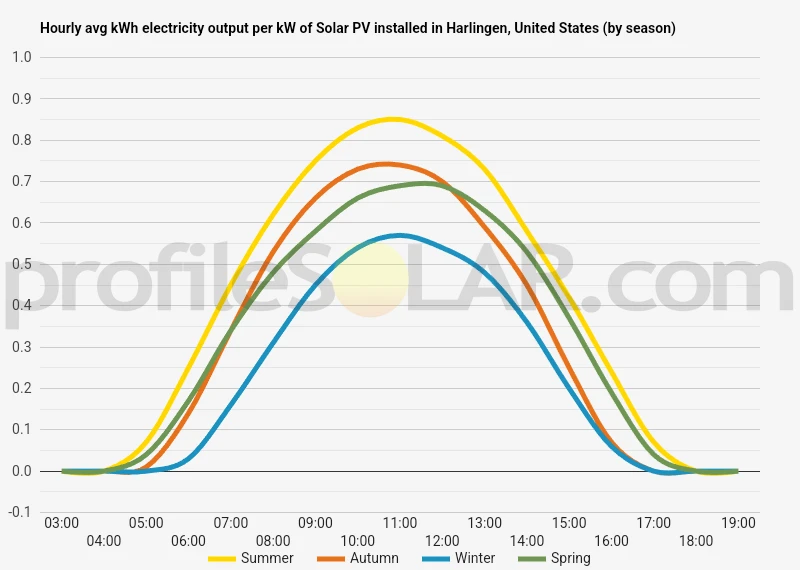

Solar output per kW of installed solar PV by season in Harlingen

Seasonal solar PV output for Latitude: 26.1966, Longitude: -97.6912 (Harlingen, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° South in Harlingen, United States

To maximize your solar PV system's energy output in Harlingen, United States (Lat/Long 26.1966, -97.6912) throughout the year, you should tilt your panels at an angle of 23° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Harlingen, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Harlingen, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	31° South in Autumn	42° South in Winter	19° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Harlingen, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Harlingen, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Harlingen, United States

The topography around Harlingen, Texas, located in the southern part of the state near the Gulf of Mexico, is predominantly flat and low-lying. This area is part of the Rio Grande Valley, characterized by its coastal plain landscape. The terrain is mostly level, with very gentle slopes and minimal elevation changes. The average elevation in Harlingen is only about 40 feet above sea level, reflecting the region's proximity to the coast. The surrounding area consists primarily of agricultural land, interspersed with small urban centers and scattered patches of natural vegetation. To the east of Harlingen, the land gradually transitions into coastal prairies and marshes as it approaches the Gulf of Mexico. The Laguna Madre, a long, shallow lagoon, separates the mainland from South Padre Island, creating a unique coastal ecosystem. Rivers and resacas (former channels of the Rio Grande that have become oxbow lakes) meander through the landscape, adding some subtle variations to the otherwise flat terrain. The Rio Grande itself flows to the south of Harlingen, forming the international border between the United States and Mexico.

Suitability for Large-Scale Solar PV

Given the topography and climate of the Harlingen area, several nearby locations could be well-suited for large-scale solar photovoltaic (PV) installations. The flat, open terrain provides ideal conditions for solar farms, as it minimizes shading issues and simplifies construction. Areas to the west and northwest of Harlingen, where there is more available agricultural land and fewer urban developments, could be particularly suitable for solar PV projects. These locations offer vast, unobstructed spaces that receive ample sunlight throughout the year. The region's subtropical climate, with its abundant sunshine and relatively mild winters, further enhances its potential for solar energy production. However, it's important to note that while the topography is favorable, other factors such as grid connectivity, land ownership, and environmental considerations would also need to be taken into account when selecting specific sites for large-scale solar installations. Additionally, the proximity to the coast means that potential developers would need to consider the risk of hurricanes and storm surges when designing and implementing solar projects in this area.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
