Hinsdale, Illinois, located in the Northern Temperate Zone, offers a varied solar energy potential throughout the year. This location, with coordinates 41.8033° N, 87.9283° W, experiences significant seasonal fluctuations in solar PV electricity output.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 6.25 kWh per day for each kilowatt of installed solar capacity. Spring follows closely, generating 5.26 kWh/day. Autumn sees a considerable drop to 3.32 kWh/day, while winter performance dips to its lowest at 1.99 kWh/day.

The most favorable periods for solar energy generation in Hinsdale are late spring through early fall. During these months, longer daylight hours and higher sun angles contribute to increased solar panel efficiency.

Optimal Panel Installation

For fixed panel installations in Hinsdale, the ideal tilt angle to maximize year-round solar production is 36 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the seasonal variations in sun position.

Environmental Considerations

While Hinsdale's location is generally suitable for solar energy production, there are some environmental factors to consider:

1. Snowfall: Hinsdale experiences significant snowfall in winter, which can temporarily reduce solar panel efficiency. Regular panel cleaning or the installation of snow-shedding systems can mitigate this issue.
2. Cloud cover: The region has frequent cloud cover, particularly in late fall and winter. Using high-efficiency panels can help maximize energy production even in overcast conditions.

To enhance solar production in Hinsdale, consider installing panels with anti-reflective coatings to improve light absorption. Additionally, implementing a tracking system, although more expensive, can increase energy yield by following the sun's path throughout the day.

Despite the challenges posed by winter conditions, Hinsdale's location still offers substantial potential for solar energy generation, especially during the warmer months. With proper installation and maintenance, solar PV systems can provide significant energy contributions to local households and businesses.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

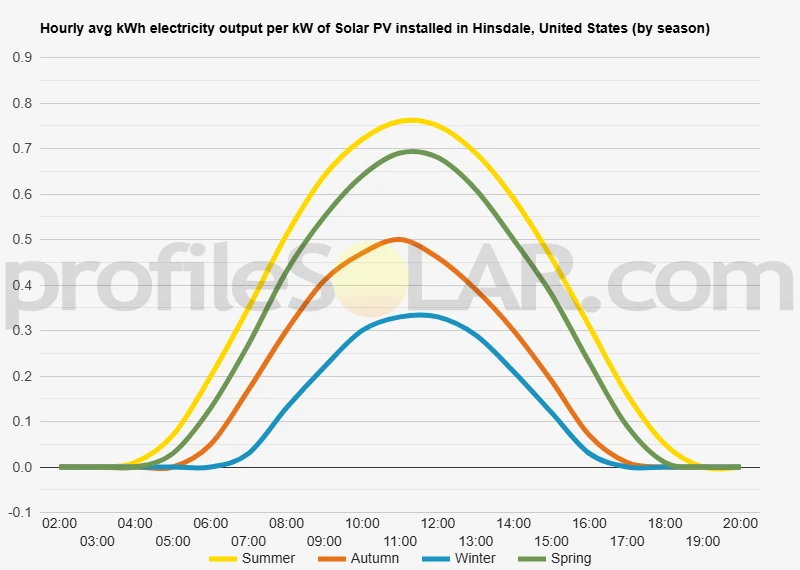

Solar output per kW of installed solar PV by season in Hinsdale

Seasonal solar PV output for Latitude: 41.8033, Longitude: -87.9283 (Hinsdale, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Hinsdale, United States

To maximize your solar PV system's energy output in Hinsdale, United States (Lat/Long 41.8033, -87.9283) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Hinsdale, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Hinsdale, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	45° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Hinsdale, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Hinsdale, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Hinsdale, United States

The topography around Hinsdale, United States, located at latitude 41.8033 and longitude -87.9283, is characterized by relatively flat terrain typical of the Midwest region. Hinsdale is situated in the Chicago metropolitan area, in the eastern part of DuPage County, Illinois. The landscape in this area is predominantly composed of gently rolling plains with minimal elevation changes. The region surrounding Hinsdale was shaped by glacial activity during the last ice age, resulting in a mostly level terrain with subtle undulations. The area is part of the larger Illinois prairie, which once covered much of the state before human settlement and development. Today, the natural landscape has been largely altered by urbanization and suburban expansion.

Nearby Areas Suitable for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The flat topography of the region is generally favorable for solar energy development, as it minimizes shading issues and simplifies construction. Rural areas to the west and southwest of Hinsdale offer the most promising locations for large-scale solar PV projects. These areas, extending into Kane and Kendall counties, have more open spaces and agricultural land that could potentially be repurposed for solar energy production. The relatively unobstructed horizons in these rural regions provide optimal conditions for capturing sunlight throughout the day. However, it's important to note that the Chicago metropolitan area is densely populated, which limits the availability of large, contiguous plots of land needed for utility-scale solar installations. Potential sites would need to be carefully selected to balance energy production goals with land use considerations and local zoning regulations. Some specific areas that might be suitable for solar PV development include portions of southern DuPage County, northern Will County, and eastern Kane County. These locations offer a combination of open land and proximity to existing electrical infrastructure, which is crucial for connecting large-scale solar projects to the grid. While the immediate vicinity of Hinsdale itself may not be ideal for large-scale solar installations due to its suburban nature, the broader region within a 30 to 50-mile radius presents opportunities for solar energy development. Any such projects would require thorough environmental assessments and community engagement to ensure they align with local land use plans and conservation efforts.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
