Hoffman Estates, Illinois, located in the Northern Temperate Zone, offers a varied landscape for solar energy production throughout the year. The location's potential for generating electricity via solar photovoltaic (PV) systems fluctuates significantly with the changing seasons.

Seasonal Solar Performance

Summer stands out as the prime season for solar energy generation in Hoffman Estates, with an impressive daily output of 6.30 kWh per kW of installed solar capacity. Spring follows closely, producing 5.32 kWh/day. However, the colder months see a substantial drop in production, with autumn yielding 3.35 kWh/day and winter dipping to a mere 2.29 kWh/day.

These figures highlight the stark contrast between the warm and cold seasons, emphasizing the importance of maximizing solar collection during the longer, sunnier days of summer and spring. The extended daylight hours and higher sun angle during these periods contribute significantly to the overall annual energy production.

Optimal Panel Installation

For those considering a fixed panel installation in Hoffman Estates, the ideal tilt angle to maximize year-round solar production is 36 degrees facing south. This angle is calculated to capture the most sunlight across all seasons, balancing the low winter sun with the high summer sun.

Environmental Considerations

While Hoffman Estates benefits from its location in the Northern Temperate Zone, there are some environmental factors that could impact solar production:

• Snow accumulation in winter can temporarily reduce panel efficiency
• Cloudy days, particularly common in autumn and winter, can decrease daily output

To mitigate these issues, consider installing panels at a steeper angle to encourage snow slide-off and using high-efficiency panels that perform better in low-light conditions. Regular maintenance, including snow removal, can also help maintain optimal performance year-round.

Despite these challenges, Hoffman Estates remains a viable location for solar energy production, especially when system design and installation are optimized to address local weather patterns and seasonal variations.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

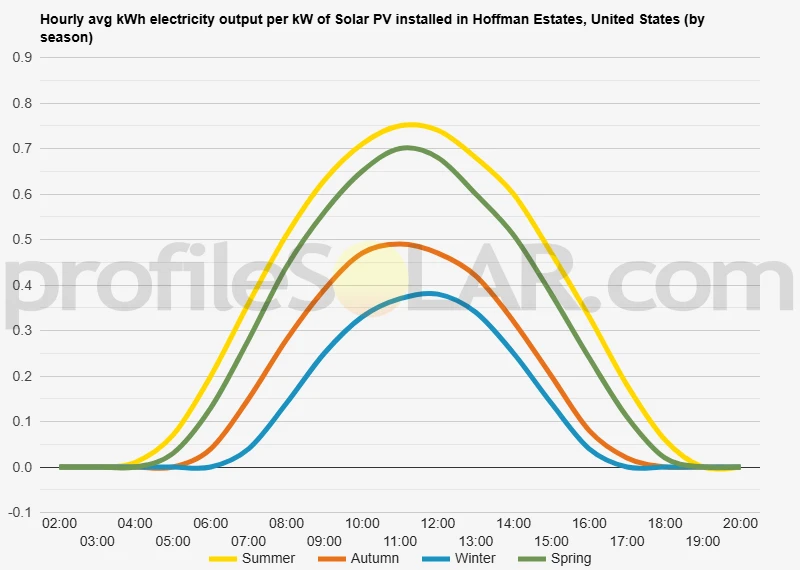

Solar output per kW of installed solar PV by season in Hoffman Estates

Seasonal solar PV output for Latitude: 42.0469, Longitude: -88.1051 (Hoffman Estates, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Hoffman Estates, United States

To maximize your solar PV system's energy output in Hoffman Estates, United States (Lat/Long 42.0469, -88.1051) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Hoffman Estates, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Hoffman Estates, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Hoffman Estates, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Hoffman Estates, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Hoffman Estates, United States

The topography around Hoffman Estates, Illinois, is characterized by gently rolling terrain typical of the Midwest United States. This area, located in the northeastern part of Illinois, is part of the larger Chicago metropolitan region. The landscape is primarily composed of low-lying plains with subtle elevation changes, creating a mostly flat to slightly undulating surface. Hoffman Estates itself sits at an average elevation of around 850 feet above sea level. The surrounding area features a mix of open spaces, residential developments, and commercial zones interspersed with patches of woodland and small bodies of water. To the north and west of Hoffman Estates, the land gradually becomes more rural, with larger expanses of farmland and open fields.

Nearby Areas Suitable for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Hoffman Estates, several factors come into play. The most suitable areas would be those with ample open space, minimal shading, and relatively flat terrain. Based on these criteria, the rural areas to the west and northwest of Hoffman Estates show promise for solar development. These regions, extending into McHenry and Kane counties, offer expansive farmlands and open fields that could potentially accommodate large solar arrays. The generally flat topography of these areas is advantageous for solar installations, as it minimizes the need for extensive land preparation and allows for optimal panel positioning. Additionally, some of the less developed areas to the southwest of Hoffman Estates, towards Elgin and beyond, might also present opportunities for solar PV projects. These locations benefit from their proximity to existing power infrastructure while still offering the necessary space for large-scale installations. It's important to note that while these areas may be topographically suitable, other factors such as local zoning regulations, environmental considerations, and grid connection capabilities would need to be thoroughly assessed before implementing any large-scale solar projects. Consultation with local authorities and conducting detailed site surveys would be essential steps in identifying the most viable locations for solar PV development in the vicinity of Hoffman Estates.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
