Hubbard, Texas offers reasonably good conditions for year-round solar energy generation, though with some notable seasonal variations typical of its Northern Sub Tropical climate zone.

Seasonal Solar Performance

The solar energy output at this location shows a clear seasonal pattern that reflects the area's climate characteristics. Summer provides the strongest performance at 6.74 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best season with 5.32 kWh per day per kW, while autumn delivers moderate output at 5.02 kWh per day per kW. Winter presents the most challenging conditions for solar generation, dropping significantly to just 3.08 kWh per day per kW of installed capacity. This substantial winter decrease is typical for locations at this latitude, where shorter days and lower sun angles reduce solar energy potential.

Optimal Installation Configuration

For maximum year-round energy production at this Hubbard location, solar panels should be installed at a fixed tilt angle of 28 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Hubbard area can impact solar panel performance:

• Severe weather events including hail storms, high winds, and occasional tornadoes common to Central Texas
• High humidity levels that can promote dust and debris accumulation on panels
• Frequent thunderstorms during spring and summer months
• Dust from agricultural activities and unpaved rural roads
• Potential ice storms during winter months

Preventative Measures for Better Performance

To maximize solar energy production and protect the investment, several installation strategies should be considered. Panels should be mounted with robust racking systems designed to withstand high winds and hail impact. Regular cleaning schedules become particularly important due to the dusty agricultural environment and high humidity that can cause debris to stick to panel surfaces. Installing panels with adequate spacing for air circulation helps prevent overheating during hot Texas summers, while ensuring proper drainage prevents water accumulation during heavy rains. Consider impact-resistant panel glass and secure mounting hardware rated for severe weather conditions typical of Central Texas. Positioning the installation away from large trees or agricultural dust sources where possible will reduce cleaning maintenance needs and prevent shading issues that could significantly impact energy production throughout the year.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

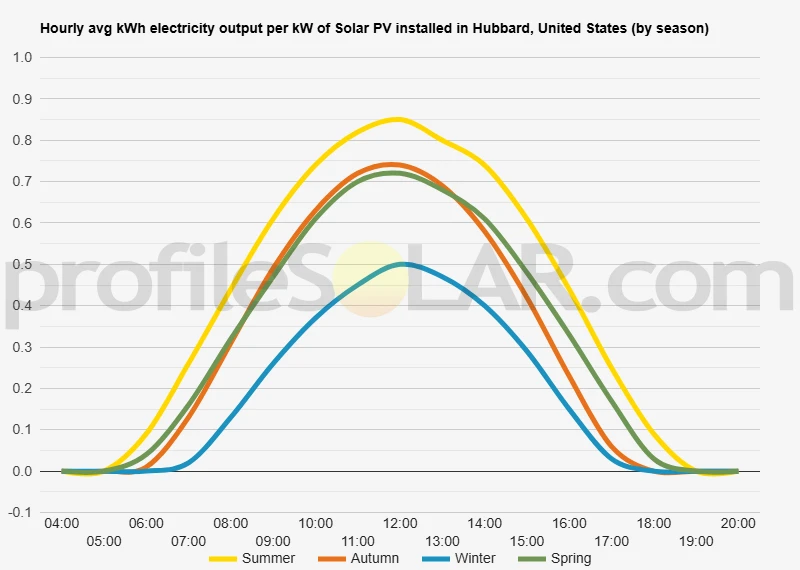

Solar output per kW of installed solar PV by season in Hubbard

Seasonal solar PV output for Latitude: 31.8467, Longitude: -96.8039 (Hubbard, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 28° South in Hubbard, United States

To maximize your solar PV system's energy output in Hubbard, United States (Lat/Long 31.8467, -96.8039) throughout the year, you should tilt your panels at an angle of 28° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Hubbard, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Hubbard, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 28° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	37° South in Autumn	47° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Hubbard, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Hubbard, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Hubbard, United States

Topographical Features Around Hubbard, Texas

The terrain surrounding Hubbard, Texas is characterized by gently rolling hills and relatively flat agricultural land typical of the Blackland Prairie region of central Texas. This area sits within the broader Gulf Coastal Plain, where elevations are modest and slopes are generally gradual. The landscape consists primarily of open farmland interspersed with scattered woodlands, creating a patchwork of cultivated fields and natural areas.

The region features well-drained soils that have supported agriculture for generations, with much of the land currently used for crop production and cattle grazing. Small creeks and tributaries meander through the area, creating minor variations in elevation but nothing that would significantly impact large-scale development projects. The overall topography is quite favorable for construction and infrastructure development, as the terrain lacks significant obstacles such as steep slopes, rocky outcroppings, or extensive wetlands.

Elevations in the immediate vicinity typically range from approximately 400 to 600 feet above sea level, with most areas falling somewhere in the middle of this range. The gentle undulations in the landscape provide adequate drainage while maintaining relatively level ground across substantial areas. This combination of characteristics makes the region well-suited for various types of development that require stable, accessible terrain.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Hubbard would be the expansive agricultural fields that dominate the landscape to the south and east of the town. These areas offer several key advantages including minimal topographical variation, excellent accessibility via existing farm roads, and proximity to electrical transmission infrastructure. The flat to gently sloping terrain in these directions would minimize grading and preparation costs while maximizing the efficiency of solar panel installation.

Areas west and northwest of Hubbard also present good opportunities, particularly where large agricultural parcels have been maintained as single ownership units. The relatively open nature of these lands, combined with their gentle topography, would allow for efficient layout of solar arrays with minimal shading concerns. The existing agricultural infrastructure in these areas, including access roads and utility connections, could potentially be adapted to support solar development.

The eastern portions of the surrounding area are particularly well-suited due to their proximity to existing electrical transmission lines and the relatively uniform elevation across large tracts of land. These areas would likely require minimal site preparation and could accommodate the geometric requirements of large solar installations without significant terrain modifications. The agricultural nature of much of this land also means that large parcels are already available, reducing the complexity of land acquisition for substantial solar projects.

Areas immediately adjacent to existing transportation corridors would offer additional advantages for solar development, as they provide ready access for construction equipment and ongoing maintenance operations. The combination of suitable topography, existing infrastructure, and large available parcels makes the agricultural lands surrounding Hubbard particularly attractive for utility-scale solar development projects.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
