Huntley, Illinois presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations typical of the Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output at this location shows substantial differences throughout the year. Summer provides the strongest performance at 6.28 kWh per day per kilowatt of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best season with 5.27 kWh per day per kilowatt, offering excellent production potential. Autumn sees a notable decline to 3.29 kWh per day per kilowatt, while winter presents the most challenging conditions with only 2.25 kWh per day per kilowatt. This winter reduction represents roughly one-third of the summer output, highlighting the seasonal dependency of solar generation at this latitude.

Optimal Panel Configuration

For fixed panel installations at Huntley, the ideal tilt angle is 36 degrees facing south to maximize total year-round solar production. This angle represents the optimal balance across all seasons, accounting for the sun's changing position throughout the year and the varying solar irradiance levels.

Environmental Challenges and Solutions

Several environmental factors in the Huntley area can significantly impact solar energy production:

• Snow accumulation: Winter weather can cover panels, completely blocking energy generation
• Ice formation: Creates additional barriers to sunlight and can damage equipment
• Seasonal cloud cover: Midwest weather patterns often bring extended cloudy periods
• Temperature effects: Extreme cold can affect panel efficiency and battery performance

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies prove effective:

• Steeper tilt angles: Panels angled more steeply help snow slide off naturally
• Quality mounting systems: Robust hardware designed for wind and snow loads prevents damage
• Strategic positioning: Avoiding areas prone to shade from trees or buildings during low winter sun angles
• Accessible design: Planning for safe snow removal when necessary
• Cold-weather components: Using panels and inverters rated for temperature extremes

Despite these seasonal challenges, Huntley's location offers reasonable solar potential, particularly during the warmer months when energy demand for air conditioning typically peaks. The strong spring and summer performance can help offset the reduced winter production, making solar installations viable with proper planning and equipment selection.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

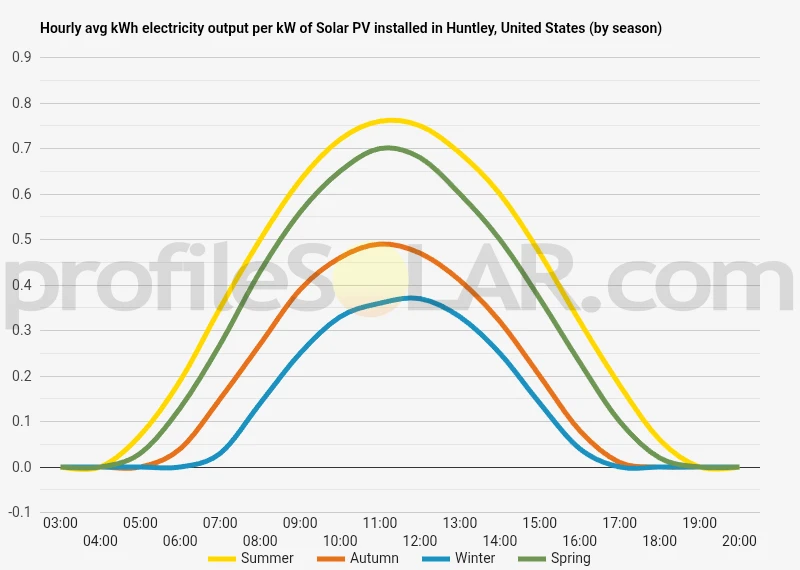

Solar output per kW of installed solar PV by season in Huntley

Seasonal solar PV output for Latitude: 42.1726, Longitude: -88.4231 (Huntley, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Huntley, United States

To maximize your solar PV system's energy output in Huntley, United States (Lat/Long 42.1726, -88.4231) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Huntley, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Huntley, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Huntley, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Huntley, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Huntley, United States

Topographical Features Around Huntley

The landscape surrounding Huntley, Illinois is characterized by gently rolling terrain typical of the northern Illinois prairie region. This area sits within the Fox River valley system, where the topography has been shaped by glacial activity during the last ice age. The elevation changes are generally modest, with gradual slopes and occasional small hills that create a pleasant undulating countryside rather than dramatic elevation changes. The Fox River flows through the broader region, creating a natural corridor with slightly lower elevations along its path. Away from the immediate river valley, the terrain rises gently into what were historically tall grass prairies. These areas now consist primarily of agricultural fields and suburban developments, with the original prairie topography still evident in the subtle rises and depressions across the landscape.

Drainage and Soil Characteristics

The drainage patterns in this region follow natural depressions and gentle slopes that direct water toward the Fox River system and its tributaries. The soils are predominantly rich, dark prairie soils that developed over thousands of years under grassland vegetation. These well-drained soils sit over glacial deposits that provide stable foundations for various land uses. Small wetland areas and seasonal ponds dot the landscape, particularly in lower-lying areas where water naturally collects. These features, while environmentally important, create a mosaic of slightly varying elevations and drainage conditions that influence land use patterns throughout the region.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be the elevated, well-drained agricultural areas that extend northwest, southwest, and southeast of Huntley. These gently sloping upland areas offer several advantages for solar development, including good drainage, stable soils, and minimal shading from topographical features. The slightly higher elevations away from the Fox River valley would be particularly attractive because they avoid potential flooding concerns and provide consistent exposure conditions. Areas with gentle south-facing slopes would be especially valuable, as they can enhance solar collection efficiency while maintaining good drainage characteristics. Agricultural fields on the prairie uplands represent the most promising opportunities for utility-scale solar farms. These areas typically have fewer trees and buildings that could create shading issues, and the gentle topography minimizes the need for extensive grading or site preparation. The stable glacial soils provide excellent foundations for solar mounting systems without requiring specialized engineering solutions.

Areas to Avoid for Solar Development

Low-lying areas near streams and wetlands would be less suitable for large-scale solar installations due to potential drainage issues and environmental sensitivities. The immediate Fox River corridor and its associated floodplains should generally be avoided for major solar developments, both for practical flooding concerns and ecological preservation. Heavily wooded areas, while limited in this largely agricultural region, would require extensive clearing and might face environmental restrictions. Similarly, areas with steep slopes, though uncommon in this region, would present installation challenges and potential erosion concerns that make them less attractive for solar development. The relatively flat to gently rolling topography around Huntley creates favorable conditions for solar installations across much of the surrounding landscape, with the main considerations being drainage, land use compatibility, and proximity to electrical infrastructure rather than challenging terrain features.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
