Hutchinson, Kansas, in the United States, offers varying potential for solar PV energy generation throughout the year, with its location in the Northern Temperate Zone providing distinct seasonal patterns.

Seasonal Solar Production

Solar panels in Hutchinson demonstrate significant seasonal variation in electricity production. Summer stands out as the most productive season, generating 7.17kWh per day for each kilowatt of installed capacity. Spring follows as the second-best season with 5.47kWh/day, while autumn produces a moderate 4.26kWh/day. Winter shows the lowest output at just 2.82kWh/day per kilowatt installed.

This seasonal pattern creates a more than 2.5-fold difference between the best and worst producing months, which is typical for mid-latitude locations. The substantial summer production makes this period ideal for generating excess energy that might offset lower winter production in net metering arrangements.

Optimal Panel Installation

For fixed-panel installations in Hutchinson, the ideal tilt angle to maximize year-round solar production is 33 degrees facing South. This angle has been calculated by analyzing daily solar elevation patterns at this latitude, weighted by the potential daily PV production based on NASA's solar irradiance data, while accounting for Earth's elliptical orbit.

Environmental Considerations

Several environmental factors could potentially impact solar production in Hutchinson:

• Seasonal snowfall may temporarily reduce winter production unless panels are installed at the recommended angle, which helps with snow shedding.
• The region experiences occasional severe thunderstorms and hail, which could pose physical risks to solar installations. Using hail-resistant panels and proper mounting systems can mitigate this risk.
• Dust and agricultural activities in the surrounding areas may lead to particulate accumulation on panels. Regular cleaning maintenance, especially during drier periods, can help maintain optimal efficiency.
• Tornado risk, while relatively low for any specific location, is present in this region of Kansas. Robust mounting systems designed to withstand high winds are recommended.

With proper installation techniques addressing these environmental factors, Hutchinson can be considered a good location for solar PV generation, especially given its strong summer and spring production potential. The significant seasonal variation suggests that system sizing should account for winter's lower production if year-round energy independence is desired.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

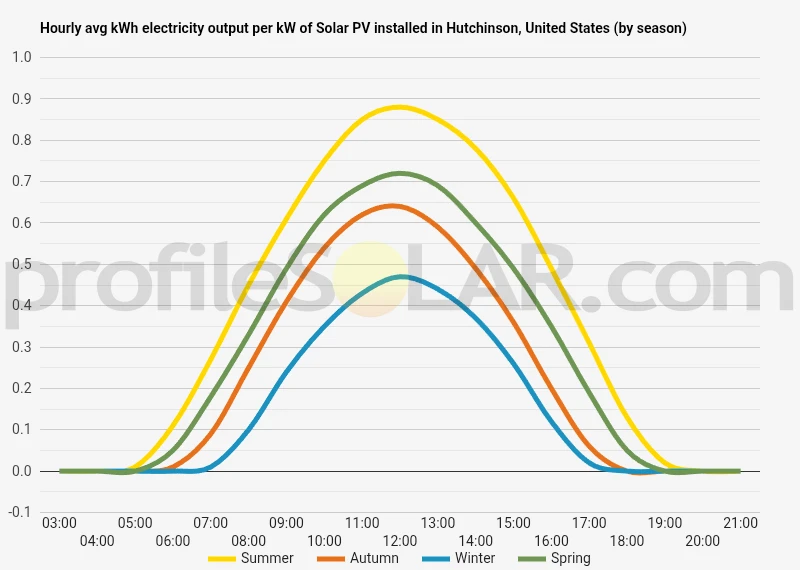

Solar output per kW of installed solar PV by season in Hutchinson

Seasonal solar PV output for Latitude: 38.1215, Longitude: -97.894 (Hutchinson, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 33° South in Hutchinson, United States

To maximize your solar PV system's energy output in Hutchinson, United States (Lat/Long 38.1215, -97.894) throughout the year, you should tilt your panels at an angle of 33° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Hutchinson, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Hutchinson, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
22° South in Summer	42° South in Autumn	53° South in Winter	31° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Hutchinson, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Hutchinson, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Hutchinson, United States

The topography around Hutchinson, Kansas is characterized primarily by gently rolling plains typical of the central Great Plains region of the United States. Situated in Reno County in south-central Kansas, Hutchinson lies in what geographers often refer to as the High Plains or Central Great Plains physiographic region. The terrain is predominantly flat to slightly undulating, with elevations generally ranging between 1,500 to 1,600 feet above sea level. The Arkansas River flows through the Hutchinson area, creating a shallow valley that introduces some minor topographical variation to an otherwise relatively uniform landscape. This river system has, over millennia, deposited alluvial soils that contribute to the region's agricultural productivity. Around the immediate vicinity of Hutchinson, the land slopes very gradually toward the river and its tributaries.

Notable Topographical Features

While dramatic elevation changes are absent in this region, there are subtle topographical elements worth noting. Sand hills appear in patches throughout the area, particularly south and southwest of Hutchinson. These low, rolling dunes are remnants of ancient wind deposits and add texture to the landscape. The Great Bend Sand Prairie, not far to the west, represents a more extensive example of this terrain type. Salt marshes and wetlands historically dotted the region, though many have been drained for agriculture. Some remaining wetlands, particularly around Quivira National Wildlife Refuge to the southwest, provide important ecological diversity and break up the otherwise consistent plains topography. One of the defining subterranean features of the area is the Hutchinson Salt Member, a massive underground salt deposit extending throughout much of central Kansas. While not visible on the surface, this geological feature has influenced local industry and development.

Solar PV Suitability

The topographical characteristics of the Hutchinson region make it generally favorable for large-scale solar photovoltaic installations. Several specific areas stand out as particularly suitable: The flat agricultural lands extending north and west of Hutchinson present excellent opportunities for solar development. These areas combine minimal topographical challenges with good solar exposure. The flat terrain means minimal earth-moving would be required for installation, reducing development costs. Additionally, the lack of tall natural features means shadowing effects would be minimal. The slightly elevated areas of the sand hills south of Hutchinson could potentially offer marginally improved solar exposure compared to the surrounding flatlands. These gently rolling areas receive consistent sunlight throughout the day with minimal obstruction from terrain features. Former croplands or marginal agricultural areas throughout Reno County could be ideal for solar conversion. The consistent elevation and already-cleared nature of these sites minimize site preparation requirements. Areas with south-facing gentle slopes, though subtle in this region, would offer optimal orientation for solar collection. The relatively sparse population density in areas outside the immediate Hutchinson city limits provides ample space for large-scale installations without significant land use conflicts. The existing grid infrastructure supporting the agricultural economy could potentially be leveraged for solar energy transmission. Areas to potentially avoid include the immediate floodplain of the Arkansas River and any remaining wetland areas, as these present environmental sensitivities and potential flooding risks. Additionally, the limited forested areas in the region would require clearing, creating unnecessary environmental impact when abundant open land is already available. The combination of flat terrain, minimal natural obstructions, and abundant open space makes the greater Hutchinson region naturally conducive to solar energy development from a purely topographical perspective.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
