Solar Energy Potential in Ironwood, Michigan

Ironwood, Michigan, located in the Upper Peninsula at 46.4604° N, -90.1616° W, experiences significant seasonal variations in solar energy production throughout the year. This northern temperate location presents both challenges and opportunities for solar photovoltaic (PV) systems. The solar energy output in Ironwood follows a predictable seasonal pattern. During summer, production reaches its peak at 6.51 kWh per day for each kilowatt of installed capacity. Spring is the second most productive season with 5.05 kWh/day. Production drops considerably in autumn to 2.96 kWh/day, while winter sees the lowest output at just 1.77 kWh/day per kilowatt installed. This dramatic seasonal variation means that a solar PV system in Ironwood will produce nearly four times more energy in summer than in winter. The substantial difference highlights the importance of properly sizing a system to meet year-round energy needs, particularly if the installation is intended to provide consistent power throughout the year.

Optimal Panel Positioning

For fixed solar panel installations in Ironwood, the ideal tilt angle to maximize year-round energy production is 40 degrees facing south. This specific angle optimizes the overall annual solar capture by balancing seasonal variations in the sun's position. While adjustable systems could theoretically capture more energy by changing tilt with the seasons, the 40-degree fixed angle represents the best compromise for permanent installations.

Environmental and Weather Challenges

Several significant environmental factors affect solar production in Ironwood:

• Heavy snowfall averaging over 200 inches annually can cover panels for extended periods, reducing winter production beyond the already limited solar resource
• Frequent cloud cover, especially during winter months, further diminishes solar radiation reaching panels
• Cold temperatures, while generally beneficial for panel efficiency, can create challenges with snow accumulation and equipment durability
• Dense forest coverage in the region may create shading issues for some installation sites

Preventative Measures

To maximize solar production despite these challenges, several installation strategies can be employed: Installing panels at the recommended 40-degree tilt not only optimizes year-round production but also helps shed snow more effectively than flatter installations. Additional snow removal systems or manual clearing may be necessary during heavy accumulation periods. Elevated mounting systems can help minimize snow buildup at the panel base and reduce shading from ground-level snow reflection. Selecting panels with anti-reflective coatings and high efficiency in low-light conditions can improve performance during the frequent overcast days. For new installations, thorough site assessment to identify and avoid potential shading from trees or nearby structures is crucial, particularly given the already limited winter solar resource. Cold-rated equipment specifically designed for northern climates will ensure system longevity and performance. Despite these challenges, the strong summer and spring production can make solar viable in Ironwood, especially when properly designed with these local conditions in mind.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

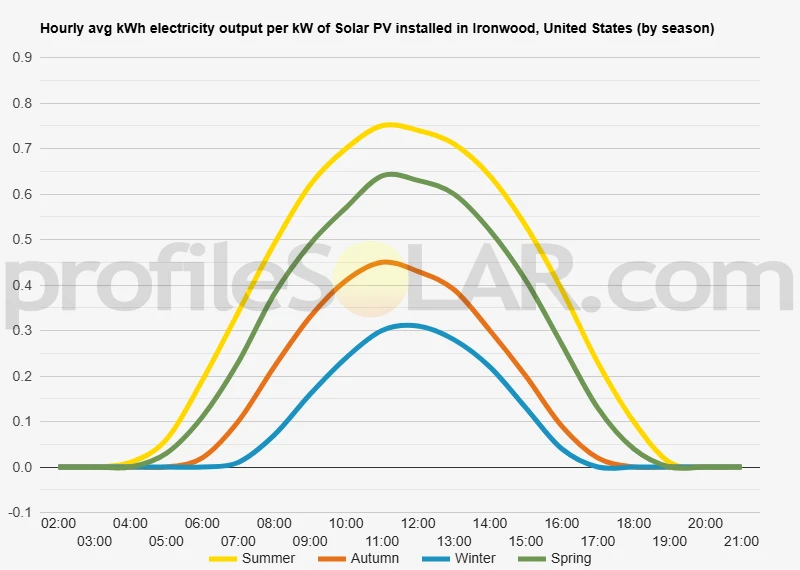

Solar output per kW of installed solar PV by season in Ironwood

Seasonal solar PV output for Latitude: 46.4604, Longitude: -90.1616 (Ironwood, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Ironwood, United States

To maximize your solar PV system's energy output in Ironwood, United States (Lat/Long 46.4604, -90.1616) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ironwood, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ironwood, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	50° South in Autumn	60° South in Winter	39° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ironwood, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ironwood, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ironwood, United States

The topography around Ironwood, Michigan is characterized by rolling hills and valleys, typical of the western Upper Peninsula region. Located on the Wisconsin-Michigan border, Ironwood sits within a transitional zone between the Gogebic Range (part of the larger Penokee-Gogebic Iron Range) to the north and the gentler terrain extending toward the south. The elevation in the area averages approximately 1,500 feet above sea level, with some surrounding hills reaching over 1,800 feet. The landscape has been significantly shaped by glacial activity from the last ice age, resulting in moraines, eskers, and numerous small lakes and wetlands. The Montreal River flows through the area, carving valleys and creating natural boundaries. Dense mixed forests of northern hardwoods and conifers cover much of the terrain, with maple, birch, pine, and spruce being predominant tree species.

Seasonal Considerations

The region experiences distinct seasonal changes that affect the landscape. Winter brings substantial snowfall, with snow cover typically lasting from November through April. Spring thaws can create temporary wetlands and increased flow in streams and rivers. Summer brings lush vegetation, while autumn transforms the forests with vibrant foliage colors before the cycle begins again.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic (PV) development near Ironwood, several areas present more favorable conditions than others: The relatively flat areas south of the city offer better potential for solar installation than the more rugged terrain to the north. These southern plains have fewer topographical obstructions and more consistent elevation, reducing installation challenges and shadow effects. Former mining sites and reclaimed land from the area's iron mining history could be repurposed for solar development. These brownfield areas often have reduced tree cover and existing access infrastructure, making them practical candidates for solar arrays. Agricultural clearings and fields in the surrounding rural areas provide open spaces with minimal shading from trees or hills. These areas typically have established road access and fewer environmental sensitivities than undisturbed forest land. The higher elevation plateaus in the region, while more limited in size, could offer enhanced solar exposure with less morning and evening shading from surrounding terrain features.

Topographical Challenges

Despite these opportunities, several topographical factors present challenges for solar development around Ironwood. The numerous lakes, streams, and wetlands create fragmented land areas and potential environmental constraints. The predominantly forested landscape means significant clearing would be required for large installations, raising both ecological and practical concerns. The varied terrain, while scenic, creates challenges for uniform solar array placement and may increase construction costs. Additionally, the region's hills can create localized shading patterns that change throughout the day and seasons, potentially reducing overall solar efficiency in certain locations. The area's heavy winter snowfall also presents a seasonal consideration for solar installations, as snow accumulation can temporarily reduce panel effectiveness and may require design accommodations for snow load and clearing access.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
