Karlstad, Minnesota is located in a challenging region for year-round solar energy generation, though it does offer some seasonal advantages. The location experiences significant seasonal variation in solar output, with summer months producing nearly four times more electricity than winter months.

Seasonal Solar Performance

The solar energy production at this location varies dramatically throughout the year. Summer delivers the strongest performance at 6.44 kWh per day per kilowatt of installed solar capacity, making it an excellent time for solar generation. Spring also provides good output at 5.38 kWh per day, offering another productive season for solar energy. However, the colder months present significant challenges. Autumn drops to 2.88 kWh per day, while winter plummets to just 1.81 kWh per day per kilowatt installed. This winter output represents less than 30% of summer production, indicating that solar panels will generate minimal electricity during the coldest months. For optimal year-round energy production, solar panels should be installed at a fixed tilt angle of 41 degrees facing south. This angle maximizes total annual solar output by accounting for the sun's changing position throughout the year and the varying solar irradiance levels at this northern latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors in Karlstad, Minnesota can significantly impact solar panel performance:

• Heavy snow accumulation during winter months can completely block solar panels
• Ice formation on panel surfaces reduces light transmission and energy output
• Frequent cloud cover during winter months further reduces already limited solar irradiance
• Extreme cold temperatures, while actually improving panel efficiency, are offset by reduced daylight availability

Preventative Measures for Better Performance

Several installation strategies can help maximize solar energy production despite these challenges:

• Install panels at the optimal 41-degree tilt angle to encourage snow sliding off naturally
• Use mounting systems that allow easy access for snow removal when necessary
• Consider anti-reflective coatings that also have ice-resistant properties
• Ensure proper spacing between panel rows to minimize shading from snow buildup
• Install panels in locations with maximum southern exposure and minimal obstruction from trees or buildings

Regular maintenance becomes crucial during winter months, including periodic snow removal and inspection for ice damage. Property owners should also consider battery storage systems or grid-tied arrangements to compensate for the dramatic seasonal variation in energy production. While Karlstad's location presents challenges for consistent year-round solar generation, the strong summer and spring output can still make solar installations viable when properly designed and maintained.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

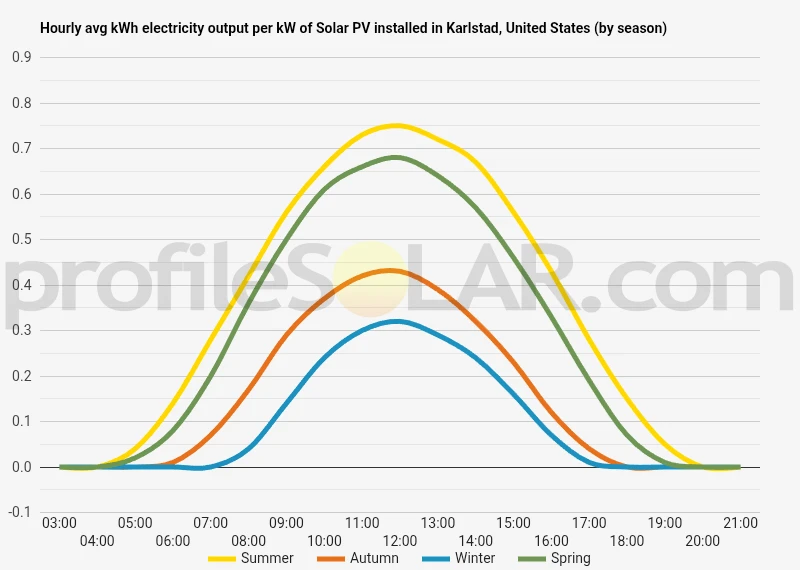

Solar output per kW of installed solar PV by season in Karlstad

Seasonal solar PV output for Latitude: 48.5775, Longitude: -96.5206 (Karlstad, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 41° South in Karlstad, United States

To maximize your solar PV system's energy output in Karlstad, United States (Lat/Long 48.5775, -96.5206) throughout the year, you should tilt your panels at an angle of 41° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Karlstad, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Karlstad, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 41° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
32° South in Summer	52° South in Autumn	62° South in Winter	41° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Karlstad, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Karlstad, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Karlstad, United States

Topography Around Karlstad

The landscape surrounding Karlstad in northwestern Minnesota is characterized by gently rolling prairie terrain that was shaped by ancient glacial activity. This region sits within the Red River Valley, a vast flat plain that extends across the border into North Dakota and up into Manitoba, Canada. The topography is remarkably flat with only subtle elevation changes, creating an expansive agricultural landscape that stretches to the horizon in most directions. The area features fertile farmland with minimal tree cover, consisting primarily of open fields used for wheat, corn, soybeans, and sugar beet cultivation. Small wetlands and prairie potholes dot the landscape, remnants of the last ice age that provide important wildlife habitat. These shallow depressions fill with water during spring snowmelt and after heavy rains, but many dry up during summer months. Elevation changes in the region are minimal, with the terrain rising and falling only gradually over long distances. The Red River flows northward through the valley, creating the lowest elevations in the area. Moving away from the river corridor, the land rises almost imperceptibly toward slightly higher prairie uplands, but even these elevated areas maintain the characteristic flat to gently undulating topography of the Great Plains.

Optimal Areas for Large-Scale Solar Development

The extensive flat agricultural lands surrounding Karlstad present excellent opportunities for large-scale solar photovoltaic installations. The open prairie landscape offers vast stretches of relatively level ground with minimal shading from trees or topographical features. These characteristics make the region particularly well-suited for utility-scale solar farms that require large contiguous areas of suitable land. The most promising locations for solar development lie on the slightly elevated prairie uplands away from the immediate river corridor. These areas provide good drainage while maintaining the flat topography that minimizes grading and construction costs. The agricultural fields that dominate the landscape can potentially be converted to solar use, particularly on lands that may be less productive for farming or where landowners seek alternative revenue streams. Areas to the south and west of Karlstad offer particularly favorable conditions, as they sit on stable prairie soils with good access to existing electrical transmission infrastructure. The minimal tree cover in these directions means fewer obstacles for solar panel placement and reduced shading concerns. Additionally, these locations tend to have slightly better drainage than areas closer to the Red River, reducing potential issues with seasonal flooding or waterlogged soils. The flat terrain throughout the region means that solar panels can be oriented optimally without concern for hillside angles or complex terrain features. This topographical advantage allows for standardized installation techniques and equipment across large areas, potentially reducing overall project costs and complexity for major solar developments.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
