Solar PV Analysis of Morristown, New Jersey, United States
Morristown, New Jersey, located in the Northern Temperate Zone, offers a moderately favorable environment for solar PV energy generation throughout the year. The location's potential for solar energy production varies significantly across seasons, with peak performance during summer months and reduced output in winter.
Seasonal Solar Performance
Summer stands out as the most productive season, with an average daily output of 6.05 kWh per kW of installed solar capacity. Spring follows closely behind, generating 5.47 kWh/day. Autumn sees a noticeable decrease in production, averaging 3.54 kWh/day, while winter experiences the lowest output at 2.18 kWh/day.
These figures indicate that Morristown's solar potential is strongest from late spring through early fall, making it an ideal time for maximizing solar energy generation. The longer daylight hours and higher sun angles during these months contribute significantly to the increased productivity.
Optimal Panel Installation
For fixed panel installations in Morristown, the ideal tilt angle to maximize year-round solar production is 35 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the varying sun positions across seasons.
Environmental and Weather Considerations
Several factors could potentially impact solar production in Morristown:
- Snowfall: Morristown experiences significant snowfall in winter, which can temporarily reduce panel efficiency if not promptly removed.
- Cloud cover: The region sees partly cloudy conditions throughout the year, potentially affecting solar output.
- Tree shading: Morristown's abundant vegetation may cast shadows on panels, reducing their effectiveness.
To mitigate these issues, consider the following preventative measures:
- Install panels at a steeper angle to facilitate snow sliding off
- Use high-efficiency panels that perform well in low-light conditions
- Conduct thorough site assessments to minimize shading from trees and buildings
- Implement regular panel cleaning and maintenance schedules
While Morristown faces some challenges for year-round solar production, particularly during winter months, its overall solar potential remains favorable. With proper planning and installation techniques, solar PV systems can provide significant energy generation, especially during the productive summer and spring seasons.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in the United States by location

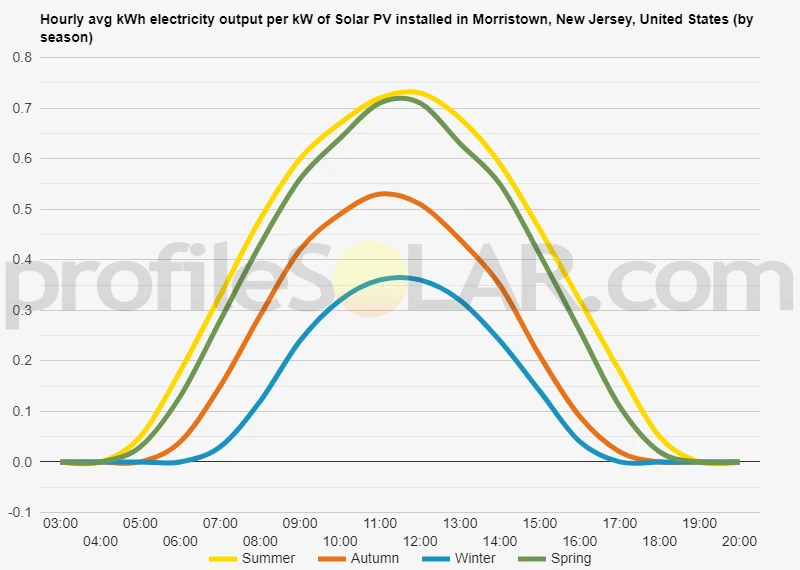

Solar output per kW of installed solar PV by season in Morristown, New Jersey
Seasonal solar PV output for Latitude: 40.7938, Longitude: -74.4878 (Morristown, New Jersey, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 35° South in Morristown, New Jersey, United States
To maximize your solar PV system's energy output in Morristown, New Jersey, United States (Lat/Long 40.7938, -74.4878) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Morristown, New Jersey, United States
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Morristown, New Jersey, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 24° South in Summer | 45° South in Autumn | 56° South in Winter | 34° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Morristown, New Jersey, United States
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Morristown, New Jersey, United States.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Morristown, New Jersey, United States
The topography around Morristown, New Jersey, is characterized by a mix of gently rolling hills and relatively flat areas. This region is part of the Piedmont Plateau, which lies between the coastal plain to the east and the more mountainous Appalachian region to the west. The landscape is generally undulating, with elevations ranging from about 300 to 600 feet above sea level.
Morristown itself sits in a shallow basin surrounded by low hills. To the north and west, the terrain becomes more varied, with some steeper slopes and higher elevations as you approach the New Jersey Highlands. To the south and east, the land tends to be flatter, gradually descending towards the coastal regions.
The area features a mix of developed urban and suburban spaces interspersed with patches of forest, open fields, and numerous small streams and rivers. The Whippany River flows through Morristown, contributing to the local topography with its associated floodplains and gentle valleys.
Areas Suitable for Large-Scale Solar PV
When considering locations for large-scale solar photovoltaic (PV) installations near Morristown, the most suitable areas would likely be found to the south and east of the city. These regions tend to have more expansive, flat or gently sloping terrain that is ideal for solar farms. Specifically, areas in Morris County and neighboring Somerset and Middlesex Counties might offer promising locations.
Former agricultural lands or brownfield sites in these areas could be particularly well-suited for solar development. These locations often provide the necessary space and minimal shading required for efficient solar energy production. Additionally, they are typically closer to existing power infrastructure, which can reduce the costs associated with connecting to the grid.
However, it's important to note that the densely populated nature of New Jersey means that finding large, uninterrupted tracts of land for solar farms can be challenging. Any potential sites would need to be carefully evaluated for their environmental impact, proximity to residential areas, and compliance with local zoning regulations. Some compromises might be necessary, such as considering smaller-scale installations or exploring innovative approaches like solar canopies over parking lots or on rooftops of large commercial buildings.
United States solar PV Stats as a country
United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United States?
Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
Citation Guide
Article Details for Citation
Author: Aaron Robinson
Publisher: profileSOLAR.com
First Published: Saturday 31st of August 2024
Last Updated: Monday 21st of July 2025
