Solar Energy Potential in Liberal, Missouri

Liberal, Missouri, located in the Northern Temperate Zone at latitude 37.5581 and longitude -94.52, offers a moderate potential for solar energy generation throughout the year. The location experiences significant seasonal variations in solar output, which impacts the overall efficiency of solar PV systems.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Liberal, with an average daily output of 6.92 kWh per kW of installed solar capacity. This high performance is due to longer daylight hours and the sun's higher position in the sky. Spring follows as the second-most productive season, generating an average of 5.21 kWh per day. The increasing daylight hours and warming temperatures contribute to this improved performance compared to winter months. Autumn sees a decrease in solar output, with an average daily production of 4.24 kWh. This reduction is attributed to shorter days and the sun's lower position in the sky as winter approaches. Winter presents the greatest challenge for solar energy production in Liberal, with an average daily output of only 2.76 kWh. The shorter days, lower sun angle, and potential for cloudy or snowy weather contribute to this reduced performance.

Optimal Panel Installation

To maximize year-round solar energy production in Liberal, fixed solar panels should be installed at a tilt angle of 33 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the varying sun angles across seasons.

Environmental and Weather Considerations

While Liberal's location is generally favorable for solar energy production, there are some factors that could impact system performance: 1. Snow accumulation in winter months can temporarily reduce panel efficiency. 2. Occasional severe weather events, such as hailstorms or tornadoes, may pose a risk to solar installations. To mitigate these challenges, consider the following preventative measures:

• Install panels at a steeper angle to promote snow sliding off more easily
• Use durable, hail-resistant panels and protective coverings
• Implement a regular cleaning and maintenance schedule to ensure optimal performance
• Consider a ground-mounted system for easier access and maintenance

By taking these factors into account and implementing appropriate measures, solar PV systems in Liberal, Missouri can effectively harness the available solar energy throughout the year, with peak performance during the summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

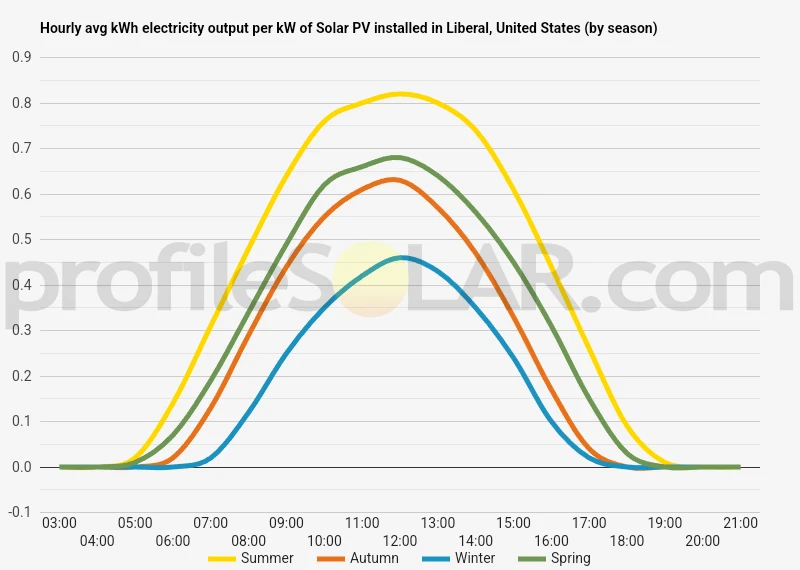

Solar output per kW of installed solar PV by season in Liberal

Seasonal solar PV output for Latitude: 37.5581, Longitude: -94.52 (Liberal, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 33° South in Liberal, United States

To maximize your solar PV system's energy output in Liberal, United States (Lat/Long 37.5581, -94.52) throughout the year, you should tilt your panels at an angle of 33° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Liberal, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Liberal, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
21° South in Summer	42° South in Autumn	53° South in Winter	31° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Liberal, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Liberal, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Liberal, United States

The topography around Liberal, United States, located at approximately 37.5581 degrees north latitude and 94.52 degrees west longitude, is characterized by gently rolling plains typical of the American Midwest. This area, situated in the southwestern part of Kansas, features a relatively flat landscape with subtle undulations and occasional shallow valleys. The terrain surrounding Liberal is primarily composed of open grasslands and agricultural fields, with few significant natural barriers or dramatic elevation changes. The land gradually slopes downward from west to east, with an average elevation of around 2,800 feet above sea level. This gentle incline is part of the larger High Plains region, which extends across much of the central United States.

Suitability for Large-Scale Solar PV

The areas surrounding Liberal offer several advantages for large-scale solar photovoltaic (PV) installations. The relatively flat terrain provides ample space for expansive solar arrays without the need for extensive land preparation or grading. This flatness also minimizes shading issues, allowing for optimal solar panel placement and maximum sun exposure throughout the day. The region experiences abundant sunshine, with an average of about 230 sunny days per year. This high solar irradiance makes the area particularly well-suited for solar energy production. Additionally, the open landscape with few tall structures or natural obstacles further enhances the potential for unobstructed sunlight capture. Areas to the south and west of Liberal would likely be most suitable for large-scale solar PV installations. These locations tend to have slightly higher elevations, potentially offering better exposure to sunlight and reduced risk of localized fog or low-lying cloud cover. The land in these directions is also generally less developed, providing more opportunities for expansive solar farms without interfering with existing infrastructure or residential areas. It's worth noting that while the topography is favorable, other factors such as proximity to power transmission lines, local zoning regulations, and environmental considerations would also play crucial roles in determining the most suitable locations for large-scale solar PV projects in the vicinity of Liberal.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
