Solar PV Analysis of Liberty Hill, United States
Liberty Hill, Texas, located in the Northern Sub Tropics, offers a promising environment for solar energy generation throughout the year. With its geographical position at latitude 30.6622 and longitude -97.931, this location experiences varying levels of solar potential across different seasons.
Seasonal Solar Performance
Summer stands out as the most productive season for solar energy in Liberty Hill, with an impressive average daily output of 6.71 kWh per kW of installed solar capacity. Spring and autumn follow closely, generating 5.41 kWh/day and 5.14 kWh/day, respectively. Winter sees a decrease in production, yielding 3.42 kWh/day, which is still considerable for solar energy generation.
The extended daylight hours and higher sun angles during summer contribute to peak solar performance. Spring and autumn offer balanced production, benefiting from moderate temperatures and clear skies. While winter shows reduced output, Liberty Hill's subtropical climate ensures that solar panels remain productive year-round.
Optimal Panel Installation
For fixed panel installations in Liberty Hill, the ideal tilt angle to maximize year-round solar production is 27 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the location's latitude and seasonal sun path variations.
Environmental Considerations
While Liberty Hill generally provides favorable conditions for solar energy production, there are a few environmental factors to consider:
- Occasional dust storms and pollen: These can temporarily reduce panel efficiency by coating the surface.
- Sporadic severe weather events: Hailstorms, though infrequent, may pose a risk to solar installations.
To mitigate these factors, consider implementing regular cleaning schedules for the panels and investing in hail-resistant solar panels or protective covers. Additionally, ensuring proper drainage around the installation area can prevent water accumulation during heavy rains, maintaining optimal panel performance.
Overall, Liberty Hill's climate and geographical location make it an excellent candidate for solar energy production, with high potential throughout most of the year and manageable challenges that can be addressed through thoughtful installation and maintenance practices.
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in the United States by location

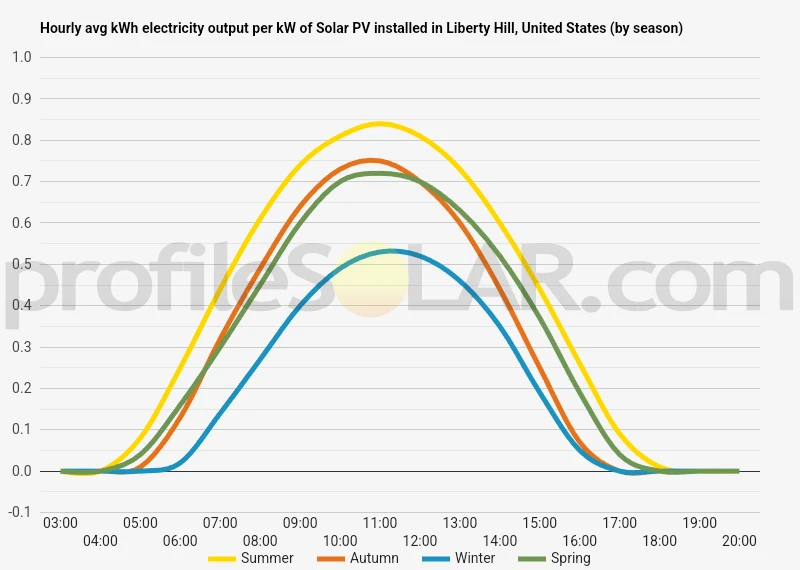

Solar output per kW of installed solar PV by season in Liberty Hill
Seasonal solar PV output for Latitude: 30.6622, Longitude: -97.931 (Liberty Hill, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 27° South in Liberty Hill, United States
To maximize your solar PV system's energy output in Liberty Hill, United States (Lat/Long 30.6622, -97.931) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Liberty Hill, United States
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Liberty Hill, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 15° South in Summer | 35° South in Autumn | 46° South in Winter | 24° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Liberty Hill, United States
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Liberty Hill, United States.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Liberty Hill, United States
The area around Liberty Hill, Texas, located at approximately 30.6622 degrees north latitude and 97.931 degrees west longitude, is characterized by gently rolling hills and plateaus typical of the Texas Hill Country. This region is part of the larger Edwards Plateau, which features a mix of grasslands, scattered woodlands, and limestone outcroppings.
The topography in this area is generally mild to moderate, with elevations ranging from about 800 to 1,200 feet above sea level. The landscape is marked by shallow valleys and low hills, creating a subtly undulating terrain. Small streams and creeks wind through the area, carving gentle depressions in the land.
For large-scale solar PV installations, the most suitable areas nearby would likely be found in the more open, flatter portions of the region. These areas are typically located on the tops of the broader hills or in the wider valleys between the elevated areas. The ideal locations would have minimal shading from trees or other geographical features, allowing for maximum sun exposure throughout the day.
Areas to the east and southeast of Liberty Hill, where the terrain begins to flatten out towards the Blackland Prairie region, might be particularly well-suited for solar farms. These locations tend to have fewer trees and more expansive open spaces, which are beneficial for large-scale solar installations.
It's worth noting that while the topography is generally favorable for solar development, other factors such as land availability, proximity to power infrastructure, and local zoning regulations would also play crucial roles in determining the most suitable sites for large-scale solar PV projects in the vicinity of Liberty Hill.
United States solar PV Stats as a country
United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United States?
Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
