Lock Haven, Pennsylvania presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations typical of the Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy production at this location shows distinct seasonal patterns. Summer delivers the highest output at 5.91 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best period with 5.16 kWh per day per kW, offering nearly comparable performance to summer months. Autumn production drops considerably to 3.06 kWh per day per kW, while winter represents the most challenging period with only 1.99 kWh per day per kW. This winter figure is approximately one-third of summer production, highlighting the substantial seasonal variation that solar system owners should expect. For optimal year-round performance, fixed solar panels at this location should be tilted at 35 degrees facing south. This angle maximizes total annual energy production by accounting for the sun's changing position throughout the year and the varying solar irradiance levels.

Local Environmental Challenges

Several environmental and weather factors in Lock Haven can significantly impact solar energy production. The region experiences considerable snowfall during winter months, which can completely block solar panels and eliminate energy generation until the snow melts or is removed. Additionally, Pennsylvania's climate brings frequent cloudy and overcast conditions, particularly during autumn and winter, which directly reduces solar irradiance reaching the panels. The area also experiences seasonal storms, including thunderstorms in summer and ice storms in winter, which can damage panels or create temporary shading from storm debris. Tree coverage is abundant in this forested region, potentially creating shading issues depending on the specific installation site.

Preventative Installation Measures

To maximize solar production despite these challenges, several installation strategies prove effective:

• Install panels at steeper angles (closer to the recommended 35 degrees) to encourage natural snow shedding
• Ensure adequate clearance around panels for manual snow removal when necessary
• Choose installation locations with minimal tree shading, particularly avoiding shade during peak sun hours
• Use high-quality mounting systems designed to withstand ice and wind loads common in Pennsylvania
• Consider ground-mount systems in areas with heavy snow, as they're easier to clear than rooftop installations

Regular maintenance becomes particularly important in this climate, including periodic cleaning to remove accumulated debris and checking for ice damage after winter storms. Despite these challenges, Lock Haven's strong spring and summer solar production makes it a viable location for solar energy, provided proper installation techniques address the local environmental factors.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

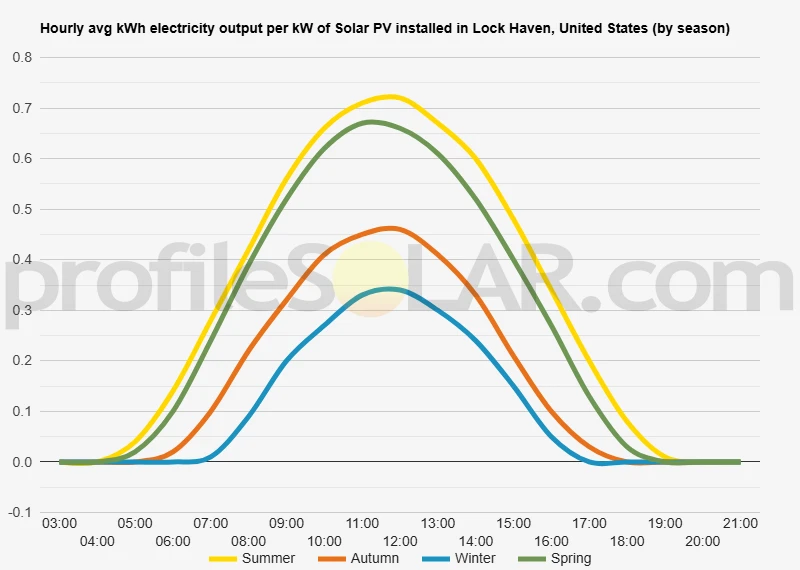

Solar output per kW of installed solar PV by season in Lock Haven

Seasonal solar PV output for Latitude: 41.1397, Longitude: -77.443 (Lock Haven, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Lock Haven, United States

To maximize your solar PV system's energy output in Lock Haven, United States (Lat/Long 41.1397, -77.443) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lock Haven, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lock Haven, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	56° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lock Haven, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lock Haven, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lock Haven, United States

Topographical Features of Lock Haven

Lock Haven sits in a distinctive valley setting within central Pennsylvania, positioned along the West Branch Susquehanna River. The city occupies relatively flat terrain at approximately 550 feet above sea level, nestled between rolling hills and ridges that characterize much of the Appalachian region. The immediate urban area benefits from this valley location, with gentle slopes extending outward from the river corridor. The surrounding landscape features a mix of moderate hills and broader valley floors, with elevations gradually rising to between 800 and 1,200 feet on the surrounding ridges. These hills create a somewhat sheltered environment for the city while providing varied terrain options for different types of development. The West Branch Susquehanna River meanders through the area, creating fertile floodplains and influencing the local topography with its historical flow patterns.

Regional Terrain Characteristics

The broader region around Lock Haven exhibits typical Pennsylvania mountain and valley topography, with northeast-southwest trending ridges separated by valleys of varying widths. The terrain becomes more pronounced as distance from the river increases, transitioning from gentle agricultural valleys to steeper forested hillsides. Much of the area consists of mixed farmland, woodlands, and scattered residential development, with open fields and pastures common in the valley bottoms. The soil composition varies from rich alluvial deposits near the river to thinner, rockier soils on the hillsides. Drainage patterns follow the natural topography, with numerous small streams and tributaries feeding into the main river system. The area experiences typical mid-Atlantic weather patterns, with the surrounding hills providing some protection from severe weather systems.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Lock Haven would be the gently sloping agricultural fields and open meadows found throughout the broader valley systems. These areas offer the necessary combination of relatively flat terrain, minimal shading from surrounding features, and existing cleared land that reduces development costs. Particularly promising locations include the expansive farmland areas to the south and east of Lock Haven, where the terrain remains fairly level while providing good southern exposure. These agricultural valleys offer large contiguous parcels of land with gentle slopes that can accommodate substantial solar arrays without requiring extensive grading or earthwork. The elevated plateaus and ridge tops in the region could also serve as potential solar sites, though they would require more careful evaluation for wind exposure and accessibility. These higher elevation areas often provide excellent exposure with minimal shading concerns, but the increased elevation may present challenges for construction and maintenance access. Areas to avoid for large-scale solar development include the steeper hillsides with significant slopes, heavily forested regions that would require extensive clearing, and the immediate floodplain areas near the river where flooding concerns and environmental regulations might pose complications. The most practical approach would focus on the numerous agricultural areas where existing land use already provides open, accessible terrain with favorable topographical characteristics for solar energy development.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
