Lockhart, Texas, located in the Northern Sub Tropics, presents a moderately favorable location for year-round solar energy generation through photovoltaic (PV) systems. The seasonal energy output data reveals distinct patterns that reflect the area's climate characteristics and solar resource availability throughout the year.

Seasonal Solar Performance

Summer represents the peak solar generation period at this location, producing 6.72 kWh per day per kW of installed solar capacity. This high output reflects the combination of longer days, higher sun angles, and generally clear weather conditions typical of Texas summers. Spring follows as the second-best season for solar generation, yielding 5.42 kWh per day per kW of installed capacity. The favorable spring conditions provide excellent solar production as the sun angle increases and before the most intense summer heat arrives. Autumn production drops to 5.11 kWh per day per kW of installed solar, representing a moderate decrease as daylight hours shorten and sun angles become lower. However, this still represents reasonably good solar generation potential. Winter shows the lowest solar output at 3.31 kWh per day per kW of installed capacity. This significant reduction compared to summer output is typical for locations at this latitude, though the production remains substantial enough to provide meaningful energy generation year-round.

Optimal Panel Configuration

For maximum year-round solar energy production at Lockhart, Texas, fixed solar panels should be tilted at 27 degrees facing south. This angle has been calculated to optimize total annual energy output by accounting for the sun's varying position throughout the year and weighting the optimal daily angles by the actual solar irradiance potential at this location.

Environmental and Weather Challenges

Several significant environmental and weather factors can impact solar energy production in the Lockhart area and require consideration during system design and installation. **Severe Weather Events** Texas is prone to severe thunderstorms, hail, and occasional tornadoes, particularly during spring and early summer months. Hail can cause substantial damage to solar panels, while high winds from severe storms can damage mounting systems and panels themselves. **High Temperature Effects** The intense summer heat common in Texas can reduce solar panel efficiency. While solar panels generate more electricity with increased sunlight, their efficiency actually decreases as temperatures rise above optimal operating ranges, typically around 77°F (25°C). **Dust and Debris Accumulation** The semi-arid climate and agricultural activities in the region can lead to dust accumulation on solar panels, reducing their ability to absorb sunlight effectively. Pollen from trees and agricultural crops can also create a film on panel surfaces. **Humidity and Moisture** The subtropical climate brings periods of high humidity and moisture, which can affect electrical connections and potentially lead to corrosion issues over time if not properly addressed.

Preventative Measures for Enhanced Performance

Several installation strategies can help mitigate these challenges and ensure optimal solar energy production:

• Impact-Resistant Panels: Install solar panels rated for hail impact resistance and high wind loads to withstand severe weather events common in Texas
• Robust Mounting Systems: Use heavy-duty mounting systems designed for high wind zones and ensure proper structural engineering calculations
• Enhanced Ventilation: Design installations with adequate air circulation behind panels to help manage high temperature effects and maintain efficiency
• Weather-Resistant Components: Select inverters, wiring, and electrical components specifically rated for high humidity and temperature environments
• Regular Maintenance Planning: Establish routine cleaning schedules to remove dust, pollen, and debris, particularly important during dry periods and after storms

Overall Assessment

Despite these challenges, Lockhart, Texas offers reasonably good solar energy potential year-round. The strong summer and spring production can offset the lower winter output, making solar PV installations economically viable. The key to success lies in proper system design that accounts for local weather patterns and implementing appropriate preventative measures during installation. The location's subtropical climate provides abundant sunshine throughout most of the year, and with proper planning and quality components, solar installations can perform reliably and efficiently while withstanding the environmental challenges typical of Central Texas.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

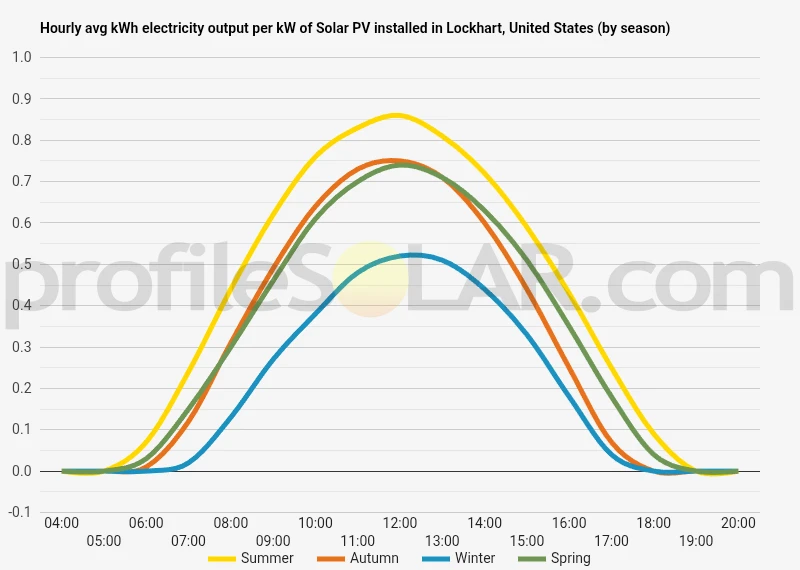

Solar output per kW of installed solar PV by season in Lockhart

Seasonal solar PV output for Latitude: 29.8903, Longitude: -97.6689 (Lockhart, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Lockhart, United States

To maximize your solar PV system's energy output in Lockhart, United States (Lat/Long 29.8903, -97.6689) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lockhart, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lockhart, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	35° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lockhart, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lockhart, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lockhart, United States

Topography Around Lockhart, Texas

The terrain surrounding Lockhart, Texas is characterized by gently rolling hills and relatively flat plains that are typical of the central Texas landscape. This area sits within the Blackland Prairie region, which extends across much of central Texas and features predominantly level to gently undulating topography. The elevation around Lockhart ranges from approximately 400 to 600 feet above sea level, with subtle variations creating a landscape of low hills and shallow valleys. The geological foundation consists primarily of sedimentary rocks, including limestone and clay formations that have weathered over time to create fertile soils. These soils support both agricultural activities and natural vegetation, including grasslands and scattered oak trees. The terrain is generally well-drained, with several small creeks and tributaries flowing through the area, including Plum Creek which runs near the town.

Optimal Areas for Large-Scale Solar Development

The relatively flat and gently sloping terrain around Lockhart presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas would be the expansive open fields and pasturelands that extend in all directions from the town, particularly those with minimal tree coverage and consistent southern exposure. Areas to the west and southwest of Lockhart offer particularly favorable conditions, as these zones feature large tracts of level agricultural land with minimal topographical obstacles. The gentle slopes in these areas would actually benefit solar installations by providing natural drainage while maintaining optimal panel positioning. The existing agricultural infrastructure, including access roads and utility connections, would facilitate construction and maintenance operations. The terrain north and east of Lockhart also presents viable options for solar development, though these areas may require more careful site selection due to slightly more varied topography and scattered tree coverage. The key advantage throughout the region is the absence of significant elevation changes that would create shading issues or require extensive grading work. Agricultural lands that are currently used for cattle grazing or crop production could be particularly well-suited for solar development, as these areas are already cleared and have established access routes. The relatively stable clay and limestone substrate would provide good foundation conditions for mounting systems, while the gentle topography would minimize the need for extensive site preparation work.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
