Los Fresnos, Texas, located in the Northern Sub Tropics at coordinates 26.0717, -97.4764, presents a reasonably good location for year-round solar energy generation, though with notable seasonal variations in output.

Seasonal Solar Performance

The location shows strong summer performance with solar panels producing 6.71 kWh per day per kW of installed capacity. Spring follows as the second-best season at 5.39 kWh/day per kW, while autumn generates 5.17 kWh/day per kW. Winter sees the lowest production at 3.62 kWh/day per kW, representing nearly a 46% drop from peak summer output. For optimal year-round energy capture, fixed solar panels at this location should be tilted at 23 degrees facing south. This angle maximizes total annual production by accounting for the sun's varying position throughout the year and weighting the angles based on solar irradiance data.

Environmental and Weather Challenges

Los Fresnos faces several significant environmental factors that can impede solar production:

• Hurricane and tropical storm activity - The location's proximity to the Gulf of Mexico makes it vulnerable to severe weather events that can damage solar installations
• High humidity and salt air - Being near the coast, salt-laden air can accelerate corrosion of solar equipment and mounting hardware
• Frequent thunderstorms - Summer months bring intense storms with hail, high winds, and lightning strikes
• Dust and debris accumulation - The semi-arid climate can lead to dust buildup on panels, reducing efficiency

Preventative Installation Measures

To maximize energy production despite these challenges, several protective measures should be implemented. Installing panels with reinforced mounting systems rated for high wind loads helps protect against storm damage, while using marine-grade aluminum or stainless steel components resists salt air corrosion. Proper grounding and surge protection systems are essential given the area's lightning activity. Regular cleaning schedules help maintain panel efficiency by removing dust and debris accumulation. Additionally, choosing panels with anti-reflective coatings and robust frame construction provides better long-term performance in this challenging coastal environment. Despite these environmental considerations, Los Fresnos remains a viable location for solar energy generation, particularly during the extended warm season from spring through autumn when production levels are consistently strong.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

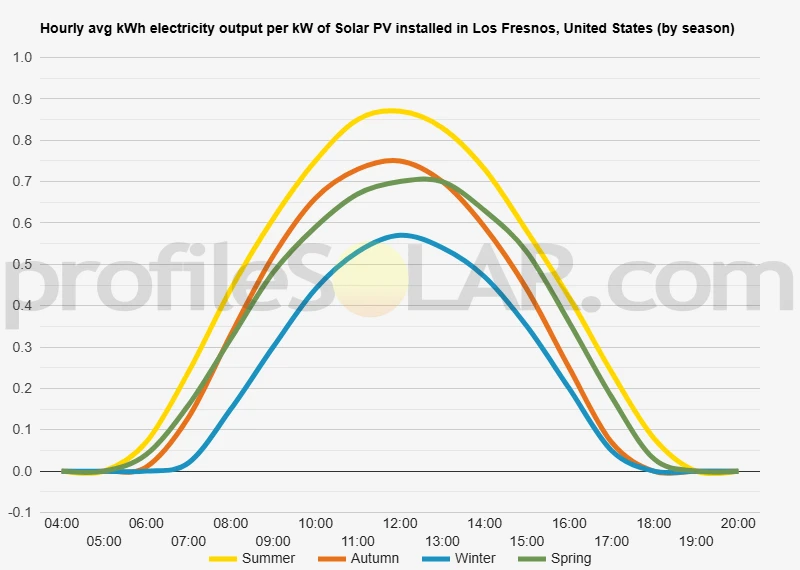

Solar output per kW of installed solar PV by season in Los Fresnos

Seasonal solar PV output for Latitude: 26.0717, Longitude: -97.4764 (Los Fresnos, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° South in Los Fresnos, United States

To maximize your solar PV system's energy output in Los Fresnos, United States (Lat/Long 26.0717, -97.4764) throughout the year, you should tilt your panels at an angle of 23° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Los Fresnos, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Los Fresnos, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	31° South in Autumn	42° South in Winter	19° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Los Fresnos, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Los Fresnos, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Los Fresnos, United States

Topographical Features of Los Fresnos

Los Fresnos sits in the Rio Grande Valley of extreme southern Texas, positioned within Cameron County near the Mexican border. The terrain around this community is characterized by remarkably flat coastal plains that extend for miles in every direction. This region represents part of the broader Gulf Coastal Plain, where elevation changes are minimal and the landscape maintains a consistently level profile. The area surrounding Los Fresnos features elevations that rarely exceed 50 feet above sea level, with most of the terrain hovering between 20 to 40 feet in elevation. The topography consists primarily of gently rolling prairie land interspersed with agricultural fields, creating an expansive and relatively uniform landscape. Natural drainage patterns flow eastward toward the Laguna Madre and the Gulf of Mexico, though the gradual slopes are so subtle they're barely perceptible to the naked eye.

Soil and Land Characteristics

The underlying geology consists of sedimentary deposits laid down over millennia by the Rio Grande River system. These alluvial soils create fertile agricultural land that has been extensively cultivated for decades. Much of the surrounding area features clay-rich soils with good structural stability, though seasonal variations in moisture content can affect ground conditions. Vegetation in the region includes native brush species, mesquite, and various grasses typical of South Texas. Agricultural development has transformed significant portions of the landscape into farmland dedicated to crops such as cotton, sorghum, and citrus groves. Ranch land used for cattle grazing also occupies substantial acreage throughout the area.

Optimal Areas for Large-Scale Solar Development

The flat topography around Los Fresnos presents excellent opportunities for large-scale solar photovoltaic installations. Areas immediately northwest and northeast of the community offer particularly suitable conditions, where the terrain remains consistently level across extensive tracts of land. These zones provide the minimal grading requirements that make solar development economically attractive. Agricultural areas that have been previously cleared and leveled represent prime candidates for solar development. The existing infrastructure access along farm roads and proximity to electrical transmission lines further enhance the viability of these locations. Areas with established agricultural use often have fewer environmental constraints and streamlined permitting processes compared to undeveloped natural habitats. The region west toward Harlingen and north toward San Benito contains numerous large parcels of relatively flat land suitable for utility-scale solar projects. These areas benefit from existing transportation networks and electrical infrastructure while maintaining the favorable topographical conditions necessary for efficient solar panel installation and maintenance. Ranch land in the area also presents opportunities, particularly where the terrain has been cleared for grazing and maintains consistent elevation profiles. The combination of flat topography, clear sight lines, and minimal shading obstacles creates ideal conditions for maximizing solar energy capture throughout the day.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
