Cairo, Illinois, located in the Northern Temperate Zone at the confluence of the Mississippi and Ohio rivers, offers moderate solar energy potential with significant seasonal variation that affects year-round solar PV generation.

Seasonal Solar Performance

The solar energy output at this location shows typical temperate zone patterns. Summer provides the highest production at 6.65 kWh per day per kW of installed solar capacity, making it the peak generation season. Spring follows as the second-best performing season with 5.49 kWh per day per kW, offering excellent solar conditions as daylight hours increase and weather clears. Autumn production drops to 4.13 kWh per day per kW as the sun angle decreases and weather patterns change. Winter presents the most challenging conditions with only 2.42 kWh per day per kW, representing less than half of summer production levels. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 32 degrees facing south. This angle maximizes total annual production by balancing the sun's varying elevation throughout the seasons.

Local Environmental Challenges

Cairo's location at the river confluence creates several environmental factors that can impact solar production. The area experiences high humidity levels due to its proximity to two major rivers, which can reduce solar panel efficiency and create more frequent condensation on panel surfaces. The region is prone to severe weather events including thunderstorms, hail, and occasional tornadoes during spring and summer months. These weather patterns can damage solar installations and create temporary production losses due to cloud cover and storm activity. River valley locations like Cairo often experience morning fog and mist, particularly during cooler months, which can delay the start of daily solar production and reduce overall efficiency during these periods.

Preventative Installation Measures

To maximize solar production despite these challenges, several installation strategies prove effective:

• Install panels with adequate spacing and ventilation to combat humidity effects and allow proper air circulation
• Use impact-resistant glass and reinforced mounting systems to withstand hail and severe weather
• Implement regular cleaning schedules to remove river-deposited dust and debris
• Consider micro-inverters or power optimizers to minimize production losses when partial shading occurs from fog or weather

Overall Assessment

While Cairo, Illinois faces some environmental challenges due to its river valley location, the solar potential remains reasonable for the region. The strong summer and spring production can offset lower winter generation, though the significant seasonal variation means solar installations should be sized appropriately to meet energy needs during lower-production months. The location's environmental factors are manageable with proper installation techniques and maintenance practices, making solar PV a viable renewable energy option despite the moderate climate challenges.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

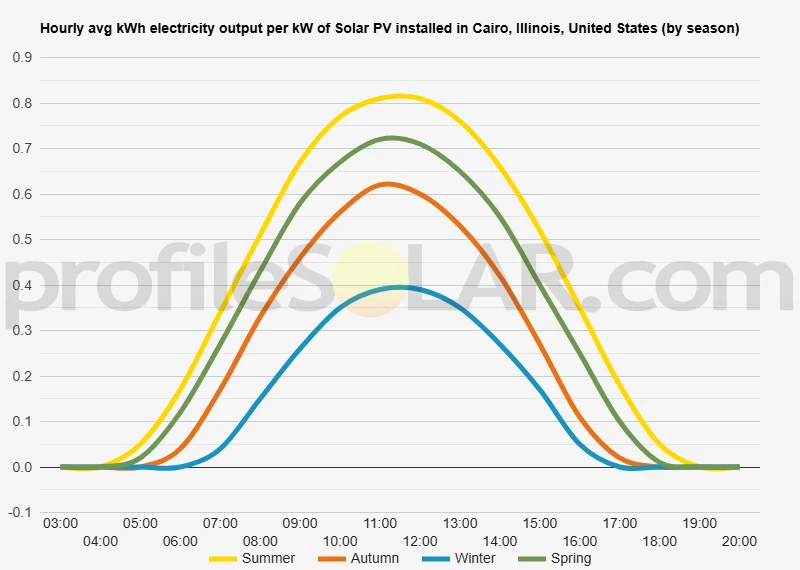

Solar output per kW of installed solar PV by season in Cairo, Illinois

Seasonal solar PV output for Latitude: 37.0122, Longitude: -89.1743 (Cairo, Illinois, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° South in Cairo, Illinois, United States

To maximize your solar PV system's energy output in Cairo, Illinois, United States (Lat/Long 37.0122, -89.1743) throughout the year, you should tilt your panels at an angle of 32° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cairo, Illinois, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cairo, Illinois, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
21° South in Summer	41° South in Autumn	52° South in Winter	30° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cairo, Illinois, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cairo, Illinois, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cairo, Illinois, United States

Topographical Features of the Cairo Region

Cairo, Illinois sits at the southern tip of the state where the Ohio River meets the Mississippi River. This strategic location places the city on relatively flat terrain within the Mississippi River floodplain, with elevations typically ranging from 300 to 400 feet above sea level. The immediate area around Cairo is characterized by low-lying bottomlands that have been shaped by centuries of river activity and periodic flooding. The landscape consists primarily of alluvial deposits left behind by the two major rivers, creating fertile but occasionally flood-prone agricultural land. To the north and east of Cairo, the terrain gradually rises into gently rolling hills that mark the transition from the river bottoms to higher ground. These elevated areas, while still relatively modest in height, provide better drainage and more stable foundation conditions.

River Influence and Drainage Patterns

The confluence of the Ohio and Mississippi Rivers creates a unique hydrological environment that significantly influences the local topography. The rivers have carved wide valleys through the region, leaving behind terraced landscapes with distinct elevation changes between the active floodplains and the older, higher terraces. Natural levees along the riverbanks create slight ridges that are often the highest points in the immediate vicinity of Cairo. Wetlands and backwater areas are common throughout the region, particularly during periods of high water. These areas create a patchwork of land uses, with some sections suitable for agriculture during dry periods and others remaining permanently marshy. The Cache River, which flows through the area, adds another drainage pattern that influences the local terrain.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Cairo region would be found on the higher terraces and gently sloping uplands that lie beyond the immediate floodplains. These areas, typically located several miles north and east of the city, offer stable ground conditions and reduced flood risk while maintaining the relatively flat to gently rolling topography that makes solar installation cost-effective. The agricultural fields on these elevated terraces present particularly attractive opportunities for solar development. These areas combine the advantages of cleared land, good drainage, and adequate elevation above flood levels. The gentle slopes found in these locations, typically less than five percent grade, are ideal for solar panel installation as they provide natural drainage while minimizing the need for extensive grading or earthwork. Areas along the bluffs that overlook the river valleys also present good potential, particularly on south-facing slopes that would naturally optimize solar exposure. While these locations may require more careful engineering due to their sloped nature, they offer excellent drainage and are well above any flood concerns.

Infrastructure and Access Considerations

The region's flat to gently rolling topography generally supports good road access, which is essential for large-scale solar installations. The agricultural nature of much of the suitable land means that existing farm roads and field access points could potentially be upgraded to support construction and maintenance activities. The relatively stable geology of the higher terraces also supports heavy equipment access needed during installation phases. The proximity to major river transportation corridors and existing electrical transmission infrastructure adds to the attractiveness of certain locations. Areas within reasonable distance of existing power transmission lines would be particularly cost-effective for solar development, as the flat terrain makes running new transmission connections relatively straightforward compared to more mountainous regions.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
