Solar Energy Potential in Santa Fe, Texas

Santa Fe, Texas, located in the Northern Sub Tropics at coordinates 29.3996, -95.073, offers good potential for solar PV energy generation throughout the year, though with notable seasonal variations.

Seasonal Energy Production

The energy output from solar PV systems in Santa Fe demonstrates clear seasonal patterns:

• Summer: 6.40 kWh per day per kW installed (highest production)
• Spring: 5.22 kWh per day per kW installed
• Autumn: 4.84 kWh per day per kW installed
• Winter: 3.26 kWh per day per kW installed (lowest production)

As these figures show, summer months provide nearly twice the energy production compared to winter months. Spring and autumn (fall) offer moderate production levels, making Santa Fe a location where solar energy generation is viable year-round, though with significant seasonal differences.

Optimal Panel Installation

For fixed solar panel installations in Santa Fe, the ideal tilt angle to maximize year-round production is 26 degrees facing South. This specific angle has been calculated to optimize annual energy capture based on Santa Fe's latitude and seasonal sun positions.

Environmental and Weather Considerations

Several local factors could impact solar production in Santa Fe: Hurricane risk poses a significant concern, as the Gulf Coast location makes the area vulnerable to tropical storms and hurricanes from June through November. These events can bring heavy cloud cover, reducing production, and potentially damaging equipment. Installation with hurricane-rated mounting systems and panels rated for high wind loads is advisable. High humidity levels in this subtropical region can reduce panel efficiency slightly and potentially accelerate weathering of equipment. Using marine-grade components and ensuring proper sealing of electrical connections can mitigate these issues. Occasional hailstorms may occur in spring months, presenting a risk to panel integrity. Installing hail-resistant panels (those tested to withstand impact) would be a prudent preventative measure. Dust and pollen accumulation is another consideration, particularly during spring when pollen counts are high and during dry periods when dust can settle on panels. Implementing a regular cleaning schedule or installing automated cleaning systems can help maintain optimal performance. Despite these challenges, Santa Fe's location provides sufficient solar resources throughout the year to make solar PV systems a viable energy option, with summer being the prime production season.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

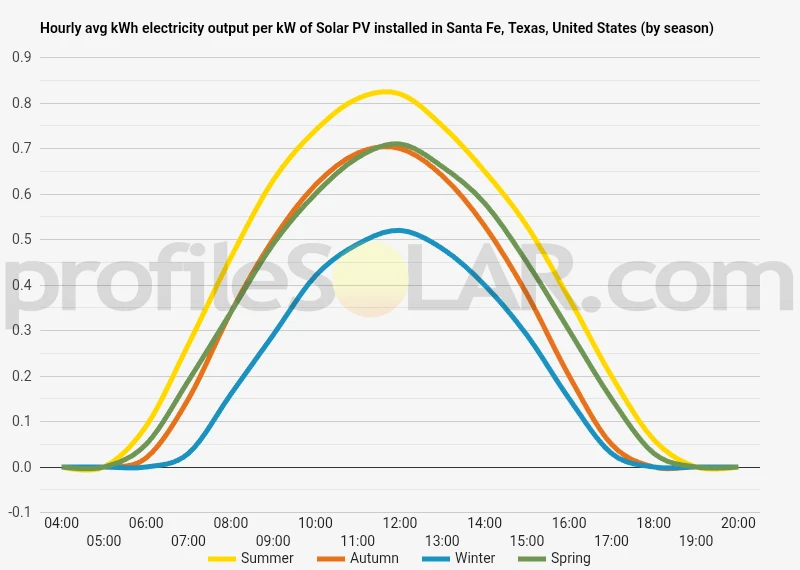

Solar output per kW of installed solar PV by season in Santa Fe, Texas

Seasonal solar PV output for Latitude: 29.3996, Longitude: -95.073 (Santa Fe, Texas, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° South in Santa Fe, Texas, United States

To maximize your solar PV system's energy output in Santa Fe, Texas, United States (Lat/Long 29.3996, -95.073) throughout the year, you should tilt your panels at an angle of 26° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Santa Fe, Texas, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Santa Fe, Texas, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	34° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Santa Fe, Texas, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Santa Fe, Texas, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Santa Fe, Texas, United States

Santa Fe, Texas is situated in Galveston County along the Texas Gulf Coast region, approximately 30 miles southeast of Houston. The topography around Santa Fe is characterized by predominantly flat terrain typical of the coastal plains of Texas. The area sits at a relatively low elevation, averaging about 25-35 feet above sea level, with minimal variation in the immediate vicinity. The landscape consists of coastal prairie that gradually transitions into wetlands as one moves eastward toward Galveston Bay. This flat topography is part of the larger Gulf Coastal Plain physiographic region, formed by sedimentary deposits over millions of years. The soil composition is primarily alluvial, consisting of sand, silt, and clay deposits that were laid down by ancient river systems and marine processes.

Solar PV Potential Areas

The flat, open nature of the terrain around Santa Fe presents several advantages for large-scale solar photovoltaic (PV) development. Areas to the west and northwest of Santa Fe offer particularly suitable conditions for solar installations. These regions feature extensive tracts of relatively undeveloped land with minimal shading from natural features or tall structures. The rural areas surrounding Santa Fe, particularly along the FM 646 and FM 1764 corridors, contain agricultural and pasture lands that could potentially be repurposed for solar energy production. These locations benefit from the minimal topographical variation, which reduces construction complexities and associated costs for large-scale installations.

Considerations for Development

While the flat terrain is advantageous, potential solar developers should note that the proximity to the Gulf Coast means this region experiences periodic hurricanes and tropical storms. The low-lying nature of the area also makes certain sections susceptible to flooding during heavy rainfall events. Therefore, the slightly elevated areas to the west of Santa Fe, moving toward Alvin and Manvel, might offer better protection from these hydrological concerns. The southeastern portions of Galveston County, closer to the coastline, would be less ideal for solar development due to increased flood risks, potential storm surge impacts, and the presence of more wetland areas that would face environmental protection restrictions. The northwestern corridor extending from Santa Fe toward Houston represents the most promising direction for solar development, combining favorable topography with proximity to existing transmission infrastructure that could facilitate grid connection for new solar facilities.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
