Mansfield, Pennsylvania, located in the Northern Temperate Zone, offers a varied landscape for solar energy production throughout the year. This location experiences significant seasonal fluctuations in solar output, which impacts the overall efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

Summer stands out as the prime season for solar energy generation in Mansfield, with an impressive daily output of 5.90 kWh per kW of installed solar capacity. Spring follows closely behind, producing 5.16 kWh/day. However, the colder months see a substantial drop in production, with autumn yielding 3.04 kWh/day and winter bottoming out at 1.94 kWh/day.

These figures highlight the stark contrast between the warm and cold seasons, emphasizing the importance of maximizing solar collection during the longer, sunnier days of late spring through early fall.

Optimal Panel Positioning

To achieve the best year-round solar production in Mansfield, fixed panels should be tilted at a 36-degree angle facing south. This optimal angle takes into account the location's latitude and the sun's changing position throughout the year, ensuring maximum exposure to sunlight across all seasons.

Environmental Considerations

While Mansfield's location is generally favorable for solar energy, there are some environmental factors to consider:

• Snowfall: The region experiences significant snowfall in winter, which can temporarily reduce panel efficiency. Installing panels at the recommended angle helps with snow shedding.
• Cloud cover: Mansfield sees a fair amount of cloudy days, particularly in winter. Using high-efficiency panels can help mitigate the impact of reduced direct sunlight.

To address these challenges, consider using snow guards to prevent snow slides, implementing a regular cleaning schedule, and choosing panels with anti-soiling coatings. Additionally, a robust mounting system can protect against potential wind damage during storms.

In conclusion, while Mansfield's solar potential varies significantly throughout the year, proper panel positioning and preventative measures can help maximize energy production, making solar PV a viable option for this Pennsylvania location.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

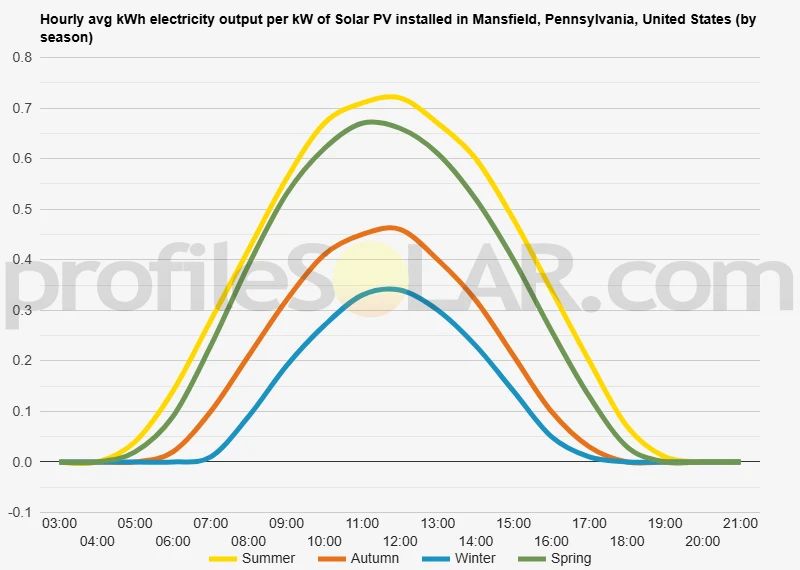

Solar output per kW of installed solar PV by season in Mansfield, Pennsylvania

Seasonal solar PV output for Latitude: 41.8107, Longitude: -77.0685 (Mansfield, Pennsylvania, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Mansfield, Pennsylvania, United States

To maximize your solar PV system's energy output in Mansfield, Pennsylvania, United States (Lat/Long 41.8107, -77.0685) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mansfield, Pennsylvania, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mansfield, Pennsylvania, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	46° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mansfield, Pennsylvania, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mansfield, Pennsylvania, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mansfield, Pennsylvania, United States

The topography around Mansfield, Pennsylvania, is characterized by rolling hills, valleys, and forested areas typical of the Appalachian Plateau region. This area is part of the Northern Tier of Pennsylvania, which features a mix of gentle slopes and steeper terrain. The landscape is dotted with small streams and rivers that have carved out shallow valleys over time, creating a varied and picturesque environment. Mansfield itself sits in a relatively flat area along the Tioga River, surrounded by higher elevations. As you move away from the town, the terrain becomes more undulating, with elevations generally increasing. The region is known for its scenic beauty, with a mix of agricultural land, woodland, and small settlements nestled among the hills.

Solar PV Potential

When considering areas nearby that would be most suited to large-scale solar PV installations, there are several factors to consider. The ideal locations would be relatively flat or gently sloping areas with good southern exposure. These conditions help maximize sunlight capture throughout the day and reduce installation complexity. Some of the more promising areas for solar PV development might be found on the tops of the broader hills or ridges in the region, where tree cover is less dense and there's less shadowing from surrounding terrain. Additionally, some of the cleared agricultural land in the valleys could potentially be suitable, especially larger fields that are not prime farmland. However, it's important to note that the region's climate, with its frequent cloud cover and significant snowfall in winter, may present challenges for solar energy production. Any large-scale solar project would need to carefully consider these factors, as well as local zoning regulations and environmental impacts. Overall, while the topography around Mansfield presents some challenges for large-scale solar PV, there are likely to be suitable areas within a reasonable distance of the town. A detailed site survey and environmental assessment would be necessary to identify the most promising locations for such a project.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
