Manahawkin, New Jersey offers reasonably good conditions for year-round solar energy generation, though with significant seasonal variation typical of locations in the Northern Temperate Zone.

Seasonal Solar Performance

The solar output data shows that summer provides the strongest energy production at 6.31 kWh per day per kW of installed capacity. Spring follows as the second-best season with 5.55 kWh per day per kW, making these two seasons ideal for solar generation at this location. Autumn sees a notable drop to 3.75 kWh per day per kW, while winter presents the most challenging conditions with only 2.24 kWh per day per kW. This winter output represents about 35% of summer production, which is a substantial seasonal difference that homeowners and businesses should factor into their energy planning.

Optimal Panel Installation

For fixed solar panel installations at Manahawkin, the ideal tilt angle is 34 degrees facing south. This angle maximizes total year-round energy production by optimizing the panels' exposure to the sun's path throughout all seasons.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Manahawkin area can impact solar energy generation:

• Coastal weather patterns: Being located near the Atlantic coast, the area experiences frequent cloud cover, fog, and marine layer conditions that can reduce solar irradiance
• Snow accumulation: Winter snow can cover panels and significantly reduce output during the already low-production winter months
• Salt air exposure: The coastal location means panels face salt air that can cause corrosion and reduce efficiency over time
• Storm damage risk: The region is susceptible to nor'easters and occasional hurricanes that can damage solar installations

Preventative Measures for Better Performance

To maximize solar production despite these challenges, several installation strategies can help:

• Use marine-grade components: Install panels and mounting systems specifically designed to resist salt corrosion
• Steeper tilt angles: Consider slightly steeper angles than the optimal 34 degrees to help snow slide off more easily
• Regular cleaning schedule: Establish routine cleaning to remove salt buildup and debris
• Robust mounting systems: Use heavy-duty mounting hardware rated for high wind loads to withstand coastal storms
• Strategic placement: Position panels away from areas where snow might drift and ensure good drainage

Despite these challenges, Manahawkin's solar potential remains viable for year-round energy generation, particularly during the productive spring and summer months when output is strong.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

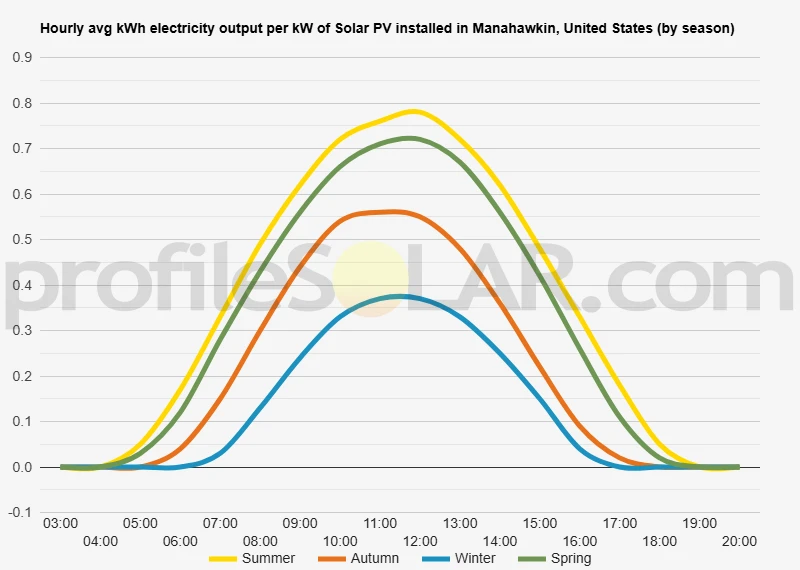

Solar output per kW of installed solar PV by season in Manahawkin

Seasonal solar PV output for Latitude: 39.6999, Longitude: -74.2633 (Manahawkin, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Manahawkin, United States

To maximize your solar PV system's energy output in Manahawkin, United States (Lat/Long 39.6999, -74.2633) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Manahawkin, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Manahawkin, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	44° South in Autumn	55° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Manahawkin, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Manahawkin, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Manahawkin, United States

Topography and Terrain Around Manahawkin

The topography surrounding Manahawkin, New Jersey is characterized by relatively flat, low-lying coastal terrain typical of the Atlantic Coastal Plain. This area sits at an elevation of approximately 10 to 20 feet above sea level, with gentle undulations rather than dramatic elevation changes. The landscape consists primarily of sandy soils and pine barrens ecosystem, interspersed with wetlands, salt marshes, and tidal creeks that connect to Barnegat Bay to the east. The region features extensive areas of scrub pine and oak forests, known locally as the Pine Barrens, which stretch inland from the coast. These forests grow on well-drained sandy soils that were deposited during ancient marine transgressions. Closer to the bay, the terrain transitions into salt marshes and estuarine environments, creating a complex mosaic of wetland habitats that are protected under various environmental regulations.

Drainage and Water Features

The area's drainage patterns are dominated by numerous small streams and creeks that meander through the landscape toward Barnegat Bay. These waterways create a network of wetlands and flood-prone areas that would be unsuitable for large infrastructure projects. The Cedar Creek and several smaller tributaries wind through the region, creating additional constraints on land use due to riparian buffers and flood zones. Seasonal water table fluctuations are common in this coastal environment, with groundwater levels rising during wet periods and potentially affecting foundation stability for heavy installations. The proximity to the Atlantic Ocean also means that storm surge and coastal flooding can impact areas several miles inland during severe weather events.

Optimal Areas for Large-Scale Solar Development

The most suitable areas for large-scale solar photovoltaic installations would be the elevated, well-drained upland areas located inland from Manahawkin. These zones typically feature gently rolling terrain with sandy, permeable soils that provide good drainage and stable foundation conditions. Areas approximately 5 to 15 miles west and northwest of Manahawkin offer the best combination of suitable topography and minimal environmental constraints. Former agricultural lands and cleared areas within the Pine Barrens region present excellent opportunities for solar development. These locations benefit from relatively flat terrain, existing road access, and proximity to electrical transmission infrastructure. The sandy soils in these areas allow for efficient installation of ground-mounted solar arrays while minimizing grading and site preparation costs. Areas to avoid for large-scale solar development include the extensive wetlands and marshes closer to Barnegat Bay, flood-prone zones along creek corridors, and heavily forested areas that would require significant clearing. Additionally, locations within the Pinelands National Reserve may face additional regulatory scrutiny and development restrictions that could complicate permitting processes. The optimal sites would be those elevated areas with southern exposure, minimal shading from existing vegetation, and good access to existing electrical grid infrastructure. These characteristics are most commonly found on the slightly higher ground inland from the immediate coastal zone, where the terrain remains relatively flat but rises above potential flood elevations.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
