Solar PV Analysis of Mansfield, United States
Mansfield, Texas, which is located in the Northern Sub Tropics of the United States, can be a good location for generating energy via solar photovoltaic (PV) systems year-round. The amount of electricity that can be produced from each kilowatt (kW) of installed solar varies by season. During summer months, you can expect about 7 kilowatt-hours (kWh) per day. In autumn and spring, this drops slightly to around 5 kWh/day. The lowest output is in winter months with about 3.31 kWh/day.
The most ideal times to generate solar energy at this location would be during the summer when sunlight is abundant and the days are longer. However, even during other seasons like autumn and spring, there's still a decent amount of energy production due to moderate sunlight levels.
To maximize total year-round production from your solar PV system in Mansfield, Texas, it's recommended that fixed panel installations should tilt towards an angle of 29 degrees South. This position allows for optimal exposure to sunlight throughout different times of the day and various seasons.
As for possible barriers to solar production at this location; environmental factors such as cloud cover or dust could potentially reduce efficiency by blocking sunlight reaching the panels especially during winter months when weather conditions might not be as favorable compared to other seasons.
Topography could also play a role if there are hills or tall buildings casting shadows on your panels reducing their exposure to direct sunlight.
Preventative measures include regular cleaning and maintenance checks on your panels ensuring they're free from dust or debris that might block sunlight absorption thus improving overall efficiency and performance levels year-round despite varying seasonal conditions.
Weather-related issues like strong winds or hailstorms could potentially damage your panels so investing in sturdy mounting equipment along with some form protective covering might be beneficial too especially if these weather conditions are common at this specific location.
In conclusion; while Mansfield, Texas has its challenges in terms of solar energy production due to seasonal variations and potential environmental or topography issues, with the right setup and maintenance strategies, it can still be a beneficial site for solar energy generation.
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in the United States by location

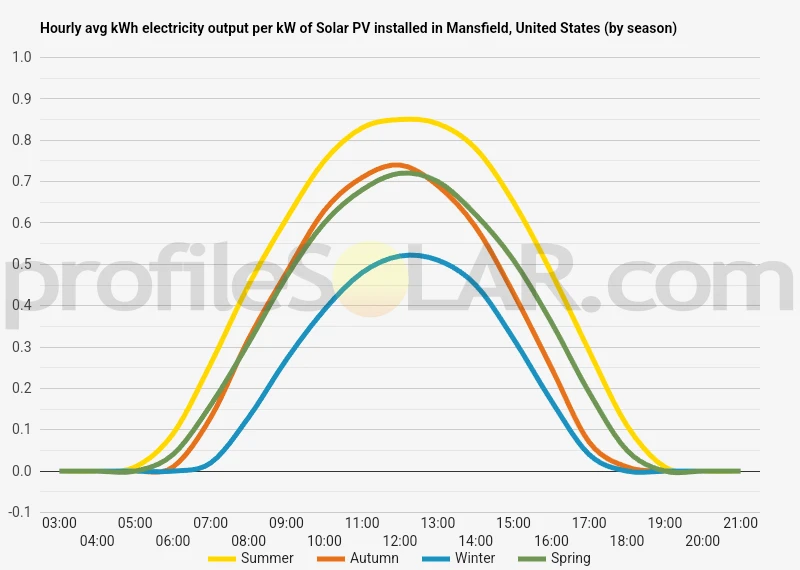

Solar output per kW of installed solar PV by season in Mansfield
Seasonal solar PV output for Latitude: 32.5817, Longitude: -97.1399 (Mansfield, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 29° South in Mansfield, United States
To maximize your solar PV system's energy output in Mansfield, United States (Lat/Long 32.5817, -97.1399) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Mansfield, United States
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mansfield, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 16° South in Summer | 37° South in Autumn | 48° South in Winter | 26° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Mansfield, United States
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mansfield, United States.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Mansfield, United States
Mansfield, United States is located in the state of Texas. The topography around Mansfield is generally flat to gently rolling with some areas of low hills. The area is part of the larger North Central Plains region and features a mix of grassland and forested areas.
Given this topography, large-scale solar PV installations would be most suited for the flat or gently rolling areas that receive plenty of sunlight throughout the year. These characteristics make it easier to install and maintain solar panels while maximizing their exposure to sunlight.
Texas also has a high annual average amount of sunny days, which makes it a suitable location for solar energy production. Areas with less tree coverage would be particularly well-suited so as not to obstruct sunlight reaching the solar panels.
It's also important to consider proximity to existing power grids for ease of connecting the generated electricity, as well as local regulations and community attitudes towards renewable energy projects when choosing a site for large-scale solar PV installations.
Finally, remember that any specific site selection should involve an on-the-ground assessment by professionals in order to account for all necessary factors like soil stability, access roads etc., before making a final decision about suitability.
United States solar PV Stats as a country
United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United States?
Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
