Marlton, New Jersey presents a moderately favorable location for year-round solar PV energy generation, though with significant seasonal variations typical of the Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output at this location shows the characteristic pattern of temperate climates, with summer delivering the highest production at 6.31 kWh per day per kW of installed capacity. Spring follows as the second-best season with 5.55 kWh per day per kW, while autumn drops to 3.75 kWh per day per kW. Winter presents the most challenging conditions with only 2.24 kWh per day per kW of production. Summer and spring represent the ideal times for solar generation at this location, accounting for roughly 65% of the year's optimal production periods. The substantial drop-off during winter months means that solar installations need to be sized appropriately to account for this seasonal variation in output.

Optimal Panel Configuration

For maximum year-round energy production at Marlton, fixed solar panels should be tilted at 34 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's changing position throughout the year and weighting for the varying solar irradiance levels across seasons.

Local Environmental Factors

Several environmental and weather factors in the Marlton area can impact solar energy production:

• Snow accumulation during winter months can block panels and reduce output
• Frequent cloud cover and precipitation, particularly during autumn and winter
• Humidity and haze common in summer months can reduce solar irradiance
• Deciduous tree coverage that may create seasonal shading issues
• Atlantic coastal weather patterns bringing periodic storms and extended cloudy periods

Preventative Installation Measures

To maximize solar production despite these challenges, several installation strategies prove effective. Panels should be mounted with adequate tilt to promote natural snow shedding, and positioned high enough to avoid ground-level snow reflection issues. Careful site selection away from large deciduous trees prevents seasonal shading problems as leaves grow in spring and summer. Installing panels with anti-reflective coatings helps maintain efficiency during hazy summer conditions. Proper spacing between panel rows prevents self-shading and allows for maintenance access. A robust monitoring system enables quick identification of performance issues during the frequent weather changes typical of New Jersey's climate. Regular maintenance scheduling becomes particularly important, with pre-winter inspections and post-storm assessments helping ensure optimal performance year-round. Given the significant seasonal variation in output, battery storage or grid-tie systems should be designed to accommodate the winter production deficit while taking advantage of the strong summer and spring generation periods.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

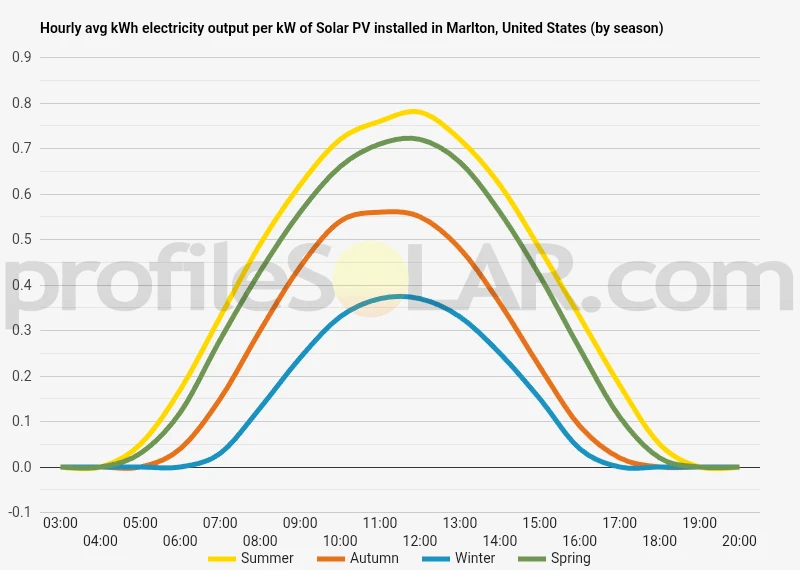

Solar output per kW of installed solar PV by season in Marlton

Seasonal solar PV output for Latitude: 39.8845, Longitude: -74.9067 (Marlton, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Marlton, United States

To maximize your solar PV system's energy output in Marlton, United States (Lat/Long 39.8845, -74.9067) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Marlton, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Marlton, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	44° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Marlton, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Marlton, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Marlton, United States

Topographical Features Around Marlton

Marlton sits in the heart of New Jersey's Coastal Plain region, characterized by relatively flat terrain with gentle rolling hills and minimal elevation changes. The area lies at approximately 100 feet above sea level, making it part of the broader Mid-Atlantic lowlands that extend from the Delaware River eastward toward the Atlantic Ocean. This gently undulating landscape consists primarily of sandy soils and clay deposits left behind by ancient marine environments.

The immediate vicinity around Marlton features a mix of developed suburban areas interspersed with patches of preserved woodland and agricultural land. Small streams and tributaries flow through the region, creating subtle valleys and drainage patterns that add minor variations to the otherwise level topography. The terrain gradually slopes toward the Delaware River to the west, while maintaining relatively consistent elevations throughout most of the surrounding area.

Dense residential and commercial development characterizes much of the landscape within a five-mile radius of Marlton, with shopping centers, office parks, and housing subdivisions occupying significant portions of the available land. However, pockets of undeveloped or lightly developed areas still exist, particularly in the more rural sections extending outward from the town center.

Optimal Areas for Large-Scale Solar Development

The flat to gently rolling topography around Marlton creates generally favorable conditions for solar photovoltaic installations, though land availability poses the primary challenge for large-scale projects. The most suitable areas for substantial solar developments would be found in the less densely populated zones extending southwest toward the Delaware River and northeast toward more rural sections of Burlington County.

Agricultural areas and former farmland represent the most promising opportunities for large-scale solar installations. These locations typically offer substantial contiguous acreage with minimal existing infrastructure conflicts. The relatively level terrain in these agricultural zones eliminates the need for extensive site preparation or grading work that would be required in more challenging topographical conditions.

Industrial and commercial zones on the outskirts of the more developed areas also present viable options for solar development. Former industrial sites, brownfields, or large commercial properties with expansive parking areas could accommodate significant solar installations while taking advantage of existing electrical infrastructure and road access.

The areas immediately adjacent to major transportation corridors, including Interstate 95 and Route 73, offer additional development potential. These locations benefit from excellent accessibility for construction and maintenance activities while often featuring larger parcels of land that remain undeveloped due to traffic noise or other factors that make them less desirable for residential use.

Regions with southern-facing slopes, even gentle ones, would provide optimal solar exposure throughout the day. The minimal topographical relief in the area means that most locations avoid significant shading issues from hills or ridges, creating consistent conditions across large areas suitable for solar panel arrays.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
