Maxwell, Texas, located in the Northern Sub Tropics at coordinates 29.881, -97.7933, presents a reasonably good location for year-round solar energy generation, though with notable seasonal variations in output.

Seasonal Solar Performance

The solar energy production at Maxwell shows significant seasonal fluctuations. Summer delivers the highest output at 6.72 kWh per day per kW of installed solar capacity, making it the peak season for energy generation. Spring follows as the second-best performing season with 5.42 kWh per day per kW, while autumn provides moderate production at 5.11 kWh per day per kW. Winter presents the most challenging period for solar generation, dropping to just 3.31 kWh per day per kW of installed capacity. This represents less than half of summer's peak output, highlighting the importance of proper system sizing and energy storage planning for year-round reliability.

Optimal Installation Configuration

For maximum year-round solar production at Maxwell, fixed solar panels should be tilted at 27 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year, determining daily optimal panel tilts, and weighting these angles by daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Local Environmental Challenges

Several environmental and weather factors in the Maxwell, Texas region can significantly impact solar energy production:

• Severe thunderstorms and hail events common in Central Texas can damage solar panels
• High humidity levels and occasional fog, particularly in spring and fall, can reduce solar irradiance
• Dust and pollen accumulation on panels, especially during spring months
• Extreme heat in summer can reduce panel efficiency despite high solar irradiance
• Occasional ice storms in winter can temporarily block panels and potentially cause damage

Preventative Measures for Enhanced Production

To maximize solar energy production despite these challenges, several preventative measures should be implemented during installation: Panel protection systems are essential in this region. Installing impact-resistant tempered glass or protective screens can help panels withstand hail damage. Choosing panels with higher temperature coefficients will maintain better performance during extreme summer heat. Regular maintenance scheduling becomes crucial for optimal performance. Implementing automated cleaning systems or establishing quarterly manual cleaning schedules will address dust and pollen buildup. Installing monitoring systems can quickly identify performance drops due to soiling or damage. Proper mounting and electrical protection should include robust racking systems designed for high wind loads and lightning protection systems due to frequent thunderstorm activity. Ensuring adequate ventilation behind panels helps manage the heat buildup that reduces efficiency during hot Texas summers.

Overall Assessment

Maxwell, Texas offers decent solar potential with strong summer and spring performance, though winter production limitations require careful system planning. While environmental challenges exist, they can be effectively managed through proper installation techniques and maintenance practices, making this location viable for solar energy generation with appropriate precautions.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

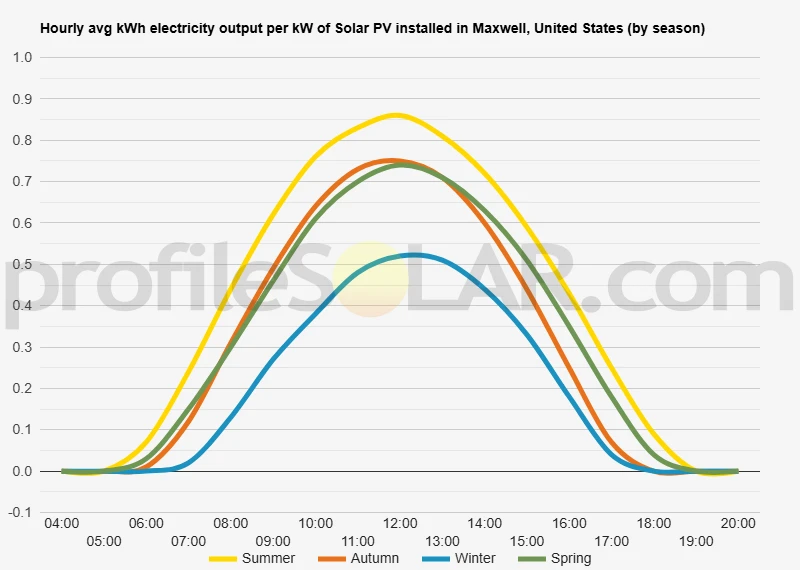

Solar output per kW of installed solar PV by season in Maxwell

Seasonal solar PV output for Latitude: 29.881, Longitude: -97.7933 (Maxwell, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Maxwell, United States

To maximize your solar PV system's energy output in Maxwell, United States (Lat/Long 29.881, -97.7933) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Maxwell, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Maxwell, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	35° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Maxwell, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Maxwell, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Maxwell, United States

Topography Around Maxwell, Texas

Maxwell is located in Caldwell County, Texas, positioned in the gently rolling terrain characteristic of the Texas Hill Country's eastern edge. The landscape around Maxwell features predominantly flat to gently undulating topography, with elevations ranging from approximately 400 to 600 feet above sea level. This area sits within the Blackland Prairie region, which extends northeast from San Antonio toward Austin and beyond.

The terrain consists primarily of open grasslands and agricultural fields, with scattered oak mottes and creek bottomlands creating subtle variations in the otherwise relatively uniform landscape. Small seasonal creeks and drainage ways cut shallow channels through the countryside, but these features rarely create significant elevation changes or steep slopes that would complicate large-scale development projects.

The soil composition in this region includes deep, fertile clay and clay-loam soils typical of the Blackland Prairie, which provide stable foundations for construction while maintaining good drainage characteristics. The area experiences minimal geological hazards, with no significant fault lines or unstable ground conditions that would pose challenges for infrastructure development.

Optimal Areas for Large-Scale Solar Development

The relatively flat terrain surrounding Maxwell presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas would be the expansive agricultural fields and pastureland that dominate the landscape to the north, east, and south of Maxwell. These areas offer several key advantages including minimal grading requirements, easy access for construction equipment, and proximity to existing electrical transmission infrastructure.

The gently rolling topography allows for optimal panel orientation and spacing without the complications that steeper terrain would introduce. Areas with slight southern-facing slopes would be particularly advantageous, as they naturally orient solar panels toward the sun's path across the sky. The open nature of the landscape also minimizes shading concerns from trees or other obstructions.

Agricultural lands currently used for cattle grazing or crop production could be readily converted to solar installations, particularly those areas with consistent, gentle slopes and good road access. The proximity to State Highway 142 and other county roads provides excellent transportation access for construction and maintenance activities.

Areas near existing electrical transmission lines would be especially valuable for solar development, as they would minimize the infrastructure investment required to connect solar installations to the electrical grid. The relatively sparse population density in the rural areas surrounding Maxwell also reduces potential conflicts with residential development while providing ample space for large-scale solar arrays.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
