Solar Energy Generation in Meridianville, Alabama

Meridianville, Alabama, located in the Northern Sub Tropics at coordinates 34.8512, -86.5779, offers reasonably good conditions for solar PV energy generation throughout the year, though with significant seasonal variations. The solar energy production at this location follows the expected seasonal patterns, with the highest output occurring during the summer months. For each kilowatt of installed solar capacity, the system produces 6.21 kWh per day in summer, dropping to 4.38 kWh per day in autumn. Winter sees the lowest production at 2.70 kWh per day, before rebounding to 5.85 kWh per day in spring.

Seasonal Performance

The substantial difference between summer and winter production (a ratio of more than 2:1) indicates that while this location is suitable for solar energy generation, system sizing should account for these seasonal fluctuations. The strong spring and summer performance makes these seasons ideal for generating surplus energy that might offset lower winter production in net metering arrangements. For fixed panel installations in Meridianville, the ideal tilt angle to maximize year-round solar production is 30 degrees facing South. This angle optimizes the annual energy harvest by balancing seasonal sun positions.

Local Factors Affecting Solar Production

Several environmental and weather factors in Meridianville could potentially impact solar energy production:

• Humidity and cloud cover: Alabama's humid subtropical climate brings significant cloud cover, particularly during the winter months, which partially explains the lower winter production figures.
• Thunderstorms: The region experiences frequent thunderstorms, especially in summer, which can temporarily reduce solar output during otherwise peak production periods.
• Pollen and dust: Northern Alabama experiences high pollen counts in spring, which can accumulate on panels and reduce efficiency.

Preventative Measures

To maximize solar energy production in Meridianville, consider these preventative measures:

• Install panels with self-cleaning technologies or implement regular cleaning schedules, particularly after pollen season.
• Consider microinverters or power optimizers to minimize the impact of partial shading from cloud cover.
• Design systems with slightly more capacity than needed to compensate for the significant winter production drop.
• Ensure robust mounting systems that can withstand occasional strong storms while maintaining the optimal 30-degree tilt angle.

Overall, Meridianville provides a good but not exceptional location for solar PV installation. The significant seasonal variation suggests that grid-tied systems would be more practical than off-grid solutions unless substantial battery storage is incorporated to manage the winter production deficit.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

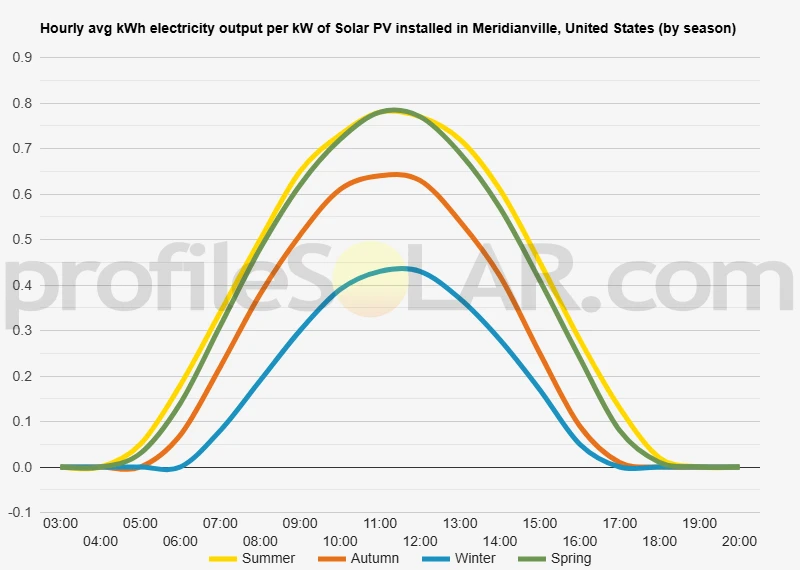

Solar output per kW of installed solar PV by season in Meridianville

Seasonal solar PV output for Latitude: 34.8512, Longitude: -86.5779 (Meridianville, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° South in Meridianville, United States

To maximize your solar PV system's energy output in Meridianville, United States (Lat/Long 34.8512, -86.5779) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Meridianville, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Meridianville, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
19° South in Summer	40° South in Autumn	50° South in Winter	27° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Meridianville, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Meridianville, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Meridianville, United States

Meridianville is situated in the northern part of Alabama, nestled within Madison County. The landscape around Meridianville presents a gentle transition between the southern edges of the Appalachian Plateau and the Tennessee River Valley. This geographic positioning creates a moderately varied topography characterized by rolling hills, shallow valleys, and gradual slopes rather than dramatic elevation changes. The terrain around Meridianville features elevations ranging from approximately 600 to 900 feet above sea level. The area sits on what geologists refer to as the Highland Rim physiographic region, which forms a relatively flat to gently undulating plateau. Small streams and creeks have carved shallow valleys throughout the region, creating the rolling aspect of the landscape that is so characteristic of this part of Alabama.

Notable Topographic Features

To the east of Meridianville, the land gradually rises toward the foothills of the southern Appalachians, with Monte Sano Mountain being a prominent feature near Huntsville. This eastern terrain becomes more rugged with increasing elevation and steeper slopes. To the west and north, the land maintains its rolling character before eventually descending toward the Tennessee River Valley. The Tennessee River itself flows in a roughly west-to-east direction about 15 miles north of Meridianville, creating a significant water feature that has shaped the broader regional topography over millennia. The soil composition in the area typically consists of clay-rich soils derived from limestone bedrock, which is common throughout much of northern Alabama. These soils support the region's agricultural activities, with many open fields and farmlands interspersed with patches of deciduous forest.

Solar PV Suitability

When considering areas near Meridianville for large-scale solar photovoltaic installations, several factors related to the topography become important. The gently rolling terrain offers many advantages for solar development, though not all areas are equally suitable. The most favorable locations for large-scale solar PV installations would be the relatively flat plateaus and gentle south-facing slopes. These areas maximize solar exposure throughout the day and minimize the need for extensive grading during construction. Specifically, the agricultural lands and open fields to the west and southwest of Meridianville present promising opportunities, as they combine favorable topography with existing land clearing. Areas to avoid would include the steeper eastern slopes toward Monte Sano and locations with significant tree cover that would require extensive clearing. Similarly, low-lying areas near streams and creeks might be prone to occasional flooding or have higher humidity levels that could affect equipment longevity. The northern Madison County area, extending toward the Tennessee state line, contains numerous agricultural properties with suitable topography for solar arrays. These areas combine the advantages of minimal slope, good drainage, and existing access to roads and transmission infrastructure. Another consideration is that the modest hills in the region rarely create significant shading issues that would hamper solar production, unlike more mountainous regions where morning and evening shadows can substantially reduce generating capacity. The limestone bedrock provides a stable foundation for mounting systems, though site-specific geotechnical studies would be necessary to confirm suitability for specific installation methods.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
