Solar Energy Potential at Merritt Island, Florida

Merritt Island, Florida, located at 28.2764, -80.6568 in the Northern Sub Tropics, offers promising conditions for solar PV energy generation throughout the year. This coastal location provides substantial solar resources with seasonal variations that make it generally favorable for photovoltaic installations. The seasonal energy production shows distinct patterns. Spring yields the highest output at 6.59 kWh per day for each kilowatt of installed capacity, closely followed by summer at 6.18 kWh/day. Production decreases in autumn to 4.73 kWh/day and reaches its lowest point in winter at 3.97 kWh/day per kilowatt installed.

Optimal Installation Parameters

For fixed panel installations at Merritt Island, the ideal angle to maximize year-round energy production is 25 degrees facing South. This tilt angle has been carefully calculated to optimize annual solar capture based on the location's specific latitude and solar conditions.

Seasonal Considerations

Spring and summer clearly represent the peak production seasons at this location. From March through August, system owners can expect significantly higher energy yields than during the autumn and winter months. Even during the less productive winter period, the location still generates nearly 4 kWh daily per kilowatt installed, which remains respectable compared to many other U.S. locations.

Environmental and Weather Factors

Several environmental factors could potentially impact solar production at Merritt Island:

• Hurricane exposure presents a significant risk, as the area falls within Florida's hurricane-prone coastal region. Solar installations should use hurricane-rated mounting systems and panels designed to withstand high winds.
• Salt air corrosion is another consideration given the proximity to the Atlantic Ocean. Using marine-grade components, stainless steel hardware, and protective coatings can extend system lifespan.
• Afternoon thunderstorms, particularly common during summer months, may temporarily reduce production. Implementing microinverters or power optimizers can help minimize the impact of partial shading during these events.
• High humidity levels can lead to moisture intrusion in equipment if not properly sealed. Ensuring high-quality waterproof connections and enclosures is essential.

Despite these challenges, the overall high solar resource availability makes Merritt Island a generally favorable location for solar PV installations. With proper system design accounting for these local factors, solar energy systems can perform reliably and efficiently year-round.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

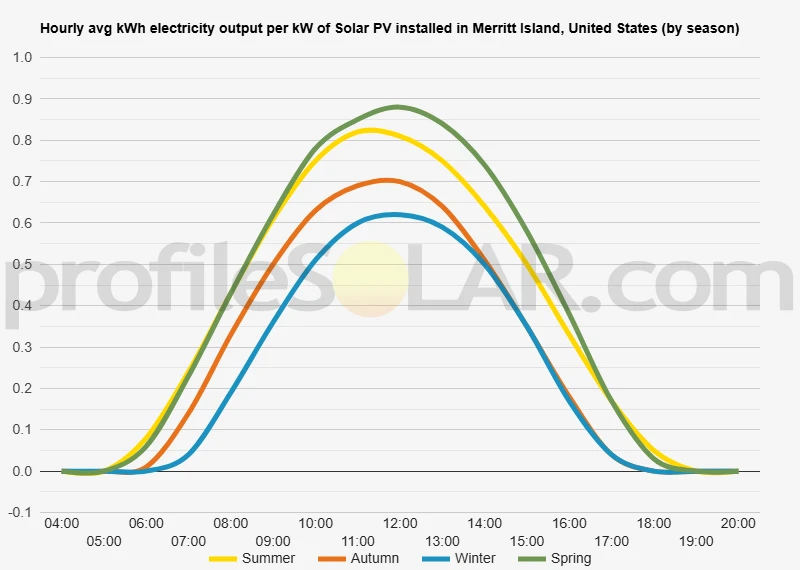

Solar output per kW of installed solar PV by season in Merritt Island

Seasonal solar PV output for Latitude: 28.2764, Longitude: -80.6568 (Merritt Island, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° South in Merritt Island, United States

To maximize your solar PV system's energy output in Merritt Island, United States (Lat/Long 28.2764, -80.6568) throughout the year, you should tilt your panels at an angle of 25° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Merritt Island, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Merritt Island, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	33° South in Autumn	43° South in Winter	21° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Merritt Island, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Merritt Island, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Merritt Island, United States

Merritt Island, located on the eastern coast of Florida, is characterized by a flat, low-lying topography typical of Florida's coastal regions. The island itself is part of a barrier island system, situated between the Indian River to the west and the Banana River to the east, with the Atlantic Ocean just beyond. The elevation across Merritt Island rarely exceeds 10 feet above sea level, with much of the terrain being only a few feet above the water table. The landscape of Merritt Island features a mix of coastal marshlands, mangrove swamps, and sandy soils. The northern portion of the island is dominated by the Merritt Island National Wildlife Refuge and the Kennedy Space Center, where natural Florida ecosystems have been preserved. Southern parts of the island are more developed with residential and commercial areas.

Surrounding Topography

The mainland areas west of Merritt Island, including the cities of Titusville and Cocoa, share similar flat topography but transition to slightly higher elevations moving inland. The barrier islands to the east, including Cape Canaveral and Cocoa Beach, feature sandy beaches and dunes facing the Atlantic Ocean. The entire region sits on what geologists call the Atlantic Coastal Plain, a physiographic region characterized by relatively recent sedimentary deposits. The bedrock is primarily limestone, overlaid with layers of sand and shell deposits that have accumulated over millions of years.

Areas Suitable for Large-Scale Solar PV

For large-scale solar photovoltaic installations, several nearby areas offer promising conditions: The mainland areas west of Merritt Island, particularly in Brevard County away from the immediate coastal zone, provide more extensive tracts of available land. These areas maintain the flat topography advantageous for solar installations while being situated on higher ground less prone to flooding or storm surge. Parts of northern Brevard County and southern Volusia County feature former agricultural lands that could be repurposed for solar energy production. These areas benefit from minimal shading, flat terrain that requires little grading, and proximity to existing electrical infrastructure. The region around Palm Bay and southern Brevard County also offers potential sites with suitable topography for large-scale solar development. These inland areas provide more space for extensive arrays while still benefiting from Florida's abundant sunshine. Areas within and surrounding the Space Coast's industrial corridors might also be considered, as they often have large, cleared parcels with existing access to high-capacity electrical transmission infrastructure. It's worth noting that while Merritt Island itself has suitable flat topography, much of it is either protected conservation land, NASA property, or already developed, limiting opportunities for large-scale solar installations directly on the island. The most practical locations would be on the mainland where larger contiguous parcels are available and environmental restrictions may be less limiting. The sandy soils prevalent throughout the region provide good drainage, which can be beneficial for solar installation foundations. However, developers would need to account for the region's vulnerability to tropical storms and hurricanes when designing mounting systems and infrastructure.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
