Middleton, Wisconsin, located in the Northern Temperate Zone, offers a varied landscape for solar energy production throughout the year. This location experiences significant seasonal fluctuations in solar output, which can impact the overall efficiency of solar PV systems.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive 6.39 kWh per day for each kilowatt of installed solar capacity. Spring follows closely, generating 5.19 kWh/day. However, there's a noticeable drop in output during autumn (3.29 kWh/day) and winter (2.25 kWh/day).

The substantial difference between summer and winter production highlights the impact of shorter days and lower sun angles during colder months. Despite this variation, Middleton still maintains a respectable year-round average, making solar energy a viable option for residents and businesses.

Optimal Panel Positioning

To maximize year-round solar energy production in Middleton, fixed solar panels should be tilted at a 37-degree angle facing south. This optimal angle accounts for the location's latitude and seasonal sun patterns, ensuring the best possible energy capture across all seasons.

Environmental Considerations

While Middleton's climate is generally conducive to solar energy production, there are some environmental factors to consider:

• Snow accumulation in winter can temporarily reduce panel efficiency
• Occasional cloudy days, particularly in autumn and winter, may impact production

To mitigate these issues, installers can implement snow-shedding panel designs and ensure panels are easily accessible for clearing. Additionally, using high-efficiency panels can help maximize production even on cloudy days.

Conclusion

Despite seasonal variations, Middleton's location proves to be reasonably favorable for solar PV systems. With proper installation techniques and panel positioning, residents can harness significant solar energy, particularly during the spring and summer months, while still maintaining decent production levels year-round.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

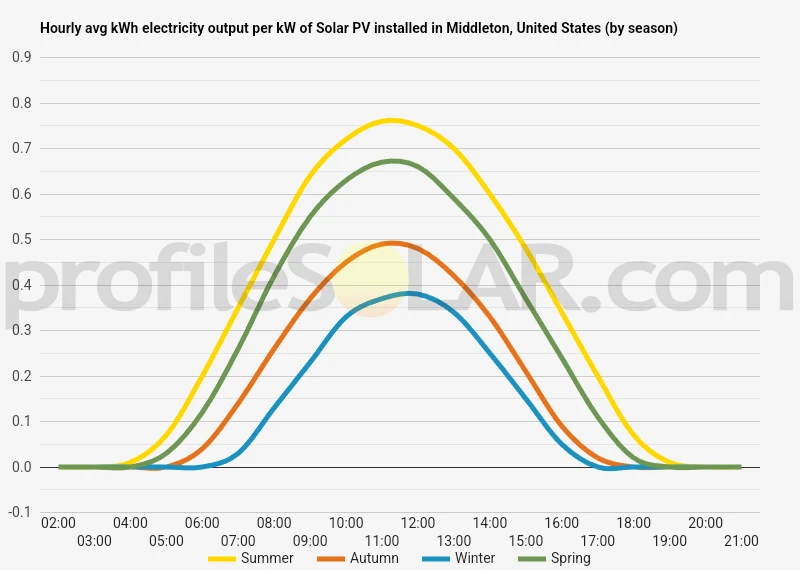

Solar output per kW of installed solar PV by season in Middleton

Seasonal solar PV output for Latitude: 43.1042, Longitude: -89.5074 (Middleton, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in Middleton, United States

To maximize your solar PV system's energy output in Middleton, United States (Lat/Long 43.1042, -89.5074) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Middleton, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Middleton, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	47° South in Autumn	56° South in Winter	36° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Middleton, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Middleton, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Middleton, United States

The topography around Middleton, Wisconsin, located at coordinates 43.1042°N, 89.5074°W, is characterized by gently rolling hills and shallow valleys. This area is part of the Driftless Region, which was largely untouched by glaciers during the last ice age. As a result, the landscape features a mix of wooded areas, open fields, and small streams winding through the terrain. The city of Middleton itself sits on relatively flat ground, but as you move outward, the land becomes more varied. To the north and west, the hills become more pronounced, with some areas reaching elevations of 300 to 400 feet above the surrounding landscape. These hills are often covered in a mix of deciduous and coniferous trees, creating a picturesque backdrop for the region. To the east and south of Middleton, the land gradually slopes down towards Lake Mendota, one of the largest lakes in the area. This creates a subtle basin effect, with the city nestled between the higher ground to the west and the lake to the east.

Potential Areas for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would have ample open space, minimal shading from trees or buildings, and relatively flat terrain to simplify installation and maximize sun exposure. Based on these criteria, the areas to the south and southwest of Middleton show the most promise for large-scale solar PV projects. This region features expansive agricultural lands with open fields that receive abundant sunlight throughout the day. The gently rolling terrain in this area would not significantly impede solar panel placement or efficiency. Another potentially suitable area lies to the northwest of Middleton, where there are several large, open spaces interspersed with patches of woodland. While some site preparation might be necessary to clear select areas, these locations offer a good balance of available land and proximity to existing infrastructure. It's worth noting that any large-scale solar PV project would need to consider local zoning regulations, environmental impact assessments, and grid connection capabilities. Additionally, care should be taken to balance renewable energy development with the preservation of the region's natural beauty and agricultural heritage.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
