Mocksville, North Carolina presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Northern Temperate Zone location shows dramatic seasonal swings. Summer delivers the strongest performance at 6.70 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring follows closely behind with 6.06 kWh per day per kW, representing nearly as productive conditions. However, the location experiences a steep decline during cooler months. Autumn drops to 4.41 kWh per day per kW, while winter plummets to just 2.76 kWh per day per kW. This winter figure represents less than half the summer production, highlighting the seasonal challenge for consistent year-round energy generation.

Optimal Installation Setup

For maximum year-round energy production at Mocksville, solar panels should be installed at a fixed tilt angle of 31 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's changing position throughout the year and weighting for the location's solar potential.

Environmental and Weather Challenges

Several local factors in the Mocksville area can significantly impact solar energy production:

• Ice storms and winter weather can coat panels with ice, completely blocking solar collection
• Heavy tree coverage common in North Carolina forests can create shading issues
• Humid subtropical climate promotes faster accumulation of dirt, pollen, and organic debris on panels
• Severe thunderstorms and occasional hail can damage panels or mounting systems
• High pollen counts, particularly in spring, can create a film that reduces efficiency

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove effective. Careful site selection away from large trees and potential shade sources becomes crucial, with consideration for future tree growth over the system's 25-year lifespan. Installing panels with adequate spacing and proper drainage helps prevent ice buildup and allows natural cleaning from rainfall. Some installers recommend slightly steeper mounting angles in areas prone to ice storms, though this must be balanced against the optimal 31-degree angle for maximum annual production. Regular maintenance scheduling becomes more important in this humid climate. Professional cleaning services can address pollen buildup during peak seasons, while monitoring systems help identify performance drops from debris accumulation. Installing surge protectors and ensuring robust grounding protects against the frequent thunderstorms common to the region. Choosing panels and mounting systems rated for higher wind loads and potential hail impact provides additional protection against severe weather events that periodically affect central North Carolina.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

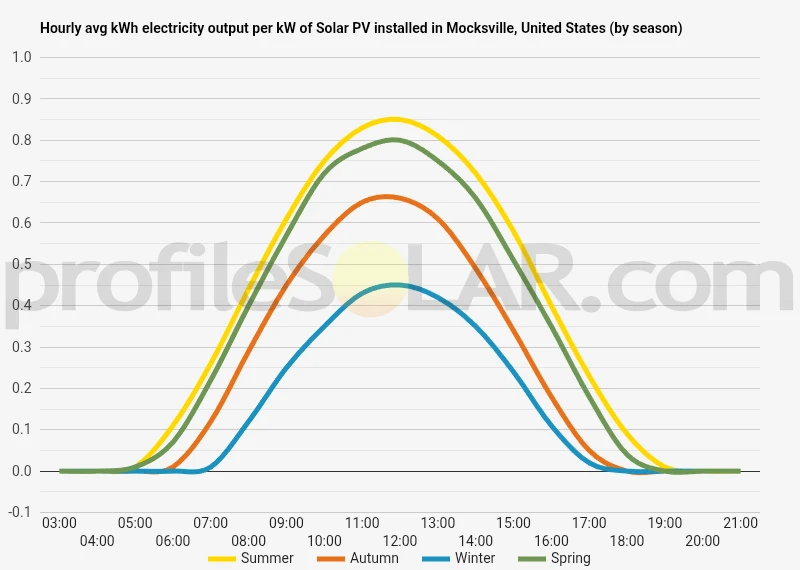

Solar output per kW of installed solar PV by season in Mocksville

Seasonal solar PV output for Latitude: 35.894, Longitude: -80.5614 (Mocksville, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 31° South in Mocksville, United States

To maximize your solar PV system's energy output in Mocksville, United States (Lat/Long 35.894, -80.5614) throughout the year, you should tilt your panels at an angle of 31° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mocksville, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mocksville, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 31° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
20° South in Summer	41° South in Autumn	51° South in Winter	28° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mocksville, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mocksville, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mocksville, United States

Topography Around Mocksville

Mocksville sits in the heart of North Carolina's Piedmont region, characterized by gently rolling hills and relatively modest elevation changes. The landscape around this Davie County seat features a mix of agricultural fields, wooded areas, and residential developments spread across terrain that rises and falls in gentle undulations rather than dramatic slopes.

The elevation in and around Mocksville typically ranges from about 700 to 900 feet above sea level, with the town itself positioned at approximately 760 feet. The topography consists primarily of low ridges separated by shallow valleys, creating a landscape that appears almost wave-like when viewed from elevated positions. These ridges generally run in a northeast-southwest direction, following the geological patterns typical of the North Carolina Piedmont.

The area's terrain was shaped by millions of years of erosion acting on ancient metamorphic and igneous rocks. This process created the characteristic rolling hills that define the region today. Small creeks and streams have carved modest valleys between the ridges, though none create particularly deep or steep-sided gorges. The South Yadkin River flows through the broader region, contributing to the gentle valley systems that break up the otherwise hilly terrain.

Soil and Land Use Patterns

The soils around Mocksville are predominantly clay-based, typical of the Piedmont region, with good drainage on the higher elevations and somewhat heavier, more moisture-retentive soils in the lower areas. Much of the land has been cleared for agriculture over the centuries, creating a patchwork of open fields interspersed with woodlots and forest remnants.

Agricultural use remains significant in the area, with many farms supporting crops like corn, soybeans, and hay, along with livestock operations. This agricultural heritage has resulted in large areas of relatively flat to gently sloping open land that remains largely unobstructed by trees or major structures.

Areas Best Suited for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Mocksville would be the broader, flatter agricultural areas that lie between the more pronounced ridges. These areas offer several advantages for solar development, including relatively level terrain that minimizes grading requirements and reduces installation costs.

The agricultural fields south and east of Mocksville present particularly favorable conditions, as they tend to have gentler slopes and fewer trees that might create shading issues. These areas also benefit from being positioned on slight south-facing slopes, which naturally optimize solar panel orientation without requiring complex mounting systems.

The ridge tops in the area, while offering good solar exposure, often present challenges due to their narrower profiles and the potential for increased wind exposure. However, some of the broader ridgetop areas, particularly those that have been cleared for agriculture, could accommodate solar installations with proper engineering considerations.

Areas to the west and northwest of Mocksville also show promise, particularly where larger agricultural operations have created substantial open spaces with minimal tree cover. These locations benefit from the region's generally favorable solar resource while avoiding some of the steeper terrain found in other directions.

The key consideration for any large-scale solar development in this region would be selecting sites with adequate open space, minimal shading from surrounding vegetation or topographic features, and reasonable access to electrical transmission infrastructure. The rolling nature of the terrain means that careful site selection can identify numerous locations where the natural topography works in favor of solar installation rather than against it.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
