Morganville, New Jersey, located in the Northern Temperate Zone, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location shows dramatic seasonal swings. Summer delivers the strongest performance at 6.02 kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best season with 5.44 kWh per day per kW, offering nearly comparable performance to summer months. Autumn sees a notable decline to 3.48 kWh per day per kW, while winter presents the most challenging conditions with only 2.14 kWh per day per kW. This winter output represents less than half of the spring production and roughly one-third of summer generation, highlighting the location's dependence on seasonal weather patterns.

Optimal Installation Configuration

For maximum year-round energy production at Morganville, solar panels should be installed at a fixed tilt angle of 35 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting for daily solar potential based on NASA solar irradiance data.

Local Environmental and Weather Challenges

Several environmental and weather factors in the Morganville area can significantly impact solar panel performance and require preventative measures during installation. Snow accumulation during New Jersey winters poses a major concern, as heavy snow can completely block solar panels and dramatically reduce the already limited winter output. The region typically experiences multiple snowstorms each winter, and panels can remain snow-covered for days or weeks without proper planning. Coastal proximity brings high humidity and salt air exposure, which can accelerate corrosion of mounting hardware and electrical components over time. The Atlantic Ocean's influence creates moisture-laden air that can reduce panel efficiency and shorten equipment lifespan if not properly addressed. Severe weather events including nor'easters, occasional hurricanes, and strong thunderstorms can damage installations through high winds, hail, and flying debris. These storms are particularly common during autumn and can cause both immediate damage and long-term performance issues.

Preventative Installation Measures

To maximize solar production despite these challenges, several installation strategies prove essential:

• Install panels with adequate spacing and steep enough angles to promote natural snow shedding
• Use marine-grade mounting hardware and electrical components rated for high-salt environments
• Ensure robust structural mounting capable of withstanding wind loads exceeding local building codes
• Install monitoring systems to quickly identify performance issues after severe weather events
• Design accessible maintenance pathways for safe snow removal when natural shedding proves insufficient

Regular maintenance becomes particularly important in this environment, including periodic cleaning of salt residue, inspection of mounting hardware for corrosion, and prompt removal of debris following storms. Professional installation with proper grounding and surge protection also helps ensure long-term reliability in this challenging coastal climate.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

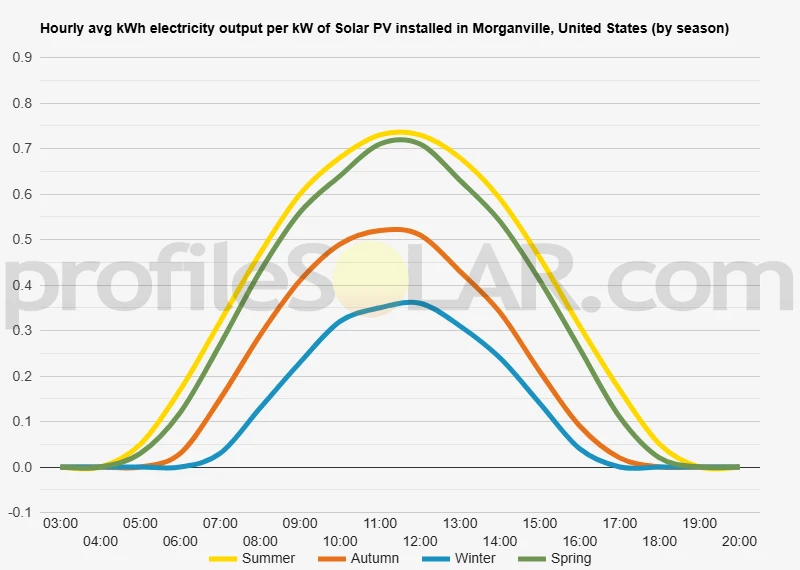

Solar output per kW of installed solar PV by season in Morganville

Seasonal solar PV output for Latitude: 40.3496, Longitude: -74.2849 (Morganville, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Morganville, United States

To maximize your solar PV system's energy output in Morganville, United States (Lat/Long 40.3496, -74.2849) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Morganville, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Morganville, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Morganville, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Morganville, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Morganville, United States

Topographical Features Around Morganville

Morganville sits within the gently rolling landscape of central New Jersey, characterized by relatively modest elevation changes and a mix of suburban development and remaining agricultural areas. The terrain in this region is part of the Inner Coastal Plain, featuring predominantly flat to gently undulating topography with elevations typically ranging from 50 to 150 feet above sea level. The area lacks significant hills or mountainous features, instead presenting a landscape shaped by ancient glacial activity and coastal plain sediments.

The immediate vicinity around Morganville consists of developed residential neighborhoods interspersed with patches of farmland, particularly to the south and west. Small streams and tributaries flow through the area, creating subtle valleys and drainage patterns that add minor variation to the otherwise level terrain. These waterways, including branches of the South River system, have carved shallow channels through the landscape over time.

The soil composition in this region is generally well-drained, consisting of sandy loams and clay mixtures typical of the New Jersey coastal plain. This geological foundation provides stable ground conditions suitable for various types of development and infrastructure projects.

Optimal Areas for Large-Scale Solar Development

The relatively flat topography surrounding Morganville presents several advantages for large-scale solar photovoltaic installations. The most promising areas for such development lie to the southwest and southeast of the community, where larger tracts of undeveloped or agricultural land remain available. These areas benefit from minimal shading obstacles and consistent terrain that would facilitate efficient panel installation and maintenance access.

Former agricultural fields and open spaces in nearby Marlboro Township and parts of Old Bridge Township offer particularly suitable conditions. The gentle slopes in these areas, typically less than 5 degrees, provide ideal conditions for optimal panel orientation while ensuring proper drainage. The absence of significant tree cover in these agricultural zones eliminates potential shading issues that could reduce system efficiency.

Areas near the Garden State Parkway corridor, while maintaining appropriate distances from the roadway itself, present additional opportunities due to their relatively flat profile and existing infrastructure access. The stable soil conditions throughout the region would support the foundation requirements for large solar arrays without requiring extensive ground preparation or specialized engineering solutions.

Industrial and commercial zones in the broader Marlboro and Old Bridge areas also offer potential, particularly where large flat roof installations could complement ground-mounted systems. These locations benefit from existing electrical infrastructure and road access, which would reduce installation and maintenance costs for large-scale solar projects.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
