Muscatine, Iowa, in the United States, offers a moderate location for solar PV energy generation, with significant seasonal variations in electricity output. Located in the Northern Temperate Zone, this site experiences considerable differences between summer and winter production capabilities.

Seasonal Solar Production

Solar panels at this location would generate varying amounts of electricity throughout the year. During summer months, the output is quite strong at 6.51 kWh per day for each kilowatt of installed capacity. This production drops substantially to 3.59 kWh/day during autumn and reaches its lowest point in winter at only 2.56 kWh/day. Spring brings a significant recovery with 5.14 kWh/day of electricity generation.

The substantial difference between summer and winter production (a reduction of approximately 61% from summer to winter) is typical of northern temperate locations, where shorter days and lower sun angles during winter months significantly impact energy generation.

Optimal Panel Installation

For fixed panel installations in Muscatine, the ideal tilt angle to maximize year-round solar production is 36 degrees facing South. This angle has been calculated based on the site's latitude, accounting for seasonal solar elevation changes and Earth's elliptical orbit, weighted by the daily photovoltaic potential.

Environmental and Weather Considerations

Several environmental factors at this location could impact solar production. Muscatine experiences snowy winters, which can temporarily cover panels and reduce output during the already low-production winter months. Installing panels at the recommended 36-degree tilt helps snow slide off more easily than a flatter installation would.

The region also experiences occasional severe weather including thunderstorms and hail, which could potentially damage solar equipment. Using impact-resistant solar panels rated for hail resistance can mitigate this risk.

Muscatine's location along the Mississippi River means the area can experience higher humidity levels, which may lead to more frequent foggy mornings, slightly reducing morning production efficiency. Regular cleaning of panels is recommended as dust and pollen accumulation can be higher in this river valley environment.

During winter, Muscatine typically experiences multiple cloudy days in succession, which combined with shorter daylight hours makes winter the least productive season by a significant margin. Oversizing the system to account for this winter reduction would be a prudent approach if year-round consistent production is required.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

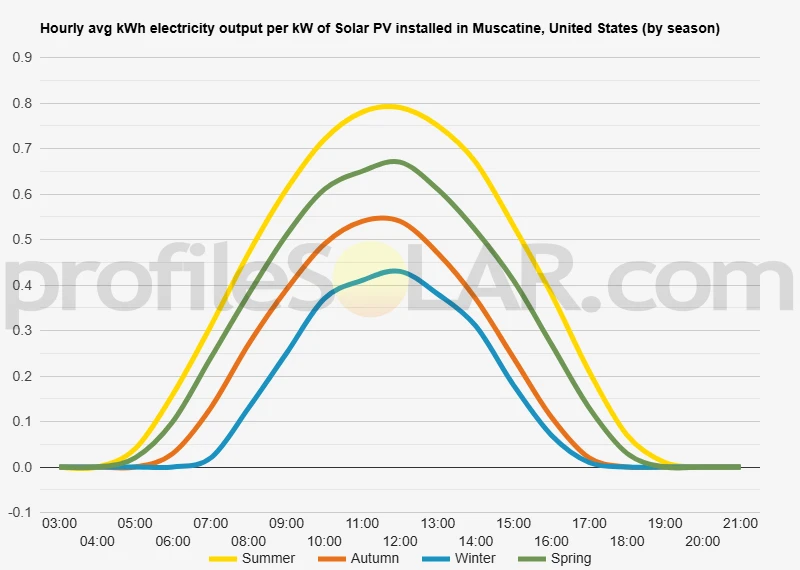

Solar output per kW of installed solar PV by season in Muscatine

Seasonal solar PV output for Latitude: 41.4221, Longitude: -91.0371 (Muscatine, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Muscatine, United States

To maximize your solar PV system's energy output in Muscatine, United States (Lat/Long 41.4221, -91.0371) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Muscatine, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Muscatine, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	55° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Muscatine, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Muscatine, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Muscatine, United States

Muscatine, Iowa sits along the Mississippi River in the eastern part of the state. The topography of this area is characterized by a unique blend of river valley lowlands and gently rolling uplands that create a varied landscape. The city itself is positioned on a series of bluffs and terraces that rise from the Mississippi River, with elevations ranging from approximately 545 feet near the riverfront to about 700-750 feet in the western upland portions. The immediate vicinity of Muscatine features the broad floodplain of the Mississippi River to the east and south, which is generally flat with rich alluvial soils. Moving west and north from the river, the terrain gradually transitions to more undulating hills and ridges, part of the Southern Iowa Drift Plain physiographic region. This region was shaped primarily by ancient glacial activity, leaving behind a landscape of gentle slopes interspersed with stream valleys.

Notable Topographic Features

The Mississippi River is the dominant geographic feature, creating a wide valley with associated wetlands, islands, and backwater areas. Muscatine Island, a large alluvial plain south of the city, is protected from flooding by levees and represents some of the flattest terrain in the area. Several smaller waterways dissect the landscape, including the Cedar River to the northwest and numerous creeks that have carved shallow valleys through the uplands. These stream valleys create local relief variations throughout the otherwise moderately rolling terrain.

Solar PV Potential Areas

For large-scale solar photovoltaic development, several areas around Muscatine offer promising conditions based on topographic considerations: The upland areas west and northwest of Muscatine present gently sloping terrain with good southern exposure. These locations typically have well-drained soils and avoid the flood-prone lowlands, making them suitable candidates for solar farms. The rolling nature of this terrain often provides natural south-facing slopes that can optimize solar collection. Muscatine Island and other portions of the Mississippi floodplain that are protected by flood control systems offer extensive flat areas that would minimize grading costs for solar installations. However, these areas must be carefully evaluated for flood risk even with protection systems in place. Agricultural lands in Louisa County to the south and southwest of Muscatine combine favorable topography with existing access to transmission infrastructure, making them potentially attractive for solar development. These areas feature predominantly flat to gently rolling terrain with minimal obstacles. The areas north of Muscatine toward Wilton provide elevated plateaus with relatively level terrain that could accommodate large solar arrays without significant earthwork. These locations also benefit from reduced risk of river flooding compared to sites closer to the Mississippi. Areas to generally avoid would include the steeper bluffs directly adjacent to the river, wetland areas within the floodplain, and locations with heavy forest cover, particularly in the stream valleys that cut through the region. The combination of moderately level terrain, existing agricultural clearing, and proximity to transmission infrastructure makes the Muscatine area generally favorable for solar development from a topographic perspective, with the upland areas west of the city offering perhaps the best balance of suitable terrain and reduced environmental constraints.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
