Carnegie, Pennsylvania is a moderately suitable location for year-round solar energy generation, though it faces some significant seasonal challenges typical of the Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output varies dramatically throughout the year at this location. Summer provides the strongest performance at 6.09 kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring also offers good production levels at 5.32 kWh per day per kW, creating a solid shoulder season for energy harvesting. However, the location shows notable weaknesses during colder months. Autumn drops to 3.39 kWh per day per kW, while winter performance falls significantly to just 1.80 kWh per day per kW. This winter output represents less than 30% of summer production, highlighting the seasonal challenges faced by solar installations in this region. For fixed panel installations at Carnegie, the optimal tilt angle is 34 degrees facing south to maximize total year-round energy production. This angle balances the varying sun positions throughout the seasons to capture the most solar energy annually.

Environmental and Weather Challenges

Several local factors can significantly impact solar production in Carnegie, Pennsylvania:

• Heavy snow accumulation during winter months can completely block solar panels
• Frequent cloud cover and overcast conditions, particularly common in the Great Lakes region
• Ice formation on panels during freeze-thaw cycles
• High humidity and frequent precipitation throughout the year
• Potential for severe weather including thunderstorms and occasional hail

Preventative Measures for Better Performance

To combat these challenges and maximize energy production, several installation strategies prove effective: Installing panels at the recommended 34-degree tilt helps snow slide off naturally rather than accumulating on flat surfaces. This self-clearing feature becomes crucial during Pennsylvania's snowy winters. Choosing high-quality panels with anti-reflective coatings and hydrophobic surfaces helps shed water and reduces ice formation. These coatings also improve performance during cloudy conditions by capturing more diffuse light. Proper spacing between panel rows prevents shading when snow does accumulate, while sturdy mounting systems must withstand heavy snow loads and potential ice damming. Regular maintenance scheduling becomes essential, particularly clearing snow and ice during winter months and cleaning panels after storms. Installing monitoring systems helps identify when panels need attention due to weather-related performance drops. While Carnegie faces notable seasonal variations and weather challenges for solar energy production, proper installation techniques and maintenance can help maximize the system's effectiveness throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

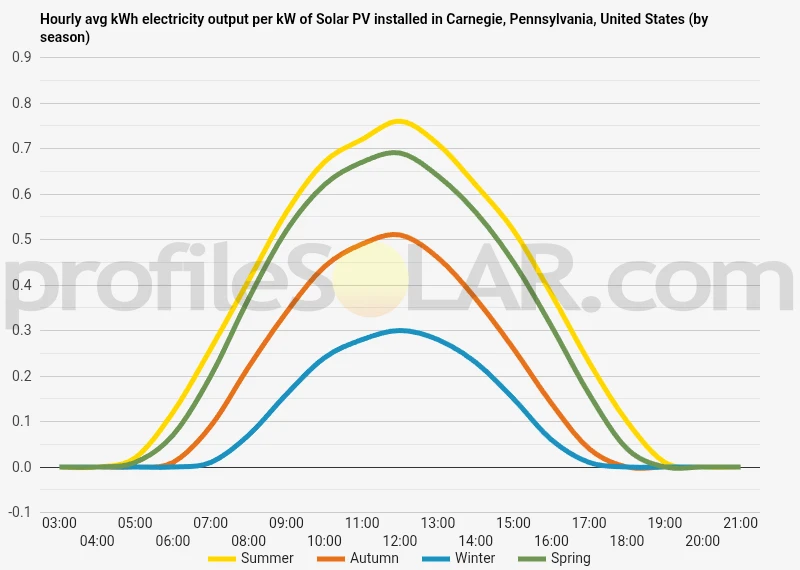

Solar output per kW of installed solar PV by season in Carnegie, Pennsylvania

Seasonal solar PV output for Latitude: 40.4034, Longitude: -80.087 (Carnegie, Pennsylvania, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Carnegie, Pennsylvania, United States

To maximize your solar PV system's energy output in Carnegie, Pennsylvania, United States (Lat/Long 40.4034, -80.087) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Carnegie, Pennsylvania, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Carnegie, Pennsylvania, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Carnegie, Pennsylvania, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Carnegie, Pennsylvania, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Carnegie, Pennsylvania, United States

Topography Around Carnegie, Pennsylvania

Carnegie sits in the southwestern portion of Pennsylvania, positioned within the broader Allegheny Plateau region. The area is characterized by rolling hills and moderate elevation changes typical of the Appalachian foothills. The terrain around Carnegie features a mix of gentle slopes and steeper inclines, with elevations generally ranging from about 700 to 1,200 feet above sea level in the immediate vicinity.

The landscape has been significantly shaped by the region's industrial history, particularly coal mining and steel production. Many areas show evidence of past mining activities, including some flattened or graded sections where surface mining occurred. The Chartiers Creek flows through the region, creating small valleys and contributing to the varied topographical features.

The surrounding terrain includes a combination of forested hillsides, cleared agricultural land, and developed areas. Much of the steeper terrain remains wooded, while gentler slopes and valley floors have been developed for residential, commercial, and light industrial uses. The area experiences typical Pennsylvania weather patterns, with four distinct seasons and moderate precipitation throughout the year.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Carnegie would be the relatively flat or gently sloping areas that have already been cleared of vegetation. Former industrial sites and reclaimed mining areas present excellent opportunities, as these locations often have minimal environmental constraints and existing infrastructure access.

South-facing slopes with gradients between 10 and 30 degrees offer ideal conditions for solar panel orientation, maximizing exposure to direct sunlight throughout the day. These areas would be particularly valuable if they are already cleared and have good road access for construction and maintenance vehicles.

The flatter valley floors and plateau areas that are not prone to flooding would also be well-suited for solar development. These locations typically offer easier construction conditions and lower installation costs compared to steeper terrain. Areas with existing electrical infrastructure nearby would be particularly advantageous, reducing the costs associated with grid connection.

Former agricultural fields on gentle slopes could provide substantial acreage for solar installations, especially those that are no longer actively farmed. These areas often have the added benefit of existing access roads and cleared sight lines, making them practical choices for large-scale development.

Brownfield sites, including former industrial properties that have been remediated, represent another category of prime locations. These sites often have the dual benefit of existing infrastructure and fewer environmental restrictions, while also providing an economically beneficial reuse of previously developed land.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
