Lebanon, New Jersey, located in the Northern Temperate Zone, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location shows substantial fluctuation throughout the year. Summer delivers the strongest performance at 6.02 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best period with 5.44 kWh daily output per kW, offering nearly comparable performance to summer months. Autumn sees a notable decline to 3.48 kWh per day per kW, while winter presents the most challenging conditions with only 2.14 kWh daily per kW. This winter output represents roughly one-third of the summer peak, highlighting the substantial seasonal challenge for consistent year-round energy production.

Optimal Installation Configuration

For fixed panel installations at Lebanon, New Jersey, the ideal tilt angle is 35 degrees facing south to maximize total year-round solar production. This angle has been calculated using weighted solar elevation data throughout the year, accounting for Earth's elliptical orbit and varying solar irradiance patterns.

Local Factors Affecting Solar Production

Several environmental and weather factors in this region can significantly impact solar energy generation:

• Snow accumulation during winter months can block panels and reduce output
• Ice formation may damage panels or mounting systems if not properly addressed
• Frequent cloud cover and precipitation common to the Mid-Atlantic region
• Potential for severe weather including thunderstorms and occasional hurricanes
• Deciduous tree coverage that may create seasonal shading patterns

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies prove beneficial:

• Install panels at steeper angles (40-45 degrees) to promote natural snow shedding
• Use mounting systems rated for local snow loads and wind conditions
• Ensure adequate spacing between panel rows to minimize winter shading
• Consider micro-inverters or power optimizers to reduce impact of partial shading
• Plan regular maintenance schedules for snow removal and debris clearing
• Select panels with anti-reflective coatings that perform better in diffused light conditions

Overall Assessment

While Lebanon, New Jersey offers decent solar potential during warmer months, the dramatic winter reduction in output means this location requires careful system sizing and realistic expectations for year-round performance. The strong spring and summer production can offset winter limitations, but property owners should plan for significantly reduced generation during the coldest months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

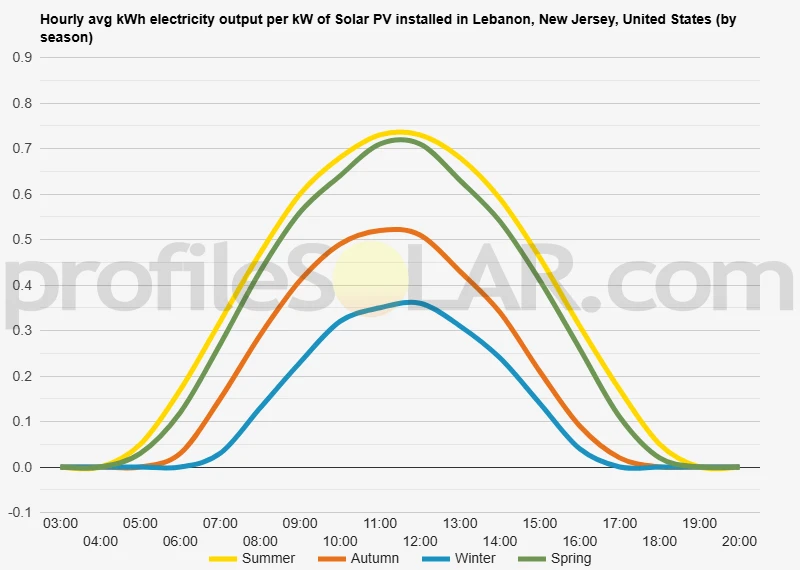

Solar output per kW of installed solar PV by season in Lebanon, New Jersey

Seasonal solar PV output for Latitude: 40.6484, Longitude: -74.8245 (Lebanon, New Jersey, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Lebanon, New Jersey, United States

To maximize your solar PV system's energy output in Lebanon, New Jersey, United States (Lat/Long 40.6484, -74.8245) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lebanon, New Jersey, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lebanon, New Jersey, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	56° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lebanon, New Jersey, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lebanon, New Jersey, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lebanon, New Jersey, United States

Topography Around Lebanon, United States

Lebanon is situated in the Raritan Valley region of central New Jersey, positioned at the foothills of the Appalachian Mountains. The immediate area features gently rolling hills and valleys that characterize much of Hunterdon County's landscape. The terrain gradually rises from east to west, with elevations ranging from approximately 200 feet above sea level in the eastern portions to over 600 feet in the western highlands.

The South Branch of the Raritan River flows through the region, creating a natural valley system that has shaped the local topography over millennia. This river valley provides relatively flat agricultural land interspersed with modest ridges and hillsides. The surrounding countryside is dominated by farmland, woodlands, and suburban developments that take advantage of the area's scenic rolling terrain.

To the west and northwest of Lebanon, the landscape becomes more pronounced as it approaches the New Jersey Highlands, part of the broader Appalachian Mountain system. These areas feature steeper slopes, rocky outcroppings, and dense forest cover. The eastern areas toward the Raritan Valley become progressively flatter and more developed, transitioning into the Piedmont region that extends toward the Atlantic coastal plain.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be found in the flatter agricultural areas east and southeast of Lebanon proper. These areas offer several advantages including relatively level terrain that minimizes grading costs and maximizes panel efficiency through optimal positioning. The agricultural fields in the Raritan Valley provide large, unobstructed parcels of land with minimal shading from trees or buildings.

The gently sloping farmland areas would be particularly well-suited for solar development, as slight southern-facing slopes can actually enhance solar collection efficiency while still maintaining cost-effective installation procedures. These areas typically have good access to existing electrical infrastructure and transportation networks, which are crucial factors for large-scale solar projects.

Areas to the immediate west of Lebanon, while offering some suitable sites, present more challenging topography with steeper grades and more fragmented land parcels. The heavily forested highlands further west would generally be unsuitable for large-scale solar development due to the extensive tree clearing that would be required, environmental concerns, and the irregular terrain that would significantly increase installation costs.

The southeastern portions of the region, extending into the broader Raritan Valley, present the most promising opportunities for solar development. This area combines favorable topography with proximity to major electrical transmission infrastructure and population centers that would utilize the generated power. The relatively open agricultural landscape in this direction provides the best combination of suitable terrain, land availability, and practical considerations for large-scale solar installations.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
