Solar PV Analysis of New Braunfels, United States
New Braunfels, Texas is a decent location for generating solar energy year-round. During the summer, one can expect to generate around 6.82 kilowatt-hours (kWh) of electricity each day per kilowatt (kW) of installed solar power. In autumn and spring, this figure decreases slightly to about 5.21 kWh/day and 5.55 kWh/day respectively, while in winter it drops further to around 3.48 kWh/day.
This means that the most productive time for solar energy generation in New Braunfels would be during the summer months when there's more sunlight available daily due to longer daylight hours and more direct sun exposure; however, reasonable amounts of electricity can still be generated during other seasons as well.
To get the most out of your solar panels throughout the year at this location, they should ideally be tilted at an angle facing 27 degrees South - this position allows them to capture maximum sunlight over different times of day and seasons.
As far as environmental or weather factors go that could potentially hinder solar production in New Braunfels - it's important to note that while Texas generally gets plenty sunshine making it suitable for solar power generation overall, it also experiences occasional severe weather such as hailstorms which could physically damage unprotected panels; dust storms or high winds might deposit dirt on panel surfaces reducing their efficiency; plus extended periods of cloud cover or foggy conditions may reduce available sunlight too.
In view of these potential challenges:
1) It would be wise investing in durable panels designed with protective features against impact damage from hailstones.
2) Regular cleaning/maintenance schedules should be set up so any dirt/debris on panel surfaces are promptly removed ensuring optimal efficiency.
3) Consider installing a backup source like a battery storage system or generator so you're not left without power during extended cloudy/foggy conditions if relying solely on your PV system for electricity needs.
4) If possible, choose a panel installation site that's less likely to be shaded by surrounding buildings or trees.
Overall, while there are some considerations to keep in mind, New Braunfels remains a generally favorable location for solar power generation throughout the year.
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in the United States by location

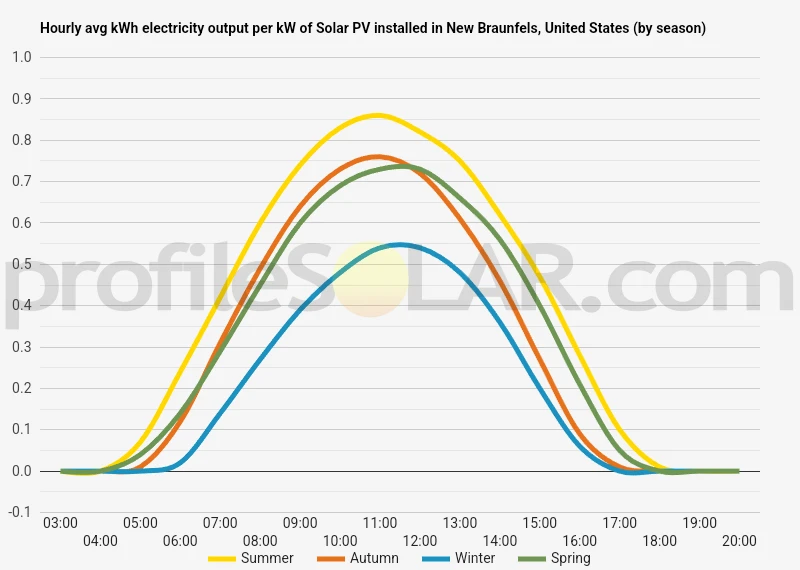

Solar output per kW of installed solar PV by season in New Braunfels
Seasonal solar PV output for Latitude: 29.7535, Longitude: -98.1976 (New Braunfels, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 27° South in New Braunfels, United States
To maximize your solar PV system's energy output in New Braunfels, United States (Lat/Long 29.7535, -98.1976) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for New Braunfels, United States
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in New Braunfels, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 14° South in Summer | 34° South in Autumn | 45° South in Winter | 23° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in New Braunfels, United States
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in New Braunfels, United States.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around New Braunfels, United States
New Braunfels, United States is located in the state of Texas. The topography of this area is characterized by rolling hills and plains. It's part of the Texas Hill Country which features limestone or granite hills rising from the coastal plains.
As for solar PV potential, large-scale solar farms require flat or gently sloping land with good sun exposure and minimal shading from trees or other obstructions. Given these requirements, areas to the east and west of New Braunfels may be suitable as they are generally flatter compared to hilly regions north in the Hill Country.
However, a more detailed analysis would need to consider factors such as local climate (solar radiation levels), proximity to power transmission lines, land use restrictions among others. Areas around New Braunfels that have agricultural lands could potentially be repurposed for large scale solar PV installations since they tend to be relatively flat and open.
It's also worth noting that Texas has one of highest potentials for solar power generation in U.S., thanks largely due its sunny weather and vast land area.
United States solar PV Stats as a country
United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United States?
Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
