New Lisbon, Wisconsin presents a moderately favorable location for solar energy generation, though with significant seasonal variations typical of the Northern Temperate Zone. The location experiences its peak solar production during summer months at 6.39 kWh per day per kW of installed capacity, making this the ideal time for solar energy generation.

Seasonal Solar Performance

Spring offers the second-best solar production at 5.05 kWh/day per kW, making it another excellent period for solar energy generation. However, the location faces considerable challenges during colder months, with autumn dropping to 3.31 kWh/day per kW and winter producing only 2.27 kWh/day per kW - less than half of summer output. For optimal year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 38 degrees facing south. This angle maximizes total annual solar output by accounting for the sun's varying elevation throughout the year and Wisconsin's latitude.

Environmental and Weather Challenges

Several factors can significantly impact solar production in New Lisbon, Wisconsin:

• Heavy snow accumulation during winter months can completely block solar panels
• Ice formation can reduce panel efficiency and potentially damage equipment
• Frequent cloud cover and overcast skies during autumn and winter reduce solar irradiance
• High humidity and morning fog can temporarily reduce panel efficiency
• Strong winds and severe weather events may damage installations

Recommended Preventative Measures

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate spacing and steeper tilt angles to promote natural snow shedding
• Use high-quality mounting systems rated for heavy snow loads and wind resistance
• Consider anti-reflective coatings and hydrophobic treatments to minimize ice and debris accumulation
• Ensure easy access for snow removal and maintenance during winter months
• Install monitoring systems to track performance and identify weather-related issues quickly

While New Lisbon's winter solar production is limited, the strong summer and spring performance can still make solar installations economically viable, particularly when combined with proper system design and maintenance practices to address local weather challenges.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

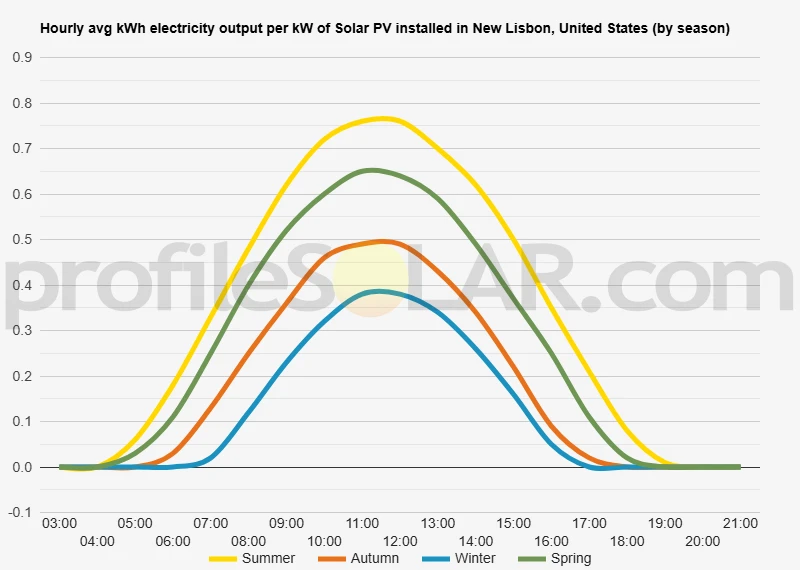

Solar output per kW of installed solar PV by season in New Lisbon

Seasonal solar PV output for Latitude: 43.8864, Longitude: -90.1613 (New Lisbon, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 38° South in New Lisbon, United States

To maximize your solar PV system's energy output in New Lisbon, United States (Lat/Long 43.8864, -90.1613) throughout the year, you should tilt your panels at an angle of 38° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for New Lisbon, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in New Lisbon, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 38° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
27° South in Summer	48° South in Autumn	57° South in Winter	37° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in New Lisbon, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in New Lisbon, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around New Lisbon, United States

Topography Around New Lisbon, Wisconsin

New Lisbon sits in the heart of Wisconsin's Central Sand Plain, a distinctive geological region characterized by relatively flat terrain and sandy soils. The landscape around this small city features gently rolling hills with modest elevation changes, creating an environment that differs markedly from the more dramatic topography found in other parts of the state. The area lies within the Wisconsin River valley system, where ancient glacial activity left behind a broad, sandy plain punctuated by low ridges and shallow valleys.

The immediate vicinity of New Lisbon exhibits elevations ranging from approximately 900 to 1,100 feet above sea level, with the most significant topographical feature being the nearby Wisconsin River, which flows roughly east to west through the region. The terrain slopes gradually toward the river valley, creating natural drainage patterns that have shaped the local landscape over thousands of years. Small creeks and seasonal waterways cut modest channels through the sandy soil, forming gentle depressions that add subtle variation to an otherwise relatively uniform topography.

The surrounding countryside is dominated by agricultural land, with large fields of corn, soybeans, and other crops taking advantage of the level terrain and well-drained soils. Scattered woodlots and forest patches break up the agricultural landscape, particularly along waterways and on slightly elevated ground. The famous Wisconsin Dells geological formations lie to the northeast, but the immediate New Lisbon area lacks the dramatic sandstone outcroppings and steep gorges that characterize that tourist destination.

Optimal Areas for Large-Scale Solar Development

The flat to gently rolling topography around New Lisbon presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas would be the expansive agricultural fields that stretch in all directions from the city, particularly those with southern-facing slopes that can maximize solar exposure throughout the day. These open areas offer minimal shading from trees or structures and provide the large, contiguous parcels of land necessary for utility-scale solar farms.

Areas to the south and southwest of New Lisbon appear particularly well-suited for solar development, where the terrain remains consistently flat with good drainage characteristics. The sandy soils that dominate this region, while challenging for some types of agriculture, actually benefit solar installations by providing excellent drainage and reducing concerns about foundation stability in wet conditions. The relatively low population density in the surrounding rural areas means fewer conflicts with residential development and easier access to suitable sites.

The elevated areas northwest and northeast of the city, while still relatively modest in height, could also serve well for solar installations due to their slightly higher elevation and good southern exposure. These locations would benefit from improved air circulation, which can help maintain optimal panel temperatures and efficiency. The existing agricultural road network throughout the region provides good access for construction and maintenance activities, while the proximity to electrical transmission infrastructure along major transportation corridors enhances the feasibility of connecting large solar installations to the regional power grid.

Areas immediately adjacent to the Wisconsin River and its tributaries would be less ideal due to potential flooding concerns and environmental restrictions, though the slightly elevated terraces above the floodplain could still accommodate solar development. The relatively few forested areas in the region should generally be avoided to preserve existing ecosystems and avoid the costs and environmental impacts of clearing established woodland.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
