New Waterford, Ohio presents a moderately favorable location for solar energy generation, though with significant seasonal variations typical of its Northern Temperate Zone climate. The solar output data reveals a clear pattern of seasonal performance that potential solar installers should carefully consider.

Seasonal Solar Performance

The location experiences substantial differences in solar energy production throughout the year. Summer months deliver the highest output at 6.09 kWh per day per kW of installed capacity, making this the prime solar generation season. Spring follows as the second-best performing season with 5.32 kWh per day per kW, offering excellent solar conditions during the transition months. Autumn sees a notable decline to 3.39 kWh per day per kW, while winter presents the most challenging conditions with only 1.80 kWh per day per kW. This dramatic winter reduction means solar panels produce less than 30% of their summer output during the coldest months.

Optimal Installation Configuration

For fixed-panel installations at New Waterford, the ideal tilt angle is 35 degrees facing south to maximize total year-round production. This angle represents the optimal compromise across all seasons, calculated by weighting daily solar elevation angles throughout the year according to available solar irradiance data.

Local Environmental Challenges

Several environmental and weather factors in the New Waterford area can significantly impact solar energy production:

• Snow accumulation during winter months can completely block solar panels
• Frequent cloud cover and overcast conditions typical of Ohio's climate
• Ice formation that can damage panels or reduce efficiency
• High humidity and fog that can reduce solar irradiance

Preventative Measures for Enhanced Production

To maximize solar energy output despite these challenges, several installation strategies prove effective: Installing panels at the recommended 35-degree tilt helps snow slide off more easily than flatter installations. Regular maintenance schedules should include snow removal protocols and panel cleaning, particularly after storms or during high-pollen seasons. Proper spacing between panel rows prevents shading and allows better air circulation, which improves efficiency and helps with natural snow melting. Quality mounting systems designed for Ohio's weather conditions, including wind and snow loads, ensure long-term reliability. Micro-inverters or power optimizers can help minimize the impact when individual panels are partially shaded or snow-covered, allowing unaffected panels to continue operating at full capacity. Professional installation with appropriate electrical protection and grounding becomes especially important in areas prone to winter weather conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

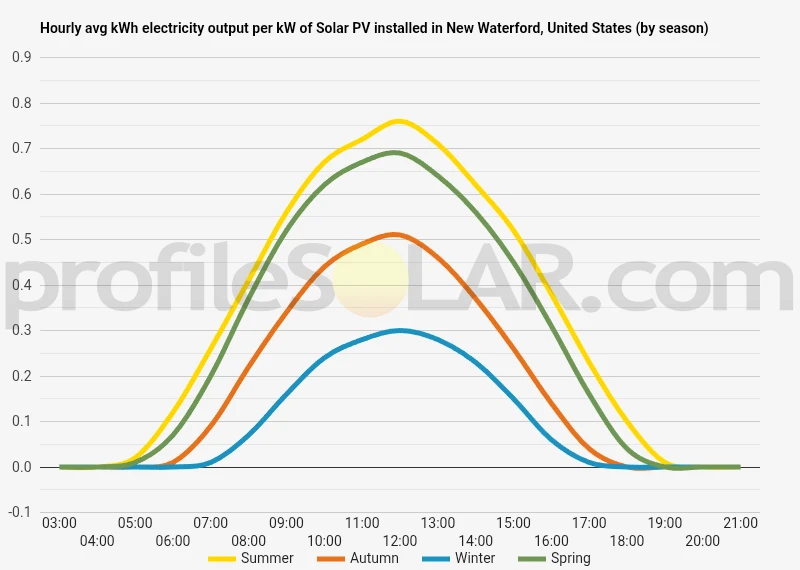

Solar output per kW of installed solar PV by season in New Waterford

Seasonal solar PV output for Latitude: 40.8521, Longitude: -80.618 (New Waterford, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in New Waterford, United States

To maximize your solar PV system's energy output in New Waterford, United States (Lat/Long 40.8521, -80.618) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for New Waterford, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in New Waterford, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	56° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in New Waterford, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in New Waterford, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around New Waterford, United States

Topography Around New Waterford

New Waterford sits in the rolling hills of eastern Ohio, near the Pennsylvania border in Columbiana County. The landscape in this region is characterized by gentle to moderate slopes that are typical of the Appalachian foothills. The terrain consists of undulating farmland interspersed with wooded areas, with elevations generally ranging from around 900 to 1,200 feet above sea level. The area features a mix of agricultural fields, pastureland, and scattered residential developments connected by rural roads.

The topography is shaped by ancient glacial activity and subsequent erosion patterns, creating a landscape of rounded hills and shallow valleys. Small streams and creeks wind through the lower-lying areas, draining toward larger waterways in the region. The soils are generally well-drained, supporting both agricultural activities and natural vegetation. Forested areas tend to occupy the steeper slopes and areas less suitable for farming, while the gentler slopes and valley floors are primarily used for crops and grazing.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the New Waterford area would be the gently sloping agricultural fields and pastures that face south or southwest. These areas typically offer the best combination of favorable orientation, minimal shading, and relatively flat terrain that keeps installation costs manageable. The rolling farmland provides numerous sites where solar arrays could be positioned to take advantage of optimal sun exposure throughout the day.

Areas with slopes between 0 and 15 degrees would be ideal for solar development, as steeper terrain increases both construction complexity and costs. The open agricultural fields that currently support row crops or hay production would be particularly well-suited, as they already have clear sight lines and minimal obstructions. These locations also tend to have existing access roads for farm equipment, which could facilitate construction and maintenance activities.

The higher elevation areas south and southwest of New Waterford would be especially attractive for solar development, as they experience less potential for fog accumulation and have fewer tall trees or buildings that might create shadows. The predominantly rural character of the landscape means that large contiguous areas could potentially be assembled for utility-scale solar projects without significant urban development constraints.

Areas to avoid would include the steeper wooded slopes, low-lying areas prone to flooding or excessive moisture, and locations with significant tree cover that would require extensive clearing. The small valleys and creek bottoms, while relatively flat, may experience more frequent fog and have drainage issues that could complicate solar installation and operation.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
