Location estimate

Mountain View

Hawaii · United States

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

6.94

kWh/day

Autumn

5.79

kWh/day

Winter

4.58

kWh/day

Spring

6.14

kWh/day

Shared scale: 0–7.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Mountain View, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 6.94 6.94 × 1 kWp = 6.94 kWh/day
Autumn 5.79 5.79 × 1 kWp = 5.79 kWh/day
Winter 4.58 4.58 × 1 kWp = 4.58 kWh/day
Spring 6.14 6.14 × 1 kWp = 6.14 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
6.94
Autumn · kWh/day
5.79
Winter · kWh/day
4.58
Spring · kWh/day
6.14

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 17 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
17°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
4°South
Autumn
Sep, Oct, Nov
25°South
Winter
Dec, Jan, Feb
35°South
Spring
Mar, Apr, May
12°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Mountain View, Hawaii, United States.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 4 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

4° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 25 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

25° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 35 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

35° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 12 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

12° tilt · South

Illustrative direction; exact azimuth not recorded.

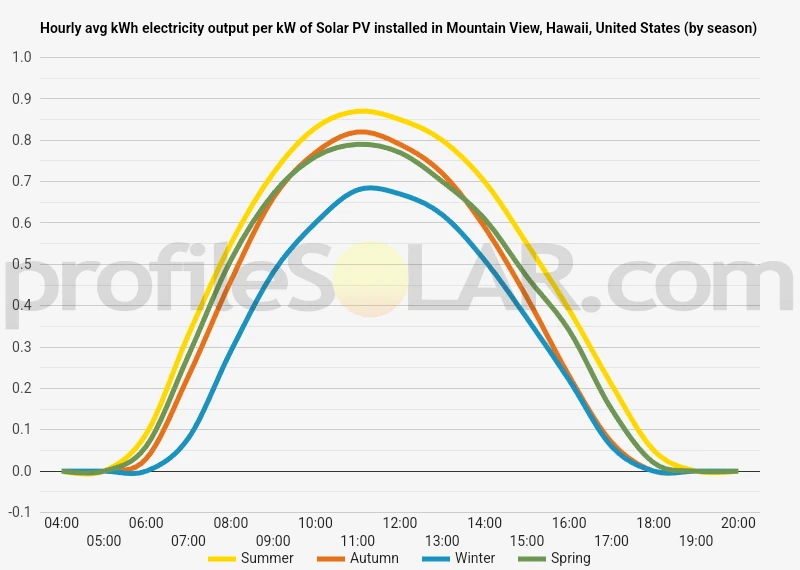

Historical hourly-by-season solar output chart for Mountain View, United States. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Mountain View, United States

Hourly profiles by season — Mountain View, United States · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Mountain View, United States · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Mountain View

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 2.46 m

Proportional side viewDesign sun: ≈ 46.99° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 0.55 m
Added margin
≈ 0 m
Gap including margin
≈ 0.55 m
Panel horizontal footprint
≈ 1.91 m
Panel vertical rise
≈ 0.58 m
Pitch before margin
≈ 2.46 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
17°
Added margin
0 m
Latitude from the catalogue
19.555800000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.912609511926071 m
Panel vertical rise
0.5847434094454734 m
Calculated clear gap
0.5453885835318032 m
Pitch before margin
2.4579980954578744 m
Gap including margin
0.5453885835318032 m
Row pitch including margin
2.4579980954578744 m
Design solar elevation
46.994417153186355°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Mountain View

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Mountain View’s wider surroundings on Hawai‘i Island include volcanic ground documented in the Olaa soil survey. A forested sample location in the Mountain View quadrangle has cobbly soil over lava-derived material. The survey places the soil series across rolling lava landscapes and identifies both woodland vegetation and cultivated uses in its wider distribution.

Read the full article

Our estimated average daily generation per 1 kW of rated panel capacity is 6.94 kWh/day in summer, 6.14 kWh/day in spring, 5.79 kWh/day in autumn and 4.58 kWh/day in winter. Summer exceeds spring by 0.80 kWh/day, and the summer-to-winter difference is 2.36 kWh/day. Spring and autumn are relatively close, separated by 0.35 kWh/day, while autumn remains 1.21 kWh/day above winter. The four figures are seasonal daily energy means. They retain an annual pattern in this tropical location while allowing individual days to vary; they do not by themselves establish a steady supply every day. Our annual fixed reference is 17° up from horizontal, facing South. It is a broad output-weighted setting from simplified solar geometry. Woodland, buildings and the immediate landform can obstruct sunlight around an array. Their local positions matter alongside this annual reference, rather than the regional label alone defining the visible sky.

Topography around Mountain View

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

The Olaa soil series supplies a documented example of volcanic ground near Mountain View. Its sample location in the Mountain View quadrangle is a forested slope with cobbly loam, underlain by lava fragments and rock. The soil series forms in volcanic ash over ʻaʻā lava. Across the series’ wider distribution, the survey describes undulating and hilly lava-flow landforms on windward volcanic slopes. It also identifies pasture and macadamia orchards among the land uses, with ferns, guava and grasses among the vegetation. The survey example connects forested uneven ground with ash and lava beneath it. Pasture and orchard uses add different land-cover settings within the series’ wider distribution.

Technical location reference

Approximate map point used for Mountain View, United States

This coordinate is the calculation reference for Mountain View, United States. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
19.555800000000000000, -155.108100000000000000
Originally displayed coordinate
lat19.5558 / long-155.1081

How the estimate works

How this Mountain View estimate was calculated

Here is how I calculated the location estimate for Mountain View, United States.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Mountain View Location estimate includes and leaves out

Use the Mountain View figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
