North Chicago, Illinois, located in the Northern Temperate Zone, presents a moderately favorable location for solar energy generation, though it faces several seasonal and environmental challenges that potential solar installers should carefully consider.

Seasonal Solar Production Patterns

The solar energy output at this location varies dramatically throughout the year. Summer months deliver the strongest performance at 6.22 kWh per day per kW of installed solar capacity, making this the prime season for solar generation. Spring follows as the second-best period with 5.15 kWh per day per kW, offering excellent energy production as daylight hours increase and weather conditions improve. Autumn sees a notable decline to 3.11 kWh per day per kW as the region transitions toward winter. Winter presents the most challenging conditions, dropping to just 1.76 kWh per day per kW of installed capacity, representing less than 30% of summer production levels. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 36 degrees facing south. This angle maximizes total annual production by accounting for the sun's varying position throughout the seasons and the location's specific latitude.

Environmental and Weather Challenges

North Chicago's climate presents several factors that can significantly impact solar energy production:

• Snow accumulation: Heavy winter snowfall can completely block solar panels, eliminating energy production until snow melts or is removed
• Ice formation: Ice buildup can create similar blockages and may damage panels if not properly addressed
• Frequent cloud cover: The Great Lakes region experiences considerable cloudy weather, particularly during autumn and winter months
• Lake-effect weather: Proximity to Lake Michigan can create unpredictable weather patterns and increased precipitation

Preventative Installation Measures

Several strategies can help maximize solar production despite these environmental challenges:

• Steep panel angles: Installing panels at steeper angles helps snow slide off more easily, reducing manual cleaning requirements
• Quality mounting systems: Robust mounting hardware designed for heavy snow loads prevents structural damage and maintains optimal panel positioning
• Strategic panel placement: Positioning panels away from trees or structures that might cast shadows, especially important during low winter sun angles
• Regular maintenance access: Designing installations with safe access points for snow removal and cleaning
• Microinverters or power optimizers: These technologies help minimize production losses when individual panels are partially shaded or snow-covered

While North Chicago isn't among the most ideal solar locations due to its harsh winters and variable weather patterns, proper system design and installation techniques can help ensure reasonable energy production, particularly during the highly productive summer and spring seasons.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

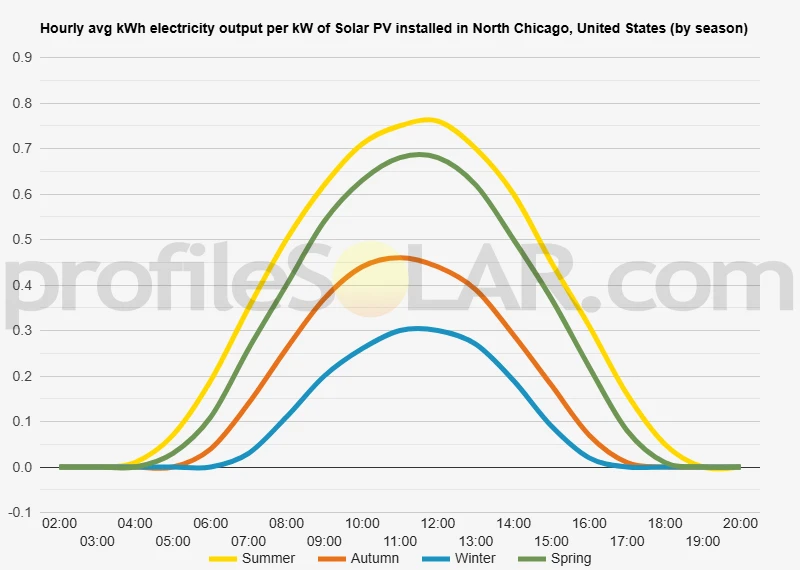

Solar output per kW of installed solar PV by season in North Chicago

Seasonal solar PV output for Latitude: 42.325, Longitude: -87.8561 (North Chicago, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in North Chicago, United States

To maximize your solar PV system's energy output in North Chicago, United States (Lat/Long 42.325, -87.8561) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for North Chicago, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in North Chicago, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	57° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in North Chicago, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in North Chicago, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around North Chicago, United States

Topographical Features of North Chicago

North Chicago sits in the northeastern corner of Illinois, positioned along the western shore of Lake Michigan. The terrain in this area is characterized by relatively flat to gently rolling topography, typical of the Great Lakes region. The landscape was heavily influenced by glacial activity during the last ice age, which left behind a fairly level terrain with subtle undulations and occasional low ridges. The immediate vicinity around North Chicago features elevations that generally range from about 580 feet above sea level near the Lake Michigan shoreline to approximately 700 feet inland. This modest elevation change occurs gradually over several miles, creating gentle slopes rather than steep inclines. The area lacks significant hills or mountainous features, making it part of the broader Midwest prairie landscape. Lake Michigan's presence to the east creates a distinctive boundary, with the shoreline featuring a mix of bluffs, beaches, and wetland areas. Moving westward from the lake, the terrain transitions into agricultural land and suburban development, maintaining its generally flat character with occasional stream valleys and small depressions that add minor variation to the landscape.

Optimal Areas for Large-Scale Solar Development

The relatively flat topography throughout the North Chicago region presents numerous opportunities for large-scale solar photovoltaic installations. The most suitable areas would be the expansive agricultural fields located west and northwest of the city, where large tracts of open land provide unobstructed access to sunlight throughout the day. These agricultural areas offer several advantages for solar development, including minimal topographical obstacles, existing road infrastructure for construction and maintenance access, and proximity to electrical transmission lines. The gentle slopes in these areas can actually be beneficial for solar installations, as they can be oriented to optimize panel positioning while providing natural drainage. The industrial corridors along major transportation routes also present excellent opportunities for solar development. These areas often contain large, relatively flat parcels that may be underutilized or suitable for dual-use applications. The existing electrical infrastructure in these industrial zones would facilitate grid connection for large solar arrays. Areas immediately adjacent to Lake Michigan, while topographically suitable, may face additional considerations such as environmental regulations and zoning restrictions due to their proximity to the shoreline. However, some inland areas that were historically agricultural but are now transitioning away from farming could provide ideal locations for utility-scale solar projects, combining favorable topography with changing land use patterns that make solar development economically attractive.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
