North Manchester, Indiana, located in the Northern Temperate Zone, presents a moderately favorable location for solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Production Patterns

The solar energy output at this location shows dramatic seasonal swings typical of northern temperate climates. Summer delivers the strongest performance at 6.36 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best period with 5.47 kWh per day per kW, offering excellent conditions as daylight hours increase and weather clears. Autumn sees a notable decline to 3.55 kWh per day per kW as the region transitions toward winter conditions. Winter presents the most challenging period, dropping to just 2.24 kWh per day per kW - less than half the spring output and barely one-third of summer production.

Optimal Panel Installation

For fixed solar panel installations at North Manchester, the ideal tilt angle is 35 degrees facing south. This angle maximizes total year-round energy production by optimizing the panels' exposure to the sun's path across all seasons.

Environmental and Weather Challenges

Several local factors in North Manchester can significantly impact solar energy production and require careful planning during installation. Snow accumulation during Indiana winters poses the most substantial challenge to solar output. Heavy snow cover can completely block panels for days or weeks, essentially reducing production to zero during covered periods. The region's continental climate brings regular snowfall that can persist on angled panels, particularly during the already low-production winter months. Ice formation presents another winter concern, as freezing rain common to the Midwest can create thick ice layers on panel surfaces. This not only blocks sunlight but can potentially damage panels if ice accumulates excessively. Severe weather events typical of the Great Lakes region, including hail storms, high winds, and occasional tornadoes, can physically damage solar installations. Indiana experiences these weather patterns regularly during spring and summer months.

Preventative Installation Measures

Several strategies can help maximize solar production despite these challenging conditions:

• Install panels at the optimal 35-degree tilt angle, which naturally helps snow slide off more easily than flatter installations
• Use mounting systems that elevate panels sufficiently above roof surfaces to allow proper snow shedding
• Select panels and mounting hardware rated for high wind loads and hail impact resistance
• Consider installing heating elements or snow guards designed for solar applications in areas with persistent snow cover
• Ensure adequate spacing between panel rows to prevent snow from one row blocking panels below

Regular maintenance becomes particularly important in this climate, including post-storm inspections and occasional snow removal when accumulation prevents natural shedding. While North Manchester isn't ideal for year-round solar production due to its pronounced winter lull, the strong summer and spring performance can still make solar installations economically viable with proper planning and installation techniques.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

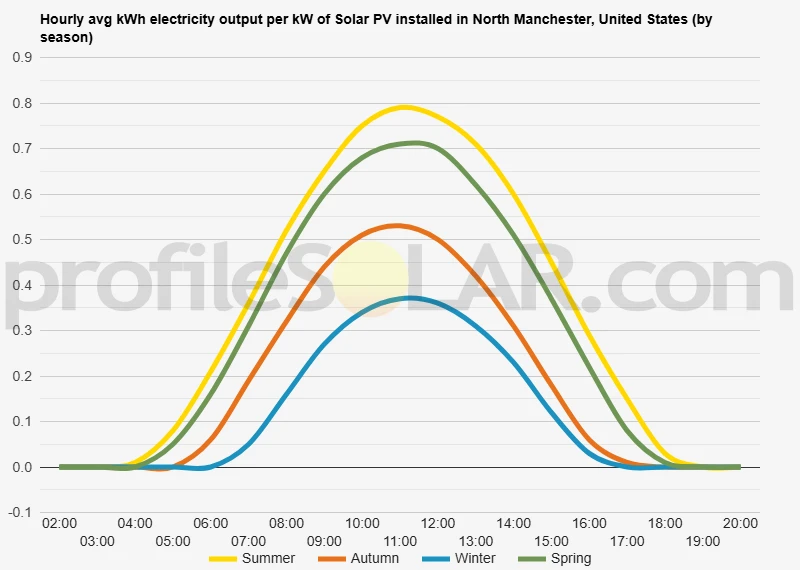

Solar output per kW of installed solar PV by season in North Manchester

Seasonal solar PV output for Latitude: 40.9963, Longitude: -85.7848 (North Manchester, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in North Manchester, United States

To maximize your solar PV system's energy output in North Manchester, United States (Lat/Long 40.9963, -85.7848) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for North Manchester, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in North Manchester, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	55° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in North Manchester, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in North Manchester, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around North Manchester, United States

Topographical Features of North Manchester

North Manchester sits in the heart of Indiana's agricultural landscape, characterized by predominantly flat to gently rolling terrain typical of the Great Lakes Plains region. The area lies at an elevation of approximately 800 feet above sea level, with minimal variation in elevation across the immediate vicinity. This relatively uniform topography was shaped by glacial activity during the last ice age, which left behind fertile soils and a landscape with gentle undulations rather than steep hills or valleys. The Eel River flows through the community, creating a modest river valley that provides the most significant topographical variation in the area. However, even this river valley represents only a gentle depression in the otherwise level terrain. The surrounding countryside consists of vast expanses of farmland with occasional woodlots and small streams that create minor variations in the landscape.

Regional Terrain Characteristics

The broader region around North Manchester extends across Wabash County and into neighboring areas, maintaining similar topographical characteristics throughout. The terrain gradually transitions from the flat plains closer to the Great Lakes region to slightly more rolling hills as one moves southward. Agricultural fields dominate the landscape, interspersed with small towns, rural residences, and patches of deciduous forest. Drainage patterns in the area are well-established, with numerous small creeks and streams flowing generally northeastward toward the Wabash River system. These waterways have carved shallow valleys over time, but the overall relief remains modest. The soil composition consists primarily of deep, well-drained loams that support intensive agriculture, indicating stable ground conditions across most of the region.

Optimal Areas for Large-Scale Solar Development

The topography around North Manchester presents excellent opportunities for large-scale solar photovoltaic installations due to several favorable characteristics. The extensive flat to gently rolling terrain eliminates concerns about steep slopes that could complicate construction or create shading issues between solar panel arrays. The agricultural nature of much of the surrounding land means large, unobstructed parcels are potentially available for development. Areas immediately south and west of North Manchester appear particularly well-suited for solar development. These locations feature the most consistently level terrain with minimal tree cover and excellent access to existing agricultural roads. The gentle slopes that do exist in these areas are typically oriented in favorable directions for solar panel placement, allowing for optimal positioning without extensive grading or site preparation. The relatively sparse development pattern in the rural areas surrounding North Manchester means that large solar installations would face fewer obstacles from existing structures or infrastructure. The open agricultural landscape provides clear sight lines and minimal shading concerns from buildings or mature forest stands. Additionally, the well-established road network serving the farming community would facilitate construction access and ongoing maintenance operations for solar facilities. Areas closer to the Eel River and other waterways might be less suitable due to potential flooding concerns and the presence of riparian vegetation that could create shading issues. However, the elevated areas between these water features offer ideal conditions with stable, well-drained soils and unobstructed exposure to the sky throughout the day.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
