Solar Energy Generation in Nottingham, Maryland

Nottingham, Maryland, United States offers a moderately favorable location for solar PV energy generation, with significant seasonal variations in output. Located in the Northern Temperate Zone, this site experiences considerable differences in solar production throughout the year, making it important to understand these patterns when planning a solar installation. The seasonal solar energy production at this location shows a clear pattern. During summer months, solar panels generate their highest output at 6.41kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.60kWh/day. Production drops significantly in autumn to 3.71kWh/day, while winter represents the least productive period with only 2.19kWh/day per kilowatt installed.

Optimal Panel Installation

For fixed solar panel installations in Nottingham, the ideal tilt angle is 34 degrees facing South. This specific angle maximizes year-round energy production by optimizing the panels' exposure to the sun's rays across all seasons. This calculation accounts for Nottingham's latitude and the Earth's elliptical orbit to ensure the best possible annual energy yield.

Seasonal Considerations

The substantial difference between summer and winter production (nearly three times more energy in summer) indicates that this location experiences significant seasonal variability. This means that system sizing should account for these fluctuations, potentially requiring larger installations to meet winter energy needs if year-round self-sufficiency is desired.

Environmental and Weather Factors

Several environmental factors could impact solar production in Nottingham:

• Snow accumulation during winter months can temporarily reduce output unless panels are installed at the recommended 34-degree tilt, which helps snow slide off more easily
• Tree cover and shading from nearby buildings should be carefully evaluated, as Nottingham has moderate suburban development
• The region experiences occasional severe weather including thunderstorms and hurricanes that could damage installations if not properly secured

Preventative measures for these challenges include using sturdy mounting systems rated for local wind conditions, implementing regular maintenance to clear debris, and considering snow guards in strategic positions to prevent damaging snow slides while allowing panels to clear naturally. Additionally, microinverters or power optimizers can help minimize production losses when partial shading occurs. Overall, while not ideal year-round due to the significant winter production drop, Nottingham offers good solar potential, especially from March through September when production levels remain relatively high.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

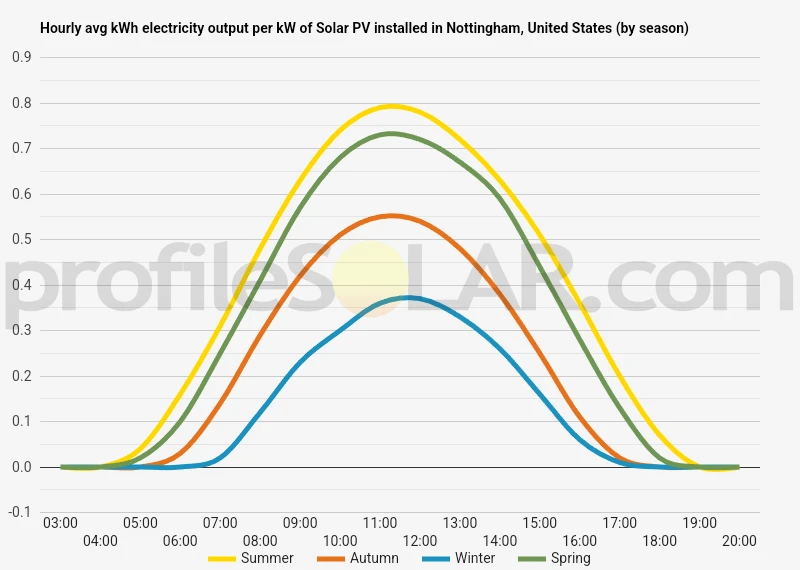

Solar output per kW of installed solar PV by season in Nottingham

Seasonal solar PV output for Latitude: 39.364, Longitude: -76.4522 (Nottingham, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Nottingham, United States

To maximize your solar PV system's energy output in Nottingham, United States (Lat/Long 39.364, -76.4522) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nottingham, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nottingham, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	44° South in Autumn	54° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nottingham, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nottingham, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nottingham, United States

The topography around Nottingham, Maryland, located at coordinates 39.364° North, 76.4522° West, is characterized by gently rolling terrain typical of the Piedmont Plateau region of Maryland. This area sits at the transition between the relatively flat Coastal Plain to the east and the more pronounced hills of the Piedmont to the west. Nottingham itself has an elevation of approximately 300-400 feet above sea level, with modest variations in the surrounding landscape. The region features a mix of low hills, shallow valleys, and several stream corridors that have carved gentle depressions through the landscape over time. The nearby Gunpowder Falls and Little Gunpowder Falls have created more pronounced valleys in certain areas. The overall terrain is undulating rather than steep, with gradual changes in elevation that create a pleasant, varied landscape.

Soil and Land Cover

The soils around Nottingham tend to be moderately well-drained, consisting primarily of loams and sandy loams. The area includes a mixture of forested patches, agricultural lands, suburban development, and some commercial zones. The natural vegetation consists predominantly of deciduous hardwood forests, though many areas have been cleared for development or agriculture over the centuries since European settlement.

Potential for Solar PV Development

For large-scale solar PV development, several nearby areas present favorable conditions: The gently sloping south-facing hillsides throughout the region offer optimal orientation for solar collection. These areas receive consistent sunlight throughout the day and experience minimal shadowing effects from surrounding terrain. Former agricultural lands in the vicinity, particularly those that have become less productive or are no longer actively farmed, present excellent opportunities for solar development. These areas typically have already been cleared, have established access roads, and often have relatively flat terrain that requires minimal grading. Some of the commercial and industrial zones along the I-95 corridor, located a short distance west of Nottingham, contain large flat rooftops and unused parcels that could accommodate substantial solar arrays. These areas also benefit from proximity to existing electrical infrastructure. The region between Nottingham and White Marsh, characterized by relatively flat terrain with good southern exposure, offers several potential sites for large-scale installations. This area balances the need for suitable topography with reasonable proximity to population centers that would consume the generated electricity.

Topographical Challenges

Despite the generally favorable conditions, some topographical features present challenges for large-scale solar development. Areas with steep slopes, particularly those facing north, would be poor choices for solar installations due to reduced direct sunlight and increased installation complexity. The stream valleys and associated floodplains throughout the region should be avoided for solar development, as they may be subject to periodic flooding and often contain sensitive ecological habitats. Additionally, these areas frequently have tree cover that would need to be cleared, raising both environmental and practical concerns. The more densely developed residential neighborhoods, particularly those with mature tree canopies, would present significant challenges for large-scale installations, though they may still be suitable for distributed residential solar systems. Overall, the moderately varied topography of the Nottingham area offers numerous suitable locations for solar PV development, particularly in areas with southern exposure, gentle slopes, and existing clearings or development.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
