Westfield, New Jersey offers moderately good conditions for year-round solar energy generation, though like most locations in the Northern Temperate Zone, it experiences significant seasonal variation in solar output.

Seasonal Solar Performance

Summer provides the strongest solar generation at this location, producing 6.02 kWh per day for each kilowatt of installed solar capacity. This represents peak performance when the sun is highest in the sky and daylight hours are longest. Spring follows as the second-best season with 5.44 kWh per day per kilowatt, making it an excellent time for solar production. Autumn sees a notable drop to 3.48 kWh per day per kilowatt as the sun angle decreases and weather patterns change. Winter presents the most challenging conditions, generating only 2.14 kWh per day per kilowatt - roughly one-third of summer output. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 35 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighted by actual solar potential at this latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors in Westfield could impact solar energy generation:

• Snow accumulation: Winter snowfall can completely block panels, eliminating production until cleared
• Seasonal storms: The region experiences nor'easters and thunderstorms that reduce solar irradiance
• Humidity and haze: Summer humidity can create atmospheric haze that diminishes solar intensity
• Tree coverage: The area's mature tree canopy can create shading issues, particularly when leaves are present

Preventative Installation Measures

To maximize solar production despite these challenges, several installation strategies prove effective. Panels should be mounted with adequate spacing from trees and buildings to minimize shading, especially during lower sun angles in fall and winter. The 35-degree tilt angle not only optimizes sun exposure but also helps snow slide off panels naturally. Installing a monitoring system allows quick identification of performance drops due to snow coverage or other obstructions. Some homeowners invest in panel heating systems or choose darker-colored panels that absorb more heat to accelerate snow melting. Regular maintenance becomes crucial, including trimming nearby vegetation and cleaning panels to remove pollen, dust, and debris that accumulate throughout the year. Professional installation should account for local wind loads and ensure secure mounting to withstand the region's storm systems. Overall, while Westfield presents some seasonal and weather-related challenges for solar generation, proper installation techniques and maintenance can help maximize the considerable solar potential this location offers, particularly during the productive spring and summer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

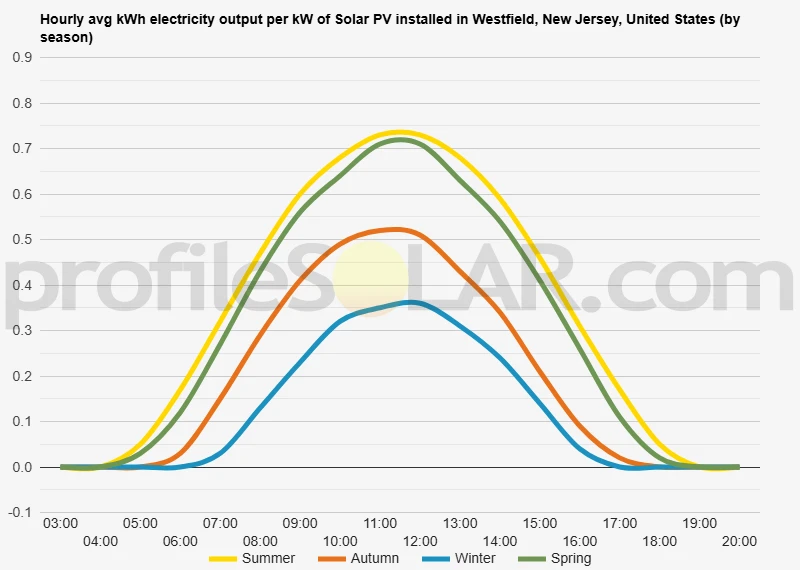

Solar output per kW of installed solar PV by season in Westfield, New Jersey

Seasonal solar PV output for Latitude: 40.6496, Longitude: -74.3505 (Westfield, New Jersey, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Westfield, New Jersey, United States

To maximize your solar PV system's energy output in Westfield, New Jersey, United States (Lat/Long 40.6496, -74.3505) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Westfield, New Jersey, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Westfield, New Jersey, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	56° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Westfield, New Jersey, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Westfield, New Jersey, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Westfield, New Jersey, United States

Topographical Features of Westfield and Surrounding Areas

Westfield, New Jersey sits within the Piedmont region of the Atlantic Coastal Plain, characterized by gently rolling hills and relatively modest elevation changes. The town itself occupies terrain that ranges from approximately 100 to 200 feet above sea level, with the landscape featuring a series of low ridges and shallow valleys that create a pleasantly undulating topography throughout the area.

The region benefits from well-drained soils and stable geological conditions, with bedrock consisting primarily of sedimentary formations that provide solid foundations for development. The terrain slopes gradually eastward toward the Atlantic Ocean, following the natural drainage patterns that feed into the Rahway River system and its tributaries.

Local topography includes numerous small hills and ridgelines that run in a generally northeast-southwest direction, interspersed with gentle valleys and flat to moderately sloping areas. These features create natural variations in elevation that can influence solar panel placement and orientation, though the changes are typically gradual rather than steep or dramatic.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations in the Westfield vicinity would be the broader, flatter areas found in the southern and southwestern portions of Union County. These areas offer expansive tracts of relatively level terrain with minimal shading from topographical features, making them ideal for large solar arrays that require consistent exposure throughout the day.

The Cranford and Garwood areas, located southwest of Westfield, present particularly favorable conditions with their extensive flat to gently sloping terrain. These locations provide the space necessary for utility-scale solar installations while maintaining the stable geological conditions essential for supporting large solar infrastructure over extended periods.

Areas along the Rahway River corridor also present opportunities, particularly where the floodplain creates broad, relatively flat expanses. However, these locations would require careful consideration of flood management and environmental regulations. The elevated areas east toward the Watchung Mountains, while offering good southern exposure on south-facing slopes, may be less suitable for large-scale development due to steeper grades and potential shading from adjacent ridgelines.

The industrial and commercial zones scattered throughout the region often occupy the most topographically suitable areas, as these locations were historically chosen for their flat terrain and accessibility. Repurposing underutilized industrial sites or incorporating solar installations into existing commercial developments could provide excellent opportunities for significant solar capacity while taking advantage of already-developed infrastructure and favorable topographical conditions.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
