Solar PV Analysis of Old Bridge, United States
Old Bridge, New Jersey is a fairly good location for generating solar energy all year round. However, the amount of electricity you can generate from solar panels varies depending on the season.
In summer, each kilowatt (kW) of installed solar can produce around 6.05 kilowatt-hours (kWh) of electricity per day. This is the best time of year for generating solar power in Old Bridge due to longer daylight hours and more direct sunlight.
During autumn, each kW can generate about 3.54 kWh/day. In winter, this drops to approximately 2.18 kWh/day because there are fewer daylight hours and less direct sunlight due to the angle of the sun in relation to Earth's surface.
Spring sees an increase again with every kW producing around 5.47 kWh/day as days get longer and we move towards summer.
To maximize your year-round production from solar panels at this location, you should position them at a tilt angle of 35 degrees facing South. This will make sure they capture as much sunlight as possible throughout different times of the year.
As far as local factors that could affect your solar production go; weather conditions like heavy snowfall during winter could cover your panels reducing their output or even causing damage if not cleared promptly. Similarly, shade from trees or other buildings might also reduce how much sunlight hits your panels especially during morning and late afternoon when sun is low on horizon.
To prevent these issues affecting your energy production: Keep an eye on weather forecasts so you're prepared for any snowfall - clearing it off quickly would help ensure maximum efficiency; Trim any overhanging branches that might cast shadows onto your panels; And finally consider installing tracking systems which adjust panel positions throughout day following sun’s path across sky – although these are more expensive than fixed installations they can significantly increase energy output particularly where shading or sub-optimal installation angles are unavoidable concerns.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in the United States by location

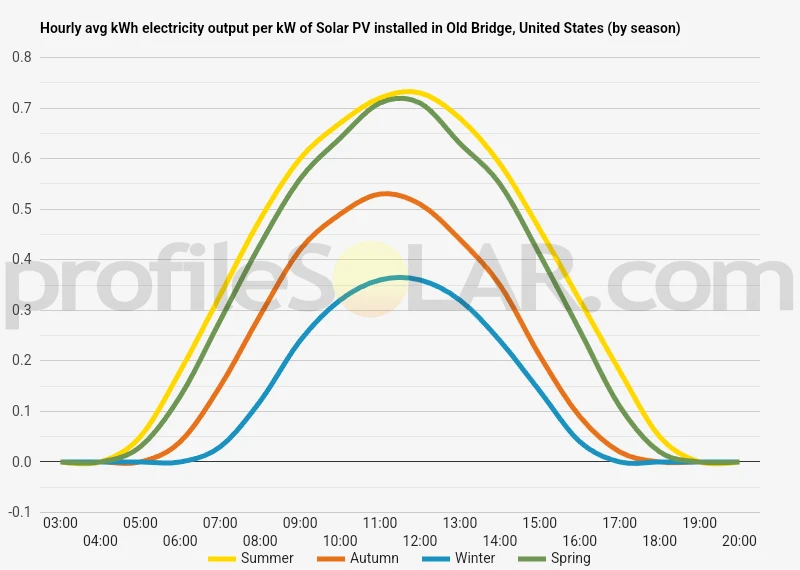

Solar output per kW of installed solar PV by season in Old Bridge
Seasonal solar PV output for Latitude: 40.3913, Longitude: -74.3247 (Old Bridge, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 35° South in Old Bridge, United States
To maximize your solar PV system's energy output in Old Bridge, United States (Lat/Long 40.3913, -74.3247) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Old Bridge, United States
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Old Bridge, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 24° South in Summer | 45° South in Autumn | 55° South in Winter | 33° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Old Bridge, United States
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Old Bridge, United States.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Old Bridge, United States
Old Bridge, New Jersey, United States is located in the coastal plains region. The topography of the area is relatively flat with some low-lying hills and valleys. The region features a mix of developed land, including residential areas and commercial zones, along with forested areas and water bodies like Matchaponix Brook.
For large-scale solar PV installations, it would be ideal to look for open, flat spaces that receive plenty of sunlight throughout the year. In Old Bridge Township or its vicinity:
1) Unused or underused industrial land: These sites are often large enough to accommodate utility-scale solar projects.
2) Landfills/Brownfields: Solar farms can also be built on capped landfills or brownfields (previously developed lands that are not currently in use), which can provide significant space for such projects while also making productive use of otherwise unusable lands.
3) Large commercial rooftops: Large buildings like warehouses or shopping centers have expansive rooftops that could potentially host substantial solar arrays.
4) Agricultural lands: If compatible with existing farming practices (like grazing), these could also serve as potential locations for solar PV systems – a concept known as agrivoltaics.
However, any decision should consider local zoning laws and regulations related to renewable energy infrastructure development. Additionally, environmental impact assessments should be conducted to ensure minimal disruption to local ecosystems.
Please note this analysis is general and does not replace a thorough site-specific feasibility study which would consider factors such as shading from nearby structures/trees/hills etc., soil suitability for mounting structures/foundations among other things.
United States solar PV Stats as a country
United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United States?
Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
