Location estimate
Old Point Station
South Carolina · United States
Approximate location reference—not a rooftop, property or survey point.
Seasonal average-day estimates
Selected capacity 1 kWp
Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.
Logarithmic slider: each labelled interval is 10× capacity. Energy scales linearly with capacity.
Arrow keys change capacity by about 2.3 percent per step. Page Up and Page Down move one labelled interval. Home selects 0.1 kWp; End selects 10 MWp.
Enter exact capacity and unit
Enter at least 0.1 kWp. Decimal point or comma; no thousands separators. 1 MWp = 1,000 kWp. Changing units keeps the same capacity. Exact entry keeps your precision; slider adjustments select three-significant-figure sizes.
There is no fixed upper capacity limit. Values and results must fit the calculator’s numeric range; the slider’s range is not an exact-entry limit.
Showing seasonal average-day estimates for 1 kWp.
Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.
Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.
Summer
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Autumn
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Winter
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Spring
kWh/day
Positive estimate rounded below 0.01 kWh/day display precision.
Very large results use scientific notation; an approximate capacity label is marked ≈. Exact capacity and full results remain available under Source basis and scaling limits.
Shared scale: 0–7.00 kWh/day.
I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.
This is illustrative scaling, not a site-specific production prediction.
Source basis and scaling limits
Original seasonal average-day estimates for Old Point Station, in kWh/kWp/day.
I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.
| Season | Recorded kWh/kWp/day | Exact selected-capacity result · kWh/day |
|---|---|---|
| Summer | 6.55 | 6.55 × 1 kWp = 6.55 kWh/day |
| Autumn | 4.48 | 4.48 × 1 kWp = 4.48 kWh/day |
| Winter | 2.88 | 2.88 × 1 kWp = 2.88 kWh/day |
| Spring | 6.12 | 6.12 × 1 kWp = 6.12 kWh/day |
Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.
Full results rounded to two decimal places
These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.
- Summer · kWh/day
- 6.55
- Autumn · kWh/day
- 4.48
- Winter · kWh/day
- 2.88
- Spring · kWh/day
- 6.12
The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.
These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.
Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.
Year-round panel setup
- Tilt from horizontal
- 31°
- Facing direction
- South
Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.
Suggested seasonal tilts
Tilt from horizontal · facing direction
- Summer
Jun, Jul, Aug - 19°South
- Autumn
Sep, Oct, Nov - 40°South
- Winter
Dec, Jan, Feb - 50°South
- Spring
Mar, Apr, May - 27°South
The seasonal electricity figures do not model gains from switching between these settings.
About this orientation
This schematic shows the year-round panel tilt and facing direction for Old Point Station, South Carolina, United States.
For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.
I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.
The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.
Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.
Seasonal orientation diagrams
These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.
Summer
19° tilt · South
Illustrative direction; exact azimuth not recorded.
Autumn
40° tilt · South
Illustrative direction; exact azimuth not recorded.
Winter
50° tilt · South
Illustrative direction; exact azimuth not recorded.
Spring
27° tilt · South
Illustrative direction; exact azimuth not recorded.
View larger

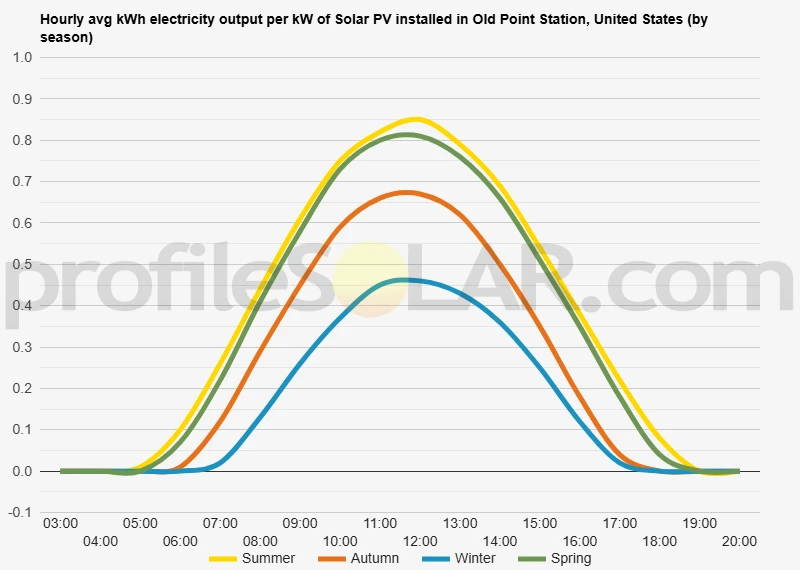

Hourly electricity pattern for Old Point Station, United States
Hourly profiles by season — Old Point Station, United States · 2021
This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.
2021 is the method’s reference year, not verified year coverage for every point in this historical chart.
The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.
Row-spacing planning
Planning solar-panel row spacing in Old Point Station
Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.
Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.
Panel and spacing inputs
Along the tilted surface, across the row. Greater than 0, up to 20 m; 2 m is an example.
Optional extra space, 0–100 m.
Starts at the recorded year-round tilt. Decimal entry is kept at your entered precision.
Linear slider: arrows select the next whole degree; Page Up/Down 10°, Home 0°, End 90°. Only moving it changes your numeric entry.
Results update automatically.
Example calculated with a 2 m panel surface length. Replace that example with the dimension of the module you are considering.
Example calculated with a 2 m panel surface length. Replace that example with the dimension of the module you are considering. Other published location estimates remain available.
Adjust the inputs to update this diagram and its results.
Row pitch including margin
≈ m
- Sunlight ray
- First row’s ground shadow
- Shadow endpoint
At this scale the panel surfaces are very small. The row labels locate them; exact dimensions remain available below.
- Calculated clear gap
- ≈ m
- Added margin
- ≈ 0 m
- Gap including margin
- ≈ m
- Panel horizontal footprint
- ≈ m
- Panel vertical rise
- ≈ m
- Pitch before margin
- ≈ m
Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.
One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.
Detailed inputs and unrounded results
More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.
- Panel surface length
- 2 m
- Tilt up from horizontal
- 31°
- Added margin
- 0 m
- Latitude from the catalogue
- 34.978100000000000000° (Northern Hemisphere)
- Panel horizontal footprint
- 1.7143346014042247 m
- Panel vertical rise
- 1.0300761498201083 m
- Calculated clear gap
- 1.6761920940404234 m
- Pitch before margin
- 3.390526695444648 m
- Gap including margin
- 1.6761920940404234 m
- Row pitch including margin
- 3.390526695444648 m
- Design solar elevation
- 31.572117153186348°
How this spacing estimate is calculated
I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.
δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).
Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.
The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.
The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.
Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.
Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.
Solar context for Old Point Station
Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.
Old Point Station, South Carolina shows strong potential for year-round solar energy generation, with the location producing consistently good electricity output across most seasons. This Northern Sub Tropical location at coordinates 34.9781, -80.8541 demonstrates the typical solar patterns expected for the southeastern United States.
Read the full article
<h3>Seasonal Solar Performance</h3> The solar energy output at Old Point Station varies significantly throughout the year, reflecting the natural seasonal changes in sun angle and daylight duration. Summer delivers the highest production at 6.55 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows closely behind with 6.12 kWh per day per kW, indicating excellent conditions for solar energy production during these warmer months. Autumn sees a noticeable decline to 4.48 kWh per day per kW, while winter drops to the lowest output at 2.88 kWh per day per kW of installed capacity. Despite this winter reduction, the location still maintains reasonable solar production year-round, which is characteristic of its southern latitude and subtropical climate. <h3>Optimal Installation Configuration</h3> For maximum year-round energy production at Old Point Station, solar panels should be installed at a fixed tilt angle of 31 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting for the varying solar irradiance levels across seasons. <h3>Environmental and Weather Factors</h3> Several local factors in South Carolina could potentially impact solar energy production at this location: <ul> <li><strong>High humidity and moisture:</strong> The subtropical climate brings elevated humidity levels that can reduce panel efficiency and promote dirt accumulation</li> <li><strong>Frequent thunderstorms:</strong> Summer afternoon storms are common in this region, temporarily reducing solar output</li> <li><strong>Pollen and organic debris:</strong> Heavy pollen seasons and falling leaves can coat panels and reduce light transmission</li> <li><strong>Hurricane and severe weather risk:</strong> The location's proximity to the Atlantic coast creates potential for damaging storms</li> </ul> <h3>Preventative Measures for Optimal Performance</h3> To maximize solar energy production despite these challenges, several installation strategies should be considered. Regular cleaning schedules become particularly important in this humid environment, with panels requiring more frequent washing to remove pollen, dust, and organic matter that accumulates more readily in moist conditions. Proper mounting systems designed for high wind loads are essential given the hurricane risk in South Carolina. Panels should be installed with adequate spacing to allow air circulation, which helps reduce the efficiency losses associated with high temperatures and humidity. Additionally, choosing panels with good low-light performance can help maintain output during the frequent cloudy periods that accompany thunderstorms. Installing monitoring systems allows for quick identification of performance issues, while ensuring proper drainage around ground-mounted systems prevents water damage during heavy rainfall events common to the region.
Topography around Old Point Station
These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.
<h3>Topographical Features of Old Point Station</h3> South Carolina's Piedmont is a rolling transition between the Blue Ridge and the Coastal Plain. The area features relatively modest elevation changes, with the local topography consisting primarily of low hills, shallow valleys, and gradual slopes that rarely exceed moderate grades. The immediate vicinity around Old Point Station displays the typical Piedmont pattern of undulating farmland and mixed forest, with elevations generally ranging between 400 and 600 feet above sea level. Small creeks and tributaries have carved subtle drainage patterns through the landscape over millennia, creating a network of gentle valleys separated by rounded ridgelines. The terrain lacks dramatic elevation changes or steep escarpments, instead presenting a series of rolling hills that provide good drainage while maintaining relatively stable soil conditions. <h3>Soil and Geological Characteristics</h3> The underlying geology consists primarily of weathered crystalline rocks typical of the Piedmont, which have broken down over time to form clay-rich soils with good structural integrity. These soils generally provide stable foundations for construction projects while maintaining adequate drainage properties. The area experiences minimal risk from geological hazards such as landslides or significant erosion, making it well-suited for infrastructure development. Agricultural use has historically dominated much of the surrounding landscape, indicating that the soils possess reasonable fertility and workability. The presence of established farming operations also suggests that large, relatively flat parcels of land exist in the vicinity, which could potentially be repurposed for alternative land uses. <h3>Optimal Areas for Large-Scale Solar Development</h3> The most suitable locations for extensive solar installations would be found on the broader, flatter ridge tops and gentle south-facing slopes that characterize much of the surrounding agricultural land. These elevated areas typically offer the best combination of minimal grading requirements, good drainage, and reduced shading from surrounding terrain features. Former agricultural fields and pastureland present particularly attractive opportunities, as these areas have already been cleared and leveled to some degree. The existing field patterns often provide contiguous parcels of sufficient size to accommodate large solar arrays while maintaining efficient layouts that minimize infrastructure costs. Areas along the broader valley floors could also prove suitable, provided they demonstrate adequate drainage and avoid potential flooding zones associated with local waterways. These flatter areas would require minimal site preparation and could accommodate solar tracking systems if desired, though careful attention to drainage patterns would be essential. The gentle nature of most slopes in the region means that many areas with southern exposure could be developed without extensive grading or terracing. However, the most cost-effective installations would likely focus on the flatter agricultural areas and broad ridge tops where construction complexity and associated costs would remain minimal while still providing excellent solar exposure throughout the day.
Technical location reference
Approximate map point used for Old Point Station, United States
This coordinate is the calculation reference for Old Point Station, United States. Extra decimal places do not make it a rooftop, property or survey point.
Coordinates and precision
- Map coordinate
- 34.978100000000000000, -80.854100000000000000
- Originally displayed coordinate
- lat34.9781 / long-80.8541
How the estimate works
How this Old Point Station estimate was calculated
Here is how I calculated the location estimate for Old Point Station, United States.
Read how all Location estimates workSource and scope
I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.
The figures are calculated estimates, not measured output or a new NASA request while you browse.
Reference period and source details
The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.
NASA POWER project reference
The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.
This source reference does not imply NASA endorsement.
Use the result carefully
What this Old Point Station Location estimate includes and leaves out
Use the Old Point Station figures for broad location context, with the following boundaries in mind.
- These catalogue estimates are informational; they do not establish a site-specific production result.
- The location is an approximate reference, not a property, rooftop or survey coordinate.
- The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
- The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
- Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
