Peoria Heights, Illinois, located in the Northern Temperate Zone, experiences significant seasonal variation in solar energy production that makes it a moderately suitable location for solar PV installations year-round, though with some important limitations during winter months.

Seasonal Solar Production Patterns

The solar energy output at this location varies dramatically throughout the year. Summer provides the strongest production at 6.34 kWh per day per kW of installed solar capacity, making it the peak season for energy generation. Spring follows as the second-best season with 5.26 kWh per day per kW, offering excellent production as daylight hours increase and weather conditions improve. Autumn sees a notable decline to 3.61 kWh per day per kW as the sun angle decreases and weather patterns change. Winter presents the most challenging conditions, dropping to just 2.30 kWh per day per kW of installed capacity, representing less than 40% of summer production levels.

Optimal Installation Configuration

For maximum year-round energy production at Peoria Heights, solar panels should be installed at a fixed tilt angle of 35 degrees facing south. This angle is calculated to optimize total annual output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar potential at this latitude.

Local Environmental and Weather Challenges

Several factors specific to the Peoria Heights area can significantly impact solar energy production:

• Snow accumulation: Illinois winters bring substantial snowfall that can completely block solar panels for days or weeks
• Ice formation: Freezing rain and ice storms can create persistent coverings on panel surfaces
• Severe thunderstorms: The region experiences frequent storms with heavy rain, hail, and strong winds during spring and summer
• High humidity and fog: Moisture in the air can reduce solar irradiance, particularly during summer months

Preventative Measures for Enhanced Production

Several installation strategies can help mitigate these local challenges: The 35-degree tilt angle recommended for this location actually helps with snow shedding, as steeper angles allow snow to slide off more easily than flatter installations. Installing panels with adequate spacing between rows prevents snow from one panel from shading adjacent panels when it slides off. Choosing panels with smooth, non-textured surfaces and anti-reflective coatings can minimize snow and ice adhesion. Some installers in this climate zone also recommend slightly increasing the tilt angle to 40 degrees to further improve snow shedding, though this may slightly reduce overall annual production. Proper structural design is essential given the region's severe weather potential. This includes using reinforced mounting systems rated for high wind loads and impact-resistant panels that can withstand hail. Ensuring adequate drainage around ground-mounted systems prevents ice dams and water pooling. Regular maintenance becomes particularly important in this climate, including pre-winter inspections and prompt snow removal when safe to do so. Installing monitoring systems helps identify when panels are underperforming due to weather-related obstructions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

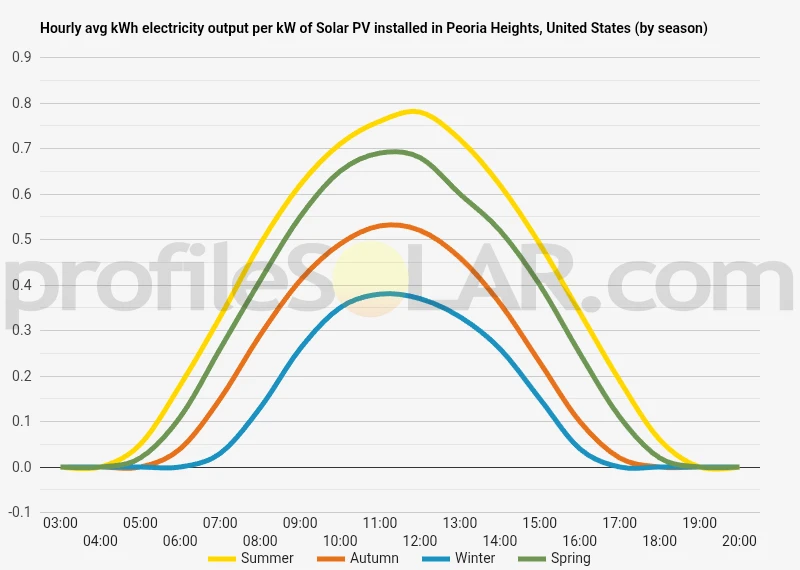

Solar output per kW of installed solar PV by season in Peoria Heights

Seasonal solar PV output for Latitude: 40.7503, Longitude: -89.5704 (Peoria Heights, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Peoria Heights, United States

To maximize your solar PV system's energy output in Peoria Heights, United States (Lat/Long 40.7503, -89.5704) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Peoria Heights, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Peoria Heights, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Peoria Heights, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Peoria Heights, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Peoria Heights, United States

Topographical Features of Peoria Heights

Peoria Heights sits prominently on elevated bluffs overlooking the Illinois River valley, creating a distinctive landscape that contrasts sharply with the surrounding terrain. The community is positioned approximately 150 feet above the river level, offering commanding views across the valley floor. These bluffs are part of the broader geological formation that characterizes much of central Illinois, where ancient glacial activity carved out river valleys and left behind rolling hills and elevated ridges. The topography immediately around Peoria Heights is characterized by steep slopes descending toward the Illinois River to the west and more gradual inclines extending eastward into the prairie landscape. The bluff faces are often quite pronounced, with some areas featuring slopes exceeding 20 degrees, making them unsuitable for large-scale development projects. The terrain becomes more moderate as it transitions away from the river valley, eventually flattening into the characteristic agricultural plains of central Illinois.

Drainage and Soil Conditions

The elevated position of Peoria Heights means that water drainage flows naturally away from the bluffs toward the Illinois River and its tributaries. Several small creeks and drainage ways cut through the landscape, creating minor valleys and ravines that further diversify the local topography. The soil composition varies considerably across the area, with the bluff tops typically featuring well-drained soils while the lower elevations near the river contain more moisture-retentive clay deposits. The transition zones between the bluffs and the prairie exhibit moderately rolling terrain with gentle slopes that extend for considerable distances. These areas benefit from the rich glacial soils that make central Illinois renowned for agriculture, while also providing adequate drainage for various land uses.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Peoria Heights would be found in the gently rolling agricultural areas extending eastward and southward from the community. These zones offer the ideal combination of relatively flat terrain with minimal shading obstacles, stable soil conditions, and sufficient space for extensive solar arrays. The gradual slopes in these areas, typically ranging from one to five degrees, provide excellent drainage while maintaining optimal positioning for solar panels. Agricultural fields located within a five to ten mile radius of Peoria Heights represent prime candidates for solar development, particularly those situated on the higher elevations of the prairie landscape. These locations avoid the complications associated with floodplain restrictions near the Illinois River while benefiting from unobstructed sky exposure throughout the day. The areas immediately north and northeast of Peoria Heights also present favorable conditions, where the terrain transitions from the river bluffs to expansive farmland. These locations offer stable, well-drained soils and minimal topographical constraints that would interfere with large-scale solar installations. Conversely, the steep bluff faces and heavily wooded areas closer to the Illinois River would be unsuitable for major solar projects due to challenging terrain, potential shading from mature tree cover, and environmental sensitivity concerns. The river valley floor, while relatively flat, may face periodic flooding risks and would require careful evaluation of soil stability and drainage patterns before considering solar development.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
