Pinckneyville, Illinois represents a moderately favorable location for solar energy generation, though it experiences significant seasonal variation typical of the Northern Temperate Zone. The solar output potential varies considerably throughout the year, with summer being the most productive season and winter showing substantially reduced generation capacity.

Seasonal Solar Performance

Summer emerges as the peak solar generation period in Pinckneyville, producing 6.58 kWh per day per kW of installed solar capacity. This represents the optimal time for solar energy production when panels can generate nearly three times more electricity than during winter months. Spring provides the second-best solar generation period with 5.39 kWh per day per kW, making it an excellent shoulder season for solar production. The combination of increasing daylight and favorable weather conditions creates strong energy output during this time. Autumn delivers moderate solar generation at 3.95 kWh per day per kW of installed capacity. While significantly lower than summer and spring production, autumn still provides reasonable solar energy generation before winter's challenges arrive. Winter presents the most challenging season for solar generation in Pinckneyville, producing only 2.39 kWh per day per kW of installed solar. This represents less than 40% of summer production levels, highlighting the seasonal limitations of solar energy in this Northern Temperate Zone location.

Optimal Panel Configuration

For maximum year-round solar production at Pinckneyville, fixed solar panels should be tilted at 33 degrees facing south. This angle has been calculated to optimize total annual energy generation by accounting for the sun's varying position throughout the seasons and weighting the angles based on solar irradiance potential.

Local Environmental Challenges

Several environmental and weather factors in Pinckneyville can significantly impact solar energy production and require careful consideration during installation planning. Snow accumulation during Illinois winters poses a major challenge for solar panels. Heavy snow can completely block solar panels for extended periods, eliminating energy production until the snow melts or is removed. Installing panels at steeper angles helps promote natural snow shedding, while ensuring adequate spacing between panel rows prevents snow from one row shadowing panels below. Ice formation presents another winter challenge that can reduce solar output and potentially damage equipment. Anti-icing systems or heated panel edges can help prevent ice buildup, though these solutions must be weighed against their energy consumption costs. The region experiences frequent cloud cover and overcast conditions, particularly during autumn and winter months, which directly reduces solar irradiance reaching the panels. While this cannot be prevented, selecting high-quality panels with better low-light performance can help maximize generation during cloudy periods.

Preventative Installation Measures

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels at optimal tilt angles steeper than 33 degrees in snow-prone areas to encourage natural snow removal
• Ensure adequate ground clearance to prevent snow drifts from covering lower panel edges
• Use mounting systems that allow safe manual snow removal when necessary
• Select panels with anti-reflective coatings and superior low-light performance capabilities
• Install micro-inverters or power optimizers to minimize impact when individual panels are partially shaded or snow-covered

Regular maintenance becomes particularly important in Pinckneyville's climate. Scheduling professional cleaning and inspection services before peak production seasons ensures panels operate at maximum efficiency when solar generation potential is highest. Despite these challenges, Pinckneyville's solar potential remains viable for year-round energy generation, particularly when installations incorporate appropriate design considerations and maintenance practices to address local environmental factors.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

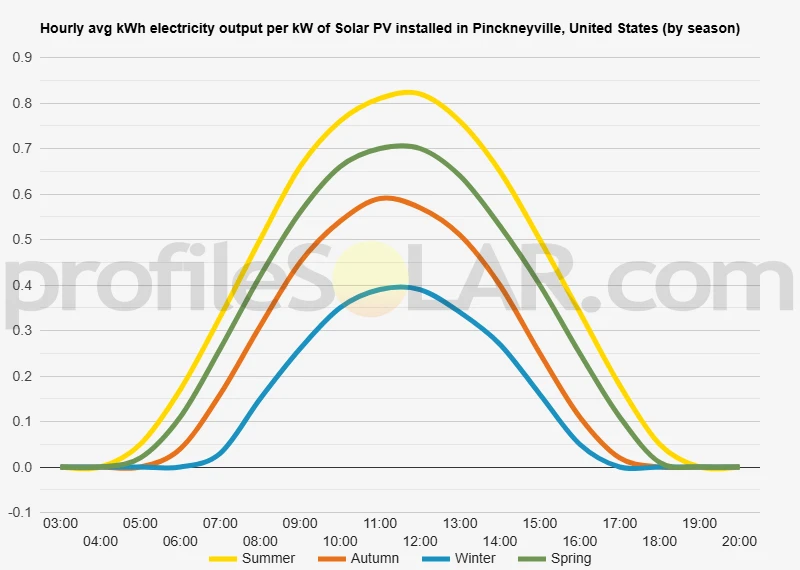

Solar output per kW of installed solar PV by season in Pinckneyville

Seasonal solar PV output for Latitude: 38.0914, Longitude: -89.3861 (Pinckneyville, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 33° South in Pinckneyville, United States

To maximize your solar PV system's energy output in Pinckneyville, United States (Lat/Long 38.0914, -89.3861) throughout the year, you should tilt your panels at an angle of 33° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Pinckneyville, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Pinckneyville, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
22° South in Summer	42° South in Autumn	53° South in Winter	31° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Pinckneyville, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Pinckneyville, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Pinckneyville, United States

Topography Around Pinckneyville

Pinckneyville sits in the heart of southern Illinois, positioned within the relatively flat terrain that characterizes much of the Midwest. The landscape around this area consists primarily of gently rolling plains with modest elevation changes, creating a topography that is generally favorable for development and agricultural activities. The region lies within what geographers call the Interior Plains, where the land has been shaped by ancient glacial activity that left behind fertile soils and gradual slopes.

The elevation around Pinckneyville typically ranges from approximately 400 to 600 feet above sea level, with the terrain featuring subtle undulations rather than dramatic hills or valleys. This gentle topography is interrupted occasionally by small creek valleys and drainage ways that flow toward larger river systems in the region. The Big Muddy River system influences some of the local drainage patterns, creating slightly more varied terrain in certain areas.

Agricultural land dominates the landscape, with vast expanses of farmland stretching in all directions from the town. These fields are predominantly flat to gently sloping, having been cultivated for generations and often modified through farming practices to optimize water drainage and soil management. Scattered throughout the agricultural areas are small woodlots and tree lines that follow creek beds and property boundaries, but these forested areas represent a small percentage of the total land cover.

Optimal Areas for Large-Scale Solar Development

The relatively flat agricultural lands surrounding Pinckneyville present excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas would be the expansive crop fields that extend primarily to the north, east, and south of the town. These areas offer several advantages including minimal grading requirements, good accessibility for construction and maintenance equipment, and existing road infrastructure that could support project development.

The gently sloping terrain found in many of these agricultural areas provides natural drainage while maintaining the relatively flat profile ideal for solar panel installation. Fields with southern-facing slopes would be particularly advantageous, as they could maximize solar exposure throughout the day. The consistent elevation and lack of significant topographical barriers mean that shading from terrain features would be minimal across large installations.

Areas near existing electrical transmission infrastructure would be especially attractive for solar development, as they could reduce the costs associated with connecting to the power grid. The flat terrain makes it easier to route new transmission lines if needed, and the agricultural nature of the land often means fewer obstacles for utility corridor development.

The western areas around Pinckneyville also show promise for solar development, though developers would need to carefully evaluate specific sites for any drainage considerations or soil conditions that might affect installation costs. The region's agricultural history means that much of the land has good access roads and is already cleared of trees, reducing preparation costs for solar installations.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
