Plainsboro, New Jersey is a moderately good location for year-round solar energy generation, though it experiences significant seasonal variation typical of the Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output at this location varies considerably throughout the year. Summer provides the highest energy production at 6.02 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 5.44 kWh per day per kW, offering nearly comparable performance to summer months. Autumn sees a notable drop in production to 3.48 kWh per day per kW, while winter presents the most challenging conditions with only 2.14 kWh per day per kW. This winter figure represents less than 40% of summer production, highlighting the significant seasonal challenges faced by solar installations in this region. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 35 degrees facing south. This angle maximizes total annual energy production by accounting for the sun's varying position throughout the seasons.

Environmental and Weather Factors

Several local factors can significantly impact solar energy production in Plainsboro, New Jersey:

• Snow accumulation: Winter snowfall can completely block solar panels, eliminating energy production until cleared
• Ice formation: Ice buildup on panels reduces efficiency and can cause safety hazards during removal
• Frequent cloud cover: New Jersey's climate includes substantial overcast periods, particularly in autumn and winter
• Humidity and haze: Summer humidity can create atmospheric haze that reduces solar irradiance
• Storm damage: The region experiences severe weather including thunderstorms, nor'easters, and occasional hurricanes

Preventative Measures for Better Performance

Several installation strategies can help maximize solar energy production despite these challenges: Installing panels at the optimal 35-degree tilt angle not only maximizes annual production but also helps snow slide off more easily than flatter installations. Ensuring adequate spacing between panel rows prevents shading and allows for maintenance access during winter months. Choosing high-quality mounting systems designed to withstand regional wind loads and snow loads is essential for long-term performance. Anti-reflective coatings on panels can help maintain efficiency during hazy summer conditions. Regular maintenance scheduling becomes particularly important, including pre-winter inspections to ensure secure mounting and post-storm assessments. Having a safe snow removal plan, whether through professional services or proper equipment for accessible installations, can prevent extended winter production losses. Proper electrical system design with optimizers or microinverters can minimize the impact when individual panels are partially shaded by snow or debris, allowing unaffected panels to continue operating at full capacity.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

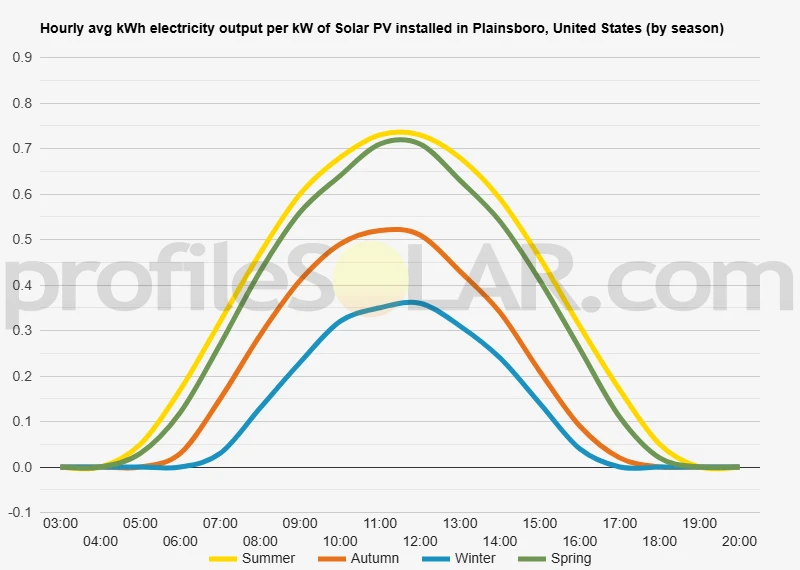

Solar output per kW of installed solar PV by season in Plainsboro

Seasonal solar PV output for Latitude: 40.3334, Longitude: -74.6004 (Plainsboro, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Plainsboro, United States

To maximize your solar PV system's energy output in Plainsboro, United States (Lat/Long 40.3334, -74.6004) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Plainsboro, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Plainsboro, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Plainsboro, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Plainsboro, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Plainsboro, United States

Topography of the Plainsboro Area

The landscape around Plainsboro, New Jersey is characterized by gently rolling terrain typical of the central New Jersey region. This area sits within the Inner Coastal Plain physiographic province, where elevations are generally modest and the topography is relatively subdued. The terrain features low hills interspersed with valleys and flat areas, creating a varied but not dramatically steep landscape. The region's elevation changes are gradual, with most areas ranging from approximately 50 to 200 feet above sea level. The gentle undulations of the land are punctuated by stream valleys and drainage corridors that have carved shallow depressions through the landscape over thousands of years. These waterways, including various tributaries and small creeks, create natural low-lying areas that contrast with the slightly elevated ridges and hilltops. Much of the immediate area around Plainsboro consists of developed suburban communities, office complexes, and residential neighborhoods. However, the broader region still contains significant areas of open space, including preserved lands, agricultural fields, and undeveloped parcels that showcase the natural topographic character of central New Jersey.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Plainsboro vicinity would be the flatter, more expansive open areas that remain undeveloped or are currently used for agriculture. These areas typically offer the best combination of available space, minimal grading requirements, and favorable terrain characteristics for solar array installation. The agricultural lands scattered throughout the region present excellent opportunities for solar development. These areas often feature relatively flat or gently sloping terrain that requires minimal site preparation. The open nature of farmland also means fewer obstacles such as trees or existing structures that could create shading issues for solar panels. Former industrial sites and brownfield locations in the broader area could also serve as prime candidates for solar development. These sites often have the advantage of existing electrical infrastructure and road access, while their previous industrial use may make them less suitable for other types of development. The flat, cleared nature of many industrial sites makes them particularly well-suited for large solar installations. Areas with south-facing slopes would be particularly advantageous for solar installations, as these orientations typically receive optimal sun exposure throughout the day. The gentle topography of the region means that many locations offer favorable slopes without being so steep as to create installation challenges or erosion concerns. Open spaces near major transportation corridors could also prove ideal for solar development, as they often combine suitable topography with good access for construction and maintenance activities. The proximity to existing electrical transmission infrastructure along these corridors can also reduce the costs and complexity of connecting solar installations to the electrical grid.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
