Clayton, Ohio, located in the Northern Temperate Zone at coordinates 39.8631, -84.3605, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the highest production at 6.21 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 5.48 kWh per day per kW, offering nearly comparable output to summer months. Autumn sees a notable decline in production to 3.70 kWh per day per kW, while winter presents the most challenging conditions with only 2.12 kWh per day per kW of installed capacity. This represents a nearly three-fold difference between peak summer and winter production. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 34 degrees facing south. This angle is calculated to maximize total annual production by accounting for the sun's varying position throughout the year and weighting the optimal daily angles by the actual solar energy potential at this latitude.

Local Environmental and Weather Factors

Several environmental and weather conditions common to southwestern Ohio can impact solar energy production in Clayton:

• Snow accumulation: Winter snow can completely block solar panels, eliminating energy production until cleared
• Frequent cloud cover: Ohio's climate includes substantial periods of overcast skies, particularly during autumn and winter months
• Midwest storms: Severe thunderstorms, hail, and high winds can damage panels or create temporary shading from storm debris
• Humidity and haze: Summer humidity can create atmospheric haze that reduces solar irradiance reaching the panels

Preventative Measures for Enhanced Production

To maximize solar energy production despite these challenges, several installation strategies prove effective: Installing panels with adequate spacing allows snow to slide off more easily and prevents one row from shading another during low winter sun angles. Choosing panels with smooth, dark surfaces and proper drainage helps minimize snow retention and ice buildup. Regular maintenance scheduling becomes crucial, particularly for removing debris after storms and ensuring panels remain clean. Installing monitoring systems allows for quick identification of production drops that might indicate snow coverage or damage. Selecting high-quality mounting systems designed for wind loads typical to the Midwest helps protect against storm damage. Additionally, considering microinverters or power optimizers can help maintain production even when some panels are partially shaded or snow-covered. The relatively moderate solar resource at this location means that maximizing system efficiency through proper installation and maintenance becomes even more important for achieving satisfactory returns on solar investment.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

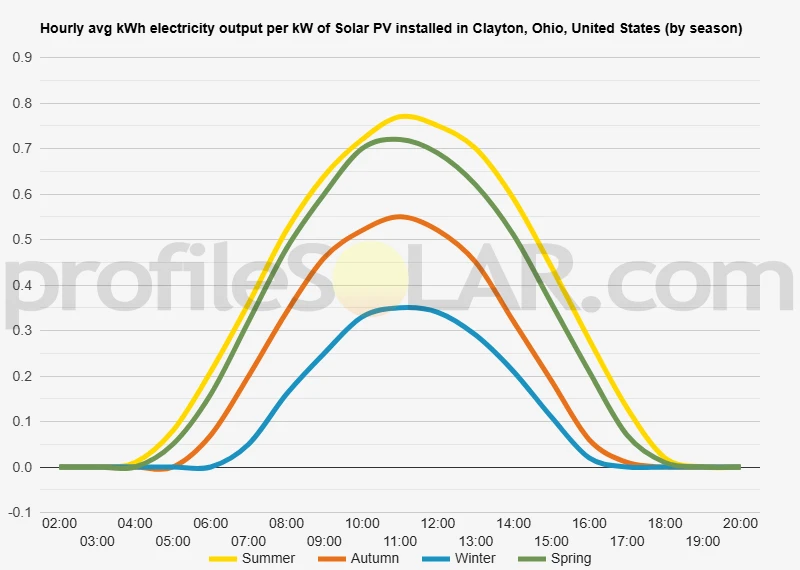

Solar output per kW of installed solar PV by season in Clayton, Ohio

Seasonal solar PV output for Latitude: 39.8631, Longitude: -84.3605 (Clayton, Ohio, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Clayton, Ohio, United States

To maximize your solar PV system's energy output in Clayton, Ohio, United States (Lat/Long 39.8631, -84.3605) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Clayton, Ohio, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Clayton, Ohio, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Clayton, Ohio, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Clayton, Ohio, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Clayton, Ohio, United States

Topographical Features Around Clayton

Clayton, located in southwestern Ohio, sits within the gently rolling landscape characteristic of the Miami Valley region. The area features relatively modest elevation changes, with the terrain gradually undulating across agricultural fields, residential developments, and scattered woodlands. The topography is primarily shaped by glacial activity from thousands of years ago, which left behind fertile soils and a generally level to gently sloping landscape.

The immediate vicinity around Clayton consists of mixed farmland and suburban development, with elevations typically ranging from approximately 800 to 1,000 feet above sea level. The terrain slopes gradually toward the southwest, following the natural drainage patterns that feed into the Great Miami River system located several miles to the west. Small creeks and seasonal waterways create subtle valleys throughout the region, though these features rarely present significant obstacles to development.

The area benefits from relatively stable geology, with bedrock consisting primarily of limestone and shale formations typical of western Ohio. Surface soils are generally well-drained, having been deposited during the retreat of ancient glaciers. This geological foundation provides good support for construction while the gentle slopes facilitate proper drainage across most sites.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for substantial solar installations lie in the open agricultural areas extending north and east of Clayton. These zones offer expansive flat to gently sloping fields with minimal tree coverage and few existing structures that could create shading issues. The agricultural land in this region typically features large continuous parcels that would accommodate utility-scale solar arrays without significant grading or site preparation.

Particularly promising areas include the farmland corridors along the major roads extending northeast toward Trotwood and southeast toward Miamisburg. These locations combine favorable topographical conditions with proximity to existing electrical transmission infrastructure. The gentle southern and southwestern facing slopes in these areas would be especially well-suited for solar panel orientation.

Areas to the west of Clayton, while topographically suitable, tend to have more residential development and smaller land parcels, making them less ideal for large-scale projects. The terrain immediately south of Clayton also presents good opportunities, particularly where agricultural use predominates and the land maintains its characteristic gentle rolling profile.

The region's relatively stable weather patterns and absence of significant elevation changes mean that most potential sites would not face challenges from extreme terrain features, high winds associated with ridge locations, or drainage problems common in areas with steeper topography. This makes the Clayton area generally favorable for solar development from a topographical standpoint, with the primary considerations being land availability and proximity to electrical grid connections rather than terrain limitations.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
