Carlisle, Pennsylvania experiences moderate solar energy potential throughout the year, with significant seasonal variation that makes it a reasonably good but not exceptional location for solar power generation.

Seasonal Solar Performance

The location produces its highest solar output during summer months at 6.10 kWh per day per kW of installed capacity, making this the ideal time for solar energy generation. Spring follows as the second-best season with 5.21 kWh per day per kW, offering strong production as daylight hours increase and weather improves. Autumn sees a notable decline to 3.28 kWh per day per kW as the sun angle decreases and weather patterns change. Winter presents the most challenging conditions with only 2.05 kWh per day per kW, representing about one-third of summer production levels. For optimal year-round performance, solar panels at this location should be installed at a fixed tilt angle of 35 degrees facing south. This angle maximizes total annual energy production by accounting for the sun's varying elevation throughout the seasons.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Carlisle area can significantly impact solar panel performance:

• Snow accumulation during winter months can completely block solar panels
• Ice formation creates both shading and potential structural stress
• Frequent cloud cover and overcast conditions during winter and autumn
• Deciduous tree shading that varies seasonally
• Humidity and atmospheric haze common in Pennsylvania summers

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove effective. Panels should be mounted with adequate spacing from roof edges and obstacles to minimize snow accumulation and allow natural snow shedding. The recommended 35-degree tilt angle helps facilitate snow removal while optimizing sun exposure. Installing panels in areas with minimal tree shading, particularly from mature deciduous trees, prevents seasonal production losses. Regular maintenance scheduling becomes crucial, including pre-winter cleaning and post-storm inspections. Micro-inverters or power optimizers can help minimize the impact when individual panels experience partial shading or snow coverage, allowing unaffected panels to continue operating at full capacity. Proper grounding and structural reinforcement ensure panels withstand ice loading and winter weather conditions common to central Pennsylvania.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

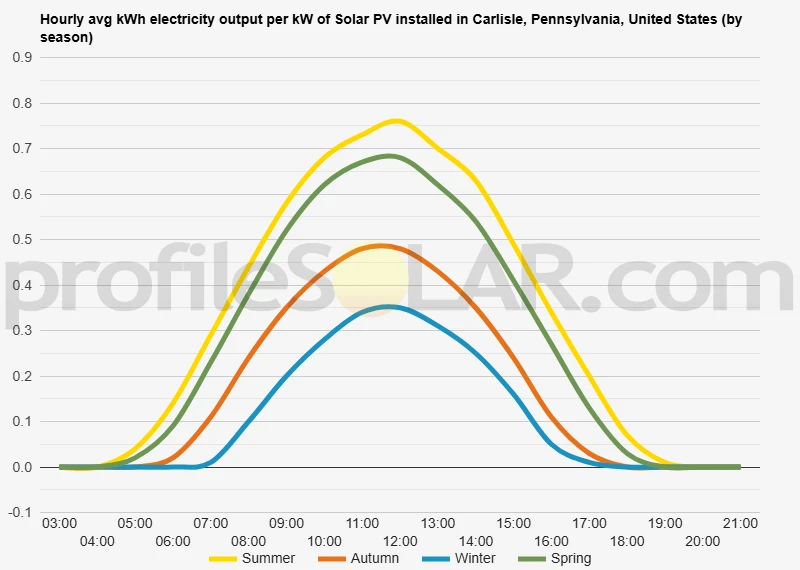

Solar output per kW of installed solar PV by season in Carlisle, Pennsylvania

Seasonal solar PV output for Latitude: 40.2389, Longitude: -77.1935 (Carlisle, Pennsylvania, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Carlisle, Pennsylvania, United States

To maximize your solar PV system's energy output in Carlisle, Pennsylvania, United States (Lat/Long 40.2389, -77.1935) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Carlisle, Pennsylvania, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Carlisle, Pennsylvania, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Carlisle, Pennsylvania, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Carlisle, Pennsylvania, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Carlisle, Pennsylvania, United States

Topography Around Carlisle, Pennsylvania

Carlisle sits in the heart of Pennsylvania's Cumberland Valley, a broad and relatively flat agricultural corridor that stretches between the Blue Ridge Mountains to the south and the Appalachian ridges to the north. This location places the city in one of the most topographically favorable regions in south-central Pennsylvania, characterized by gently rolling farmland and minimal elevation changes across extensive areas.

The Cumberland Valley itself represents a natural depression between mountain ranges, creating an expansive lowland area with elevations typically ranging from 400 to 600 feet above sea level. The terrain consists primarily of fertile agricultural fields, with gentle slopes that rarely exceed five degrees across most of the valley floor. This relatively flat topography extends for miles in multiple directions from Carlisle, interrupted only by occasional low hills and creek valleys that cut modest channels through the landscape.

To the north and northwest of Carlisle, the terrain begins to rise gradually toward the Appalachian ridges, including Blue Mountain and other parallel ridgelines. However, the transition from valley floor to mountain slopes occurs over considerable distances, leaving substantial areas of gently sloping land that remain suitable for large-scale development. Similarly, to the south, the land rises toward South Mountain and the Pennsylvania-Maryland border, but again with gradual transitions that preserve extensive areas of manageable terrain.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations lie primarily to the west and southwest of Carlisle, where the Cumberland Valley reaches its greatest width and flattest configuration. These areas feature extensive agricultural fields with minimal topographic obstacles and excellent southern exposure potential. The western portions of Cumberland County, extending toward the Susquehanna River valley, offer particularly favorable conditions with large contiguous parcels of relatively level ground.

Agricultural areas to the north and northeast of Carlisle also present excellent opportunities, particularly in the broader sections of the valley before the terrain begins its ascent toward the mountain ridges. These locations benefit from the valley's characteristic flat to gently rolling topography while maintaining sufficient distance from residential areas and transportation corridors.

The southeastern areas around Carlisle, extending toward York County, provide additional suitable terrain for solar development. This region maintains the valley's favorable topographic characteristics while offering proximity to electrical transmission infrastructure along major transportation corridors. The combination of flat agricultural land and existing utility access makes these areas particularly attractive for large-scale installations.

Areas immediately south of Carlisle, while still within the Cumberland Valley, begin to show more varied topography as the land approaches the foothills of South Mountain. However, careful site selection in this region can still identify suitable locations with appropriate slope angles and southern exposure, particularly in the broader valley sections between tributary streams.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
